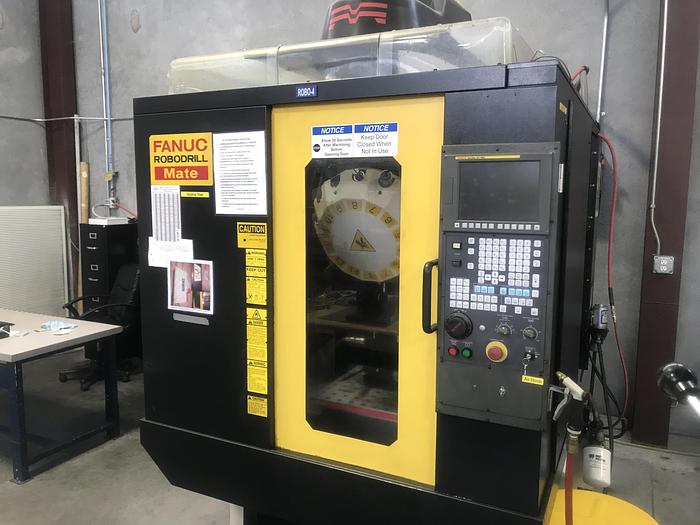

2007 Fanuc RoboDrill 'Mate' Drilling/Tapping Center

Sold

2007 Fanuc RoboDrill 'Mate' Drilling/Tapping Center

Texas

Equipped With

Fanuc 0i-MC Control

Chick Drilled/Tapped Subplate

Misc. Tooling

Specifications

ManufacturerFanuc
ModelMate
Year2007
ConditionUsed
Stock Number3965
Table Size25.59"x15"
Max. Weight on Table440 lbs.
Travels (X-Axis)19.69"
Travels (Y-Axis)14.96"
Travels (Z-Axis)11.81"
Distance from Table to Spindle5.9" - 17.72"
Spindle Speed0 - 10,000 RPM
Spindle Taper30
Tool Capacity14 ATC
Main Motor7.5 kw
Overall Dimensions (approx.)10'6'x7.5'H
Weight (approx.)4,500 lbs.
