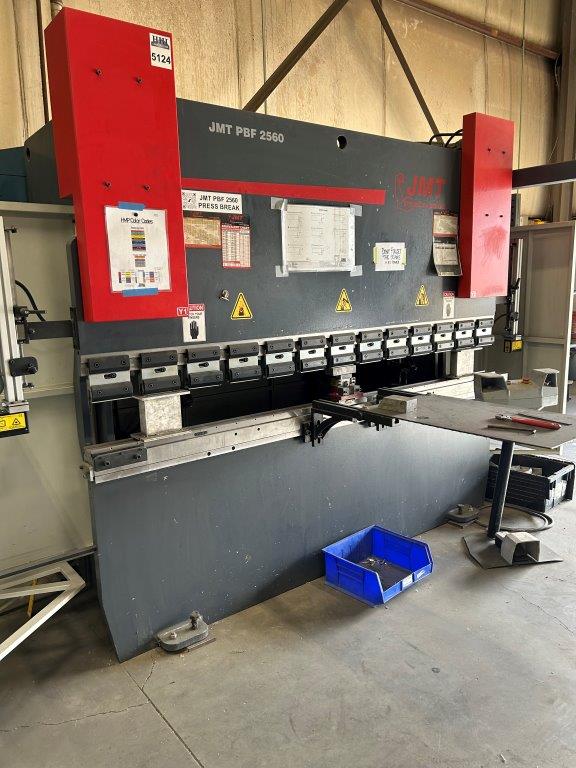

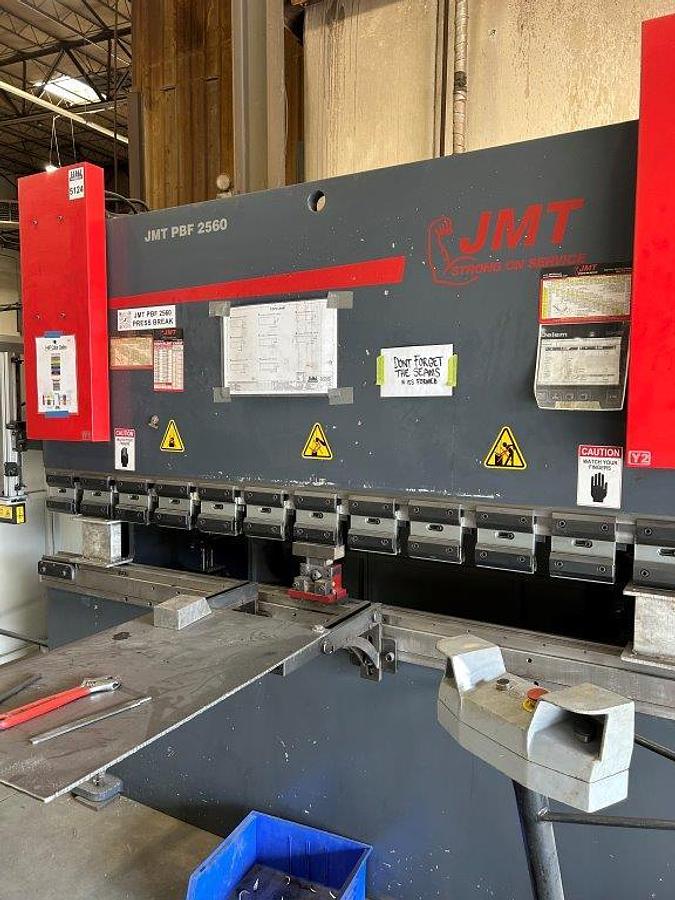

2013 - 66 Ton x 8' Durma/JMT PBF-2560 CNC Press Brake

Equipped With:

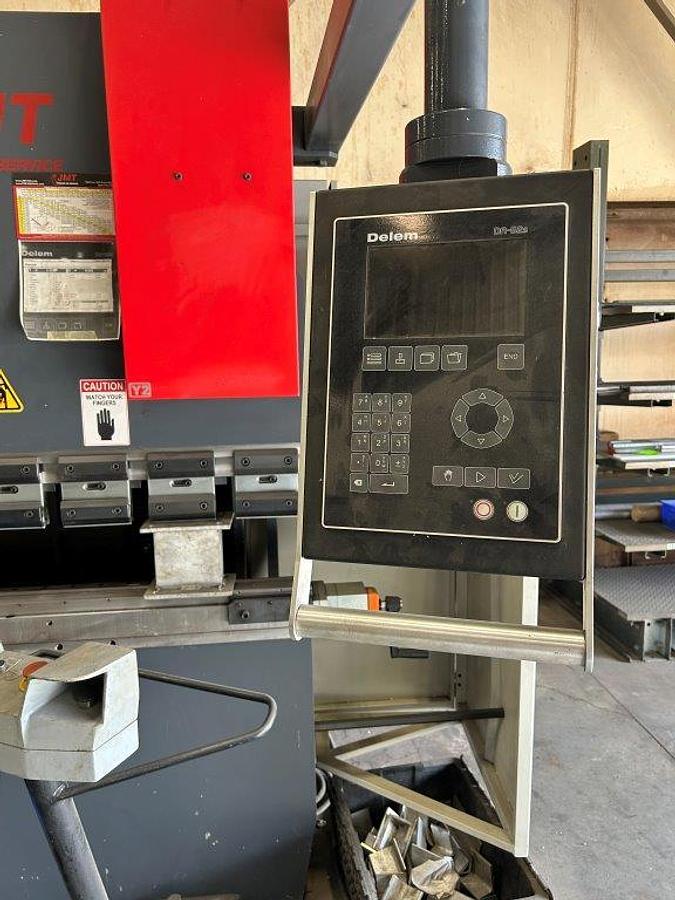

Delem DA-52S Control

X and R axes on BG

Y1 and Y2 on the Ram

Manual Crowning

Akas Light Curtains

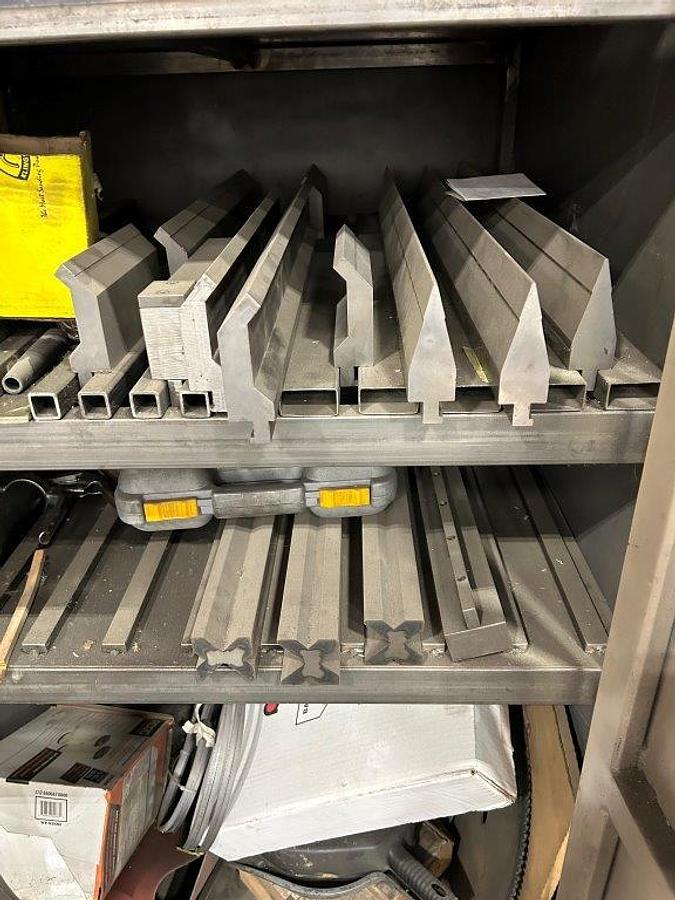

Misc. Tooling (Punches and Dies

The 2013 Durma/JMT PBF-2560 is a CNC press brake featuring a capacity of 66 tons and an 8-foot overall bending length. This machine is equipped with a Delem DA-52S control system and supports X and R axes on the back gauge, as well as Y1 and Y2 axes on the ram. Enhanced precision is provided through its manual crowning and ±0.0004" ram repeatability. Safety is ensured with Akas light curtains, and the machine includes miscellaneous tooling such as punches and dies. With a throat depth of 13.75", the stroke reaches up to 6.3", and an open height of 15.75" allows for versatile operations. The machine's X axis back gauge speed is up to 590 IPM with a travel distance of 17". Programmable features include ram tilt, approach, working, and return speeds, reaching up to 177 IPM, 21 IPM, and 118 IPM respectively. Additionally, the box forming universal wedge clamp height is measured at 5.9". This used press brake is a reliable choice for those looking for precise bending capabilities in a CNC hydraulic model.
