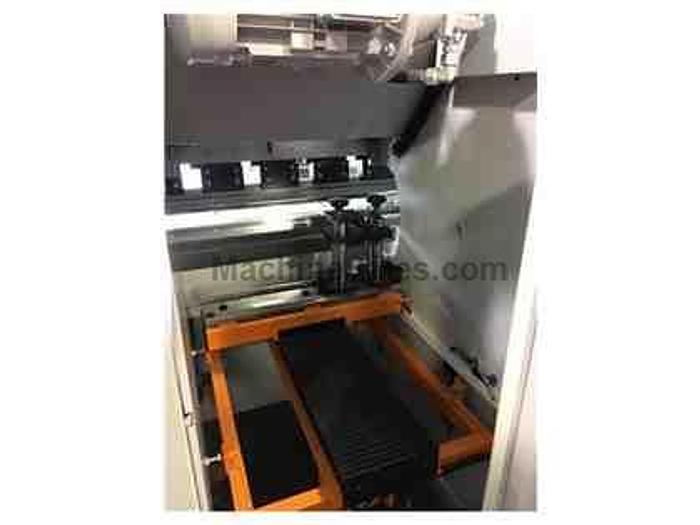

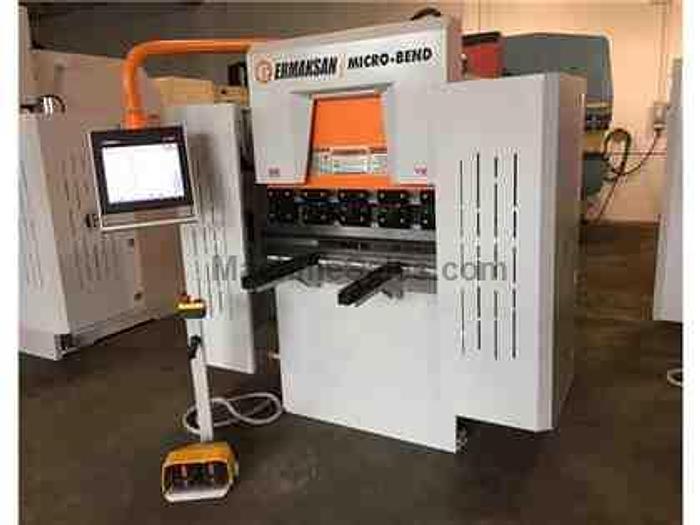

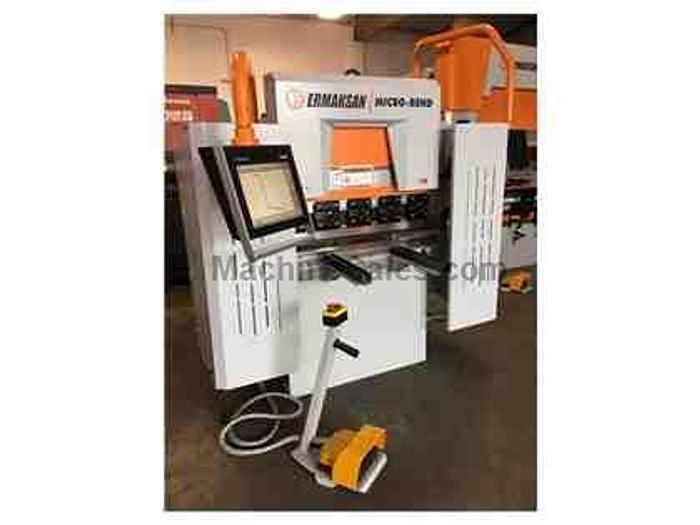

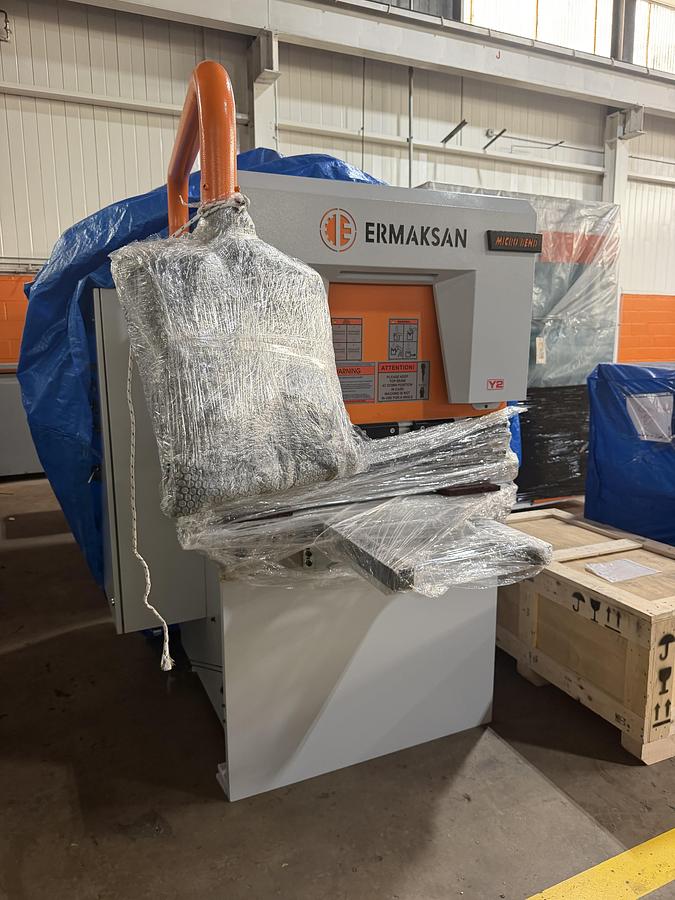

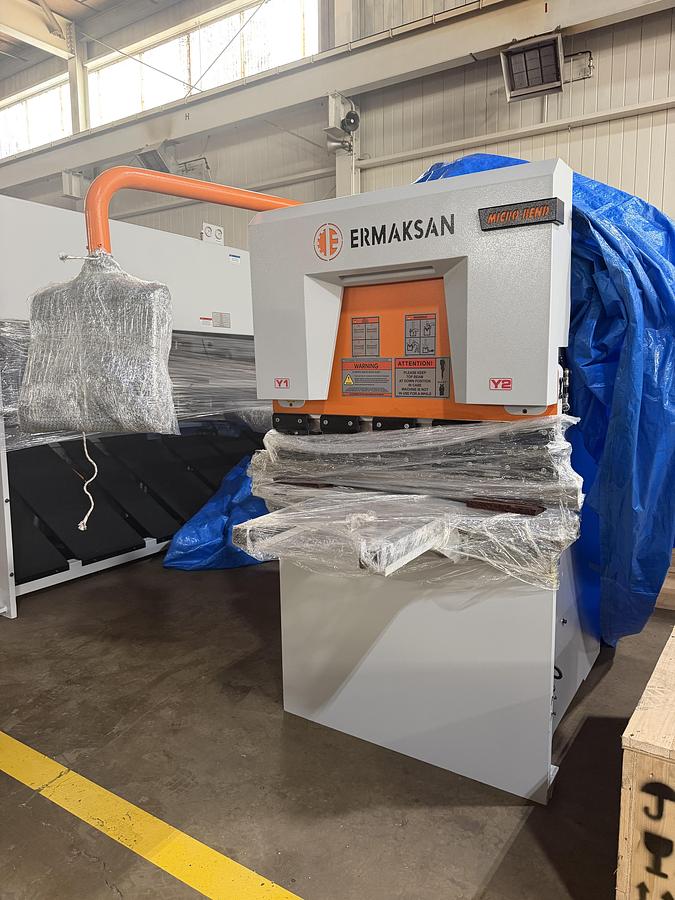

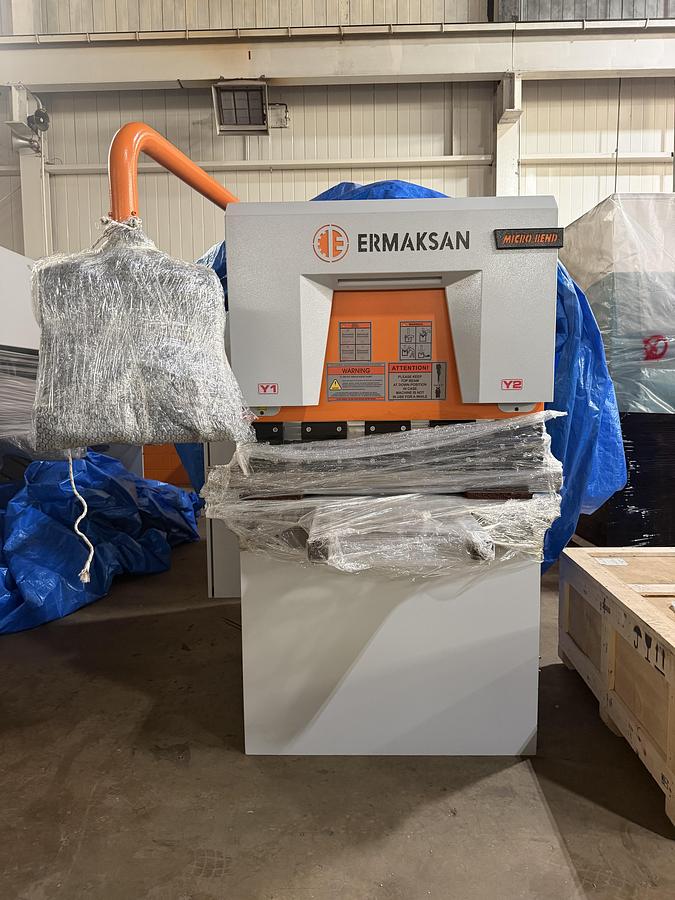

44 Ton x 40" Ermak Micro-Bend Press Brake
44 Ton x 40" Ermak Micro-Bend Press Brake
Location:Chicago, IL
or
Call (714) 545-0940
Description

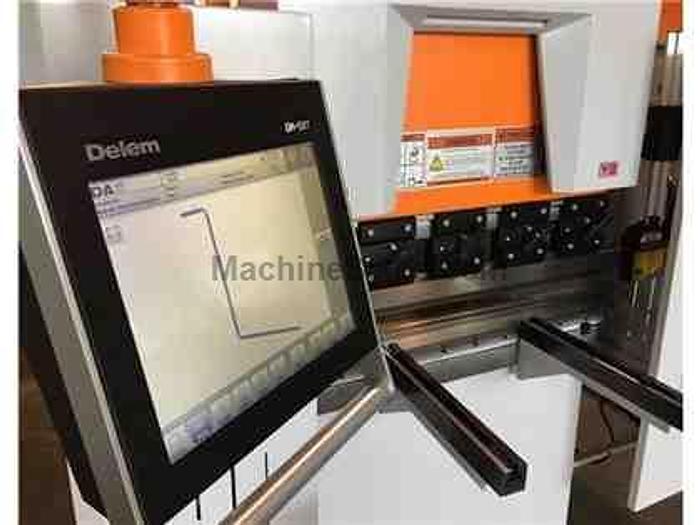

*Delem 53T 2D Touch Screen Control
*3 Axis Machine - X on Back Gauge, Y1 and Y2 on the Ram *AKAS Laser Safety System *Universal Quick Release Punch Holders (Can Accept Both European & American Style Tooling) *Riser Block for American Style Tooling *American Style Tooling Package Including 4-way Bottom Die and Top Punch *Double Foot Pedal *Rear Guard & Switch
Specifications
| Manufacturer | Ermaksan |
| Model | EMB 1000-40 |
| Year | 2026 |
| Condition | New |
| Stock Number | EMB 1000x40 |
| Capacity | 44 Tons |
| Overall Bending Length | 39.4" |
| Distance Between Housings | 31.5" |
| Throat | 9.8" |
| Open Height | 12.1" |
| Stroke | 3.9" |
| Table Height From Floor | 31.5" |
| Approach Speed | 4.3 ips |
| Bending Speed | .4 ips |
| Return Speed | 4.1 ips |
| Back Gauge Travel | 19.7" |
| Main Motor | 5.5 HP |
| Electrical | 460 Volt, 60Hz, 3 PH |
| Dimensions | 91"x77"x73"H |
| Weight (Approx) | 4,100 lbs. |
