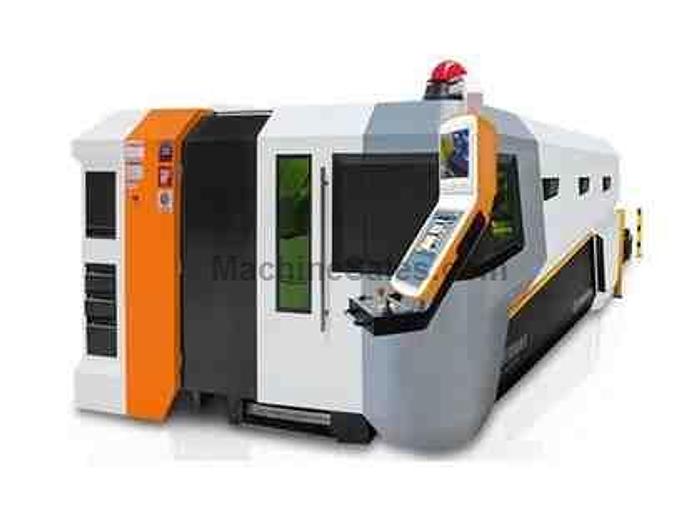

2018 2000 Watt Ermak Fibermak G-Force Fiber Laser Cutting Machine
No longer available
2018 2000 Watt Ermak Fibermak G-Force Fiber Laser Cutting Machine
Santa Ana, CA
Equipped With
Beckhoff CP62 Touch Screen Controller 15" 1024x768 Display
Specifications
Manufacturer | Ermaksan |
Model | Fibermak G Force |
Year | 2018 |
Condition | New |
Stock Number | ERMAK-FML-2K |
X, U Axes | 1.5G |
Wattage | 2000W |
X axis travel | 10' |
Resonator | 2000 Watt |
Power Range | 10 - 105% |
Pulse Frequency Range | 5kHz |
Cutting Capacity (High Quality) Mild Steel | 5/8" |
Stainless Steel | 3/8" |
Aluminum | 5/16" |
Brass | 3/16" |
Copper | 3/16" |
Max. Worksheet Dimensions | 118" x 59" |
Max. Weight | 3307# |
X, U Axes | 1.5G |
Machine Axes | 4-Axes (X,Y,Z,U) |
Y-Axis | 1.5G |
Z-Axis | 2.5G |
Simultaneous | 5551 IPM |
X, Y Single Axis | 3937 IPM |
Positioning Accuracy | +/- .001 |
Repetition Accuracy | +/- .0006 |
Shuttle Table | [2] @ 35 sec |
Cutting Head | Precitec Procutter |
Controller | Beckhoff CP6242 |
CAD/CAM Software | Lantek Expert Cut |
Y-Axis | 1.5G |
Network Connection | Ethernet |
Machine Dimensions | 362"x146"x87"H |
Machine Weight | 25,000# |
Z-Axis | 2.5G |
