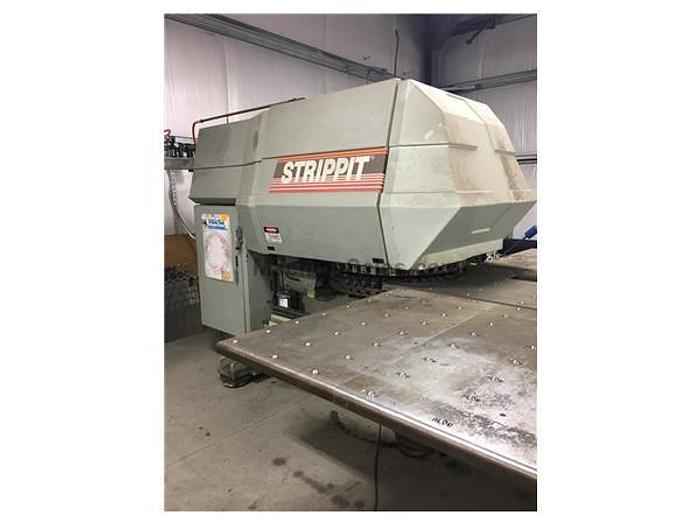

1990 33 Ton Strippit 1250S CNC Turret Punch
No longer available
1990 33 Ton Strippit 1250S CNC Turret Punch
Santa Ana, CA
Equipped With
Fanuc OP Control (3) Auto-Index Stations Ball Transfer Table (2) Work Clamps Misc. Tooling (Punches and Dies)
Specifications
Manufacturer | Strippit |
Model | 1250S |
Year | 1990 |
Condition | Used |
Stock Number | 3327 |
Capacity | 33 Tons |
Max Sheet Size | 50"x80" |
Travels (X-Axis) | 80" |
(Y-Axis) | 50" |
Throat Depth | 50" |
Max Sheet Thickness | 1/4" |
Max Hole Diameter | 3.5" in 10 gauge |
Turret Stations | 33 Station w/ (3) A/I |
Tooling Type | Thin |
Overall Dimensions | 12'x18'x7.5'H |
Weight (approx.) | 31,000 lbs. |
