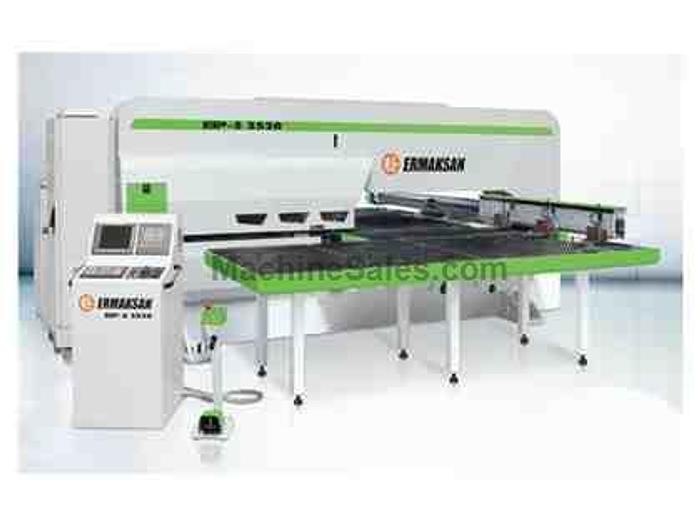

2018 33 Ton Ermaksan Servo Driven CNC Turret Punch

Contact us for price

Santa Ana, CA

orCall (714) 545-0940

Equipped With

Fanuc Control

Specifications

ManufacturerErmaksan
ModelETP 1500x2500
Year2018
ConditionNew
Stock NumberERMAK-SSTP-1500x2500
Tonnage33T
Maximum Sheet Size(w/o repo) 59"x98"
Maximum Hole Size3.5"
X-Axis Travel98" + Repositioning
X-Axis Velocity3149.61 IPM
Y-Axis Travel59"
Y-Axis Velocity3149.61 IPM
Turret Rotation Velocity20 RPM
Auto-Index Rotation Velocity65 RPM
Repitition Accuracy+/- .002
Positioning Accuracy+/- .004
Multi Tool Change Time3 Sec
Max. Sheet Weight440 #
Max. Stroke1.25"
Sheet Clamping Force2645#
Power Supply25kVA
Dimensions218"x197"x88"H
Weight41,000#
