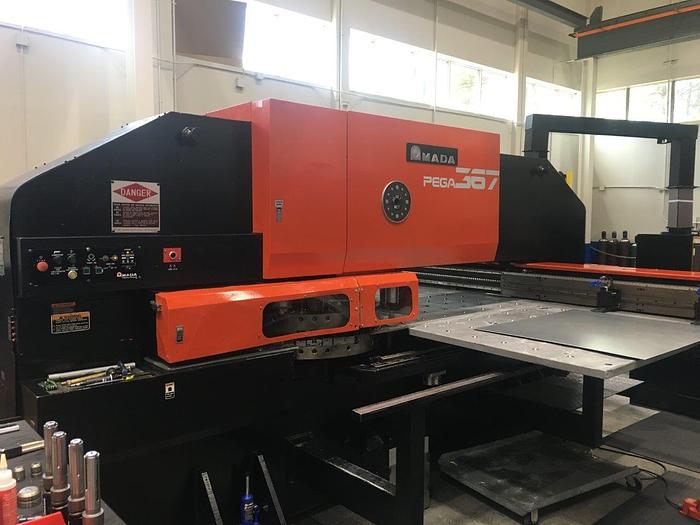

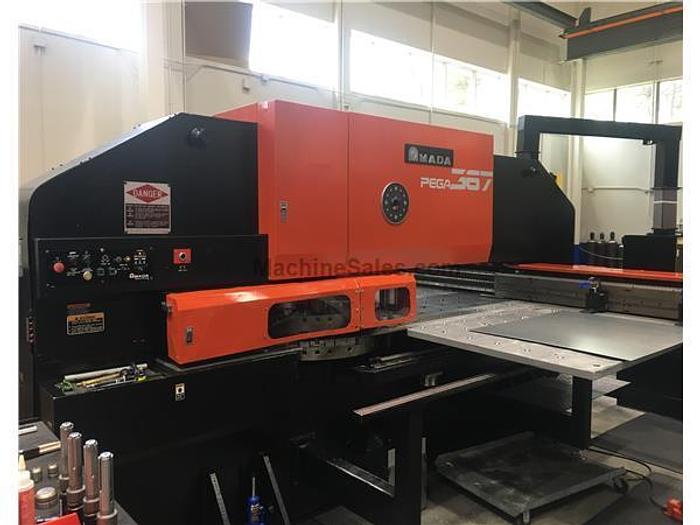

1993 33 Ton Amada Pega 367 CNC Turret Punch
No longer available
1993 33 Ton Amada Pega 367 CNC Turret Punch
Equipped With
Amada 04PC Control 45 Stations (2) Work Clamps Ball Transfer Table
Specifications
| Manufacturer | Amada |
| Model | Pega 367 |
| Year | 1993 |
| Condition | Used |
| Stock Number | 3318 |
| Capacity | 33 Tons |
| Max Hole Diameter | 4.5" |
| Max Sheet Thickness | 1/4" |
| Max Sheet Size | 60 x 144' (w/repo) |
| X Axis | 72" |
| Y Axis | 60" |
| Throat Depth | 60" |
| Turret Stations | 58 w/ [2] A/I |
| Tooling Type | Thick |
| Overall Dimensions | 12'x18'x7.5'H |
| Weight (approx.) | 31,000 lbs. |
