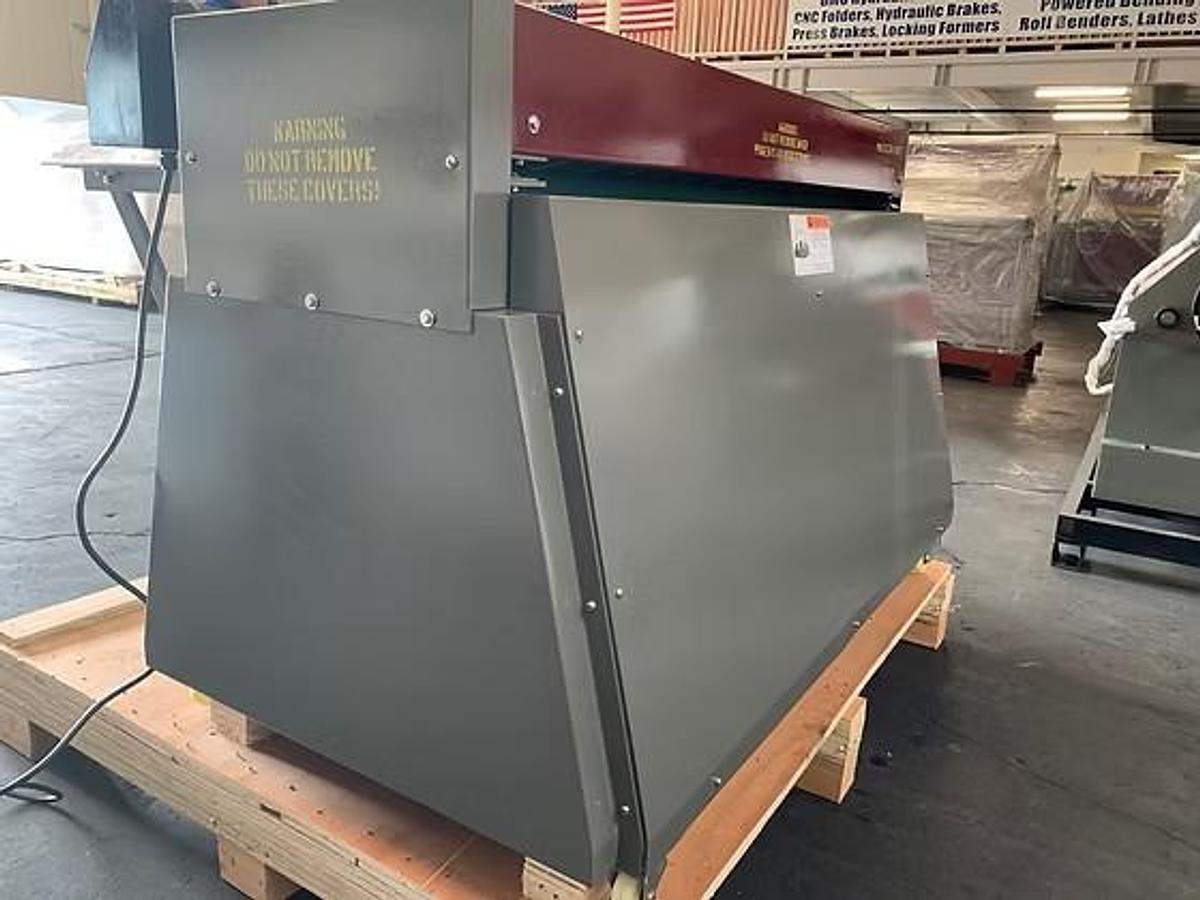

50" x 3 7/8" GMC DFM-20 Diamond Forming Machine
50" x 3 7/8" GMC DFM-20 Diamond Forming Machine
Location:Ontario, Canada
or
Call (714) 545-0940
Description
This machine is ideal for making stainless steel diamond plate patterns for truck doors, catering trucks, kitchens, toolboxes and other decoration applications.
Standard Features:
- ISO 9001 certified
- 1-Year parts only warranty
- Emboss up to 4 foot stainless steel sheet metal x 20 Ga.
- 18” throat depth
- Steel welded framework
- High grade ball bearings

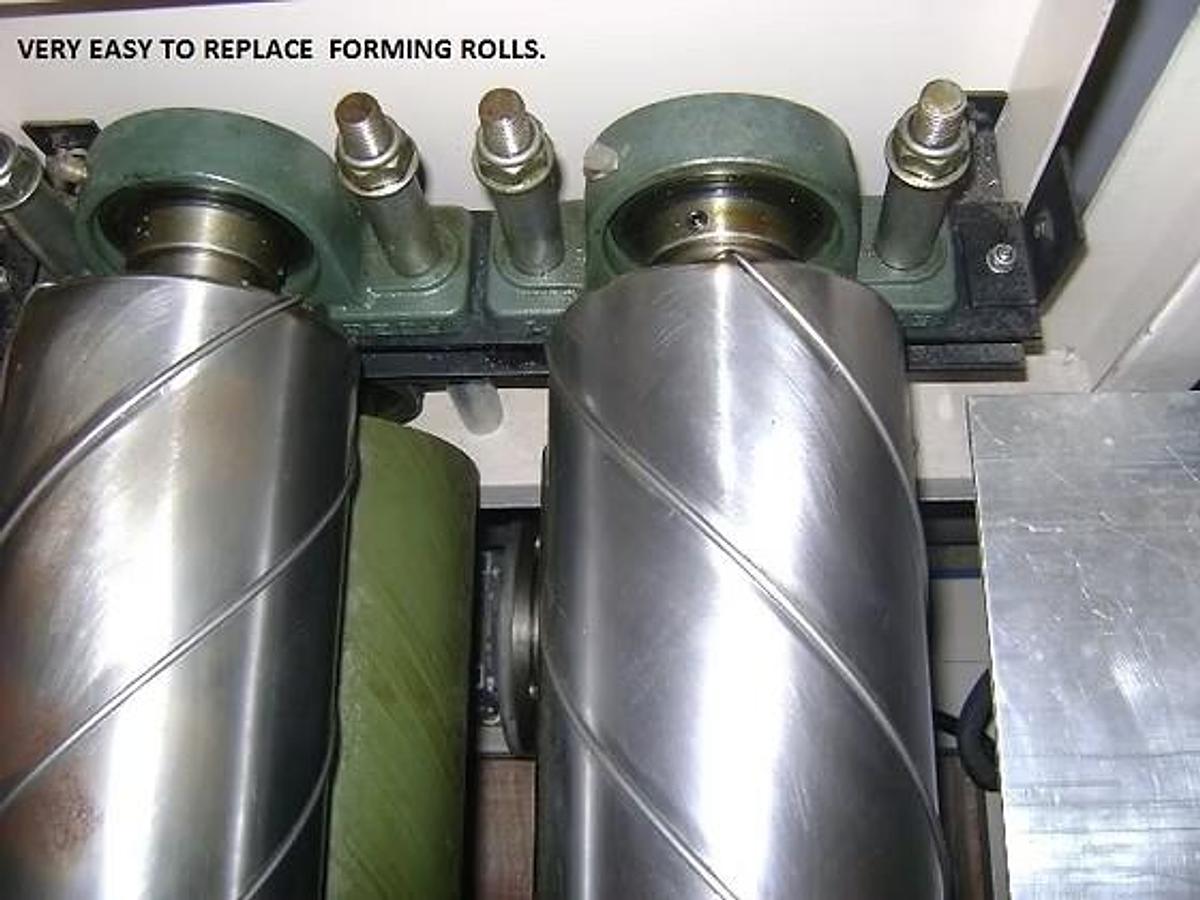

- 2 – Top forming steel rolls
- 2 – Bottom pressure rubber rolls

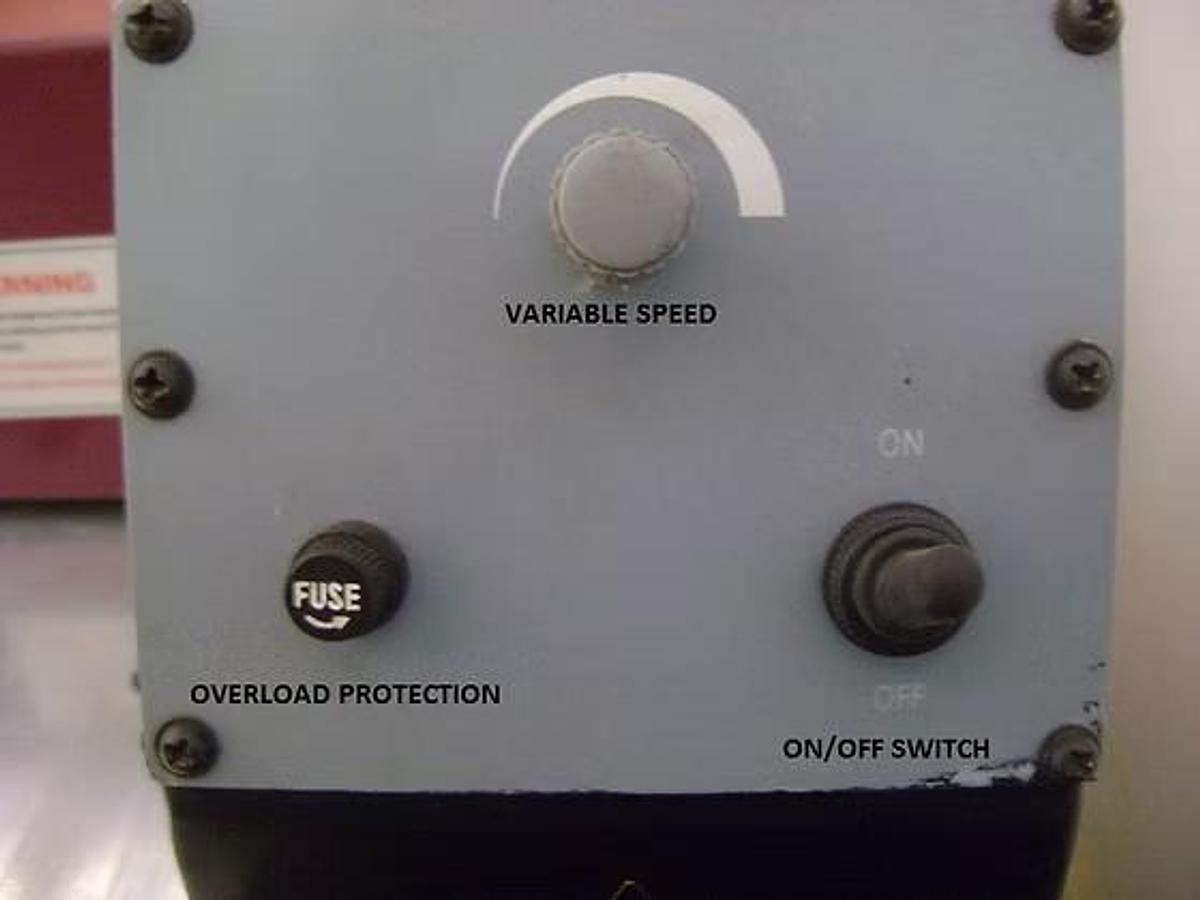

- Variable speed control
- Overload protection fuse
- Infeed table with side gauge
- Easy for one person operation
Optional Equipment:
- 2” x 2” Diamond Pattern ………….. Call for pricing
- 3” x 3” Diamond Pattern ………….. Call for pricing
Specifications
| Manufacturer | GMC |
| Model | DFM-20 |
| Year | 2026 |
| Condition | New |
| Stock Number | DFM20 |
| Capacity (width) | 50" (4' sheets) |
| Diamond Size | 3 7/8" x 3 7/8" |
| Max Material Thickness | 20 Ga. |
| Variable Speed | 9 - 16 RPM |
| Motor | 2 HP, 110V, 60 HZ |
| Machine Weight | 1,650 lbs. |
| Dimensions | 63" x 53" x 43" |
