2017 Haas TM-2 CNC 'Tool Room' Vertical Mill
No longer available

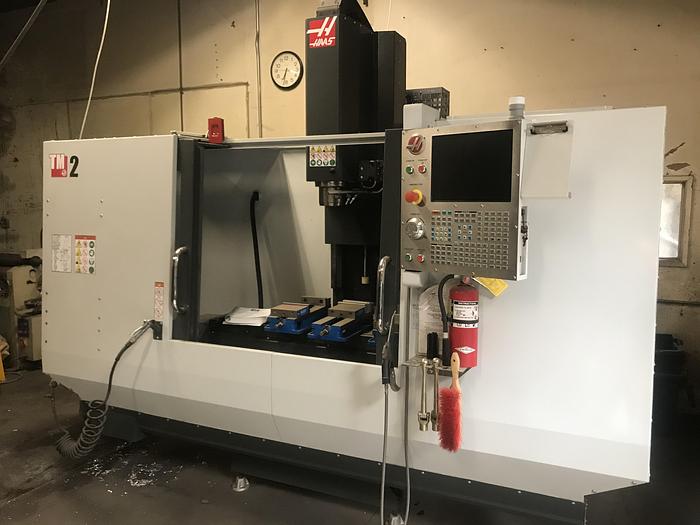

2017 Haas TM-2 CNC 'Tool Room' Vertical Mill
Equipped With
Haas Control
Misc. 40 Taper Toolholders
Specifications
| Manufacturer | Haas |
| Model | TM-2 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 3916 |
| Table Size | 10.5"x58" |
| Maximum Weight on Table | 1,000 lbs. |
| Travels (X-Axis) | 40" |
| Travels(Y-Axis) | 16" |
| Travels(Z-Axis) | 16" |
| Spindle Nose to Table (min/max) | 4"/20" |
| Spindle Taper | 40 |
| Spindle Speed | 4000 RPM |
| Main Motor | 7.5 HP |
| Dimensions (approx.) | 9'x6'x8'H |
| Weight (approx.) | 5,500 lbs. |
