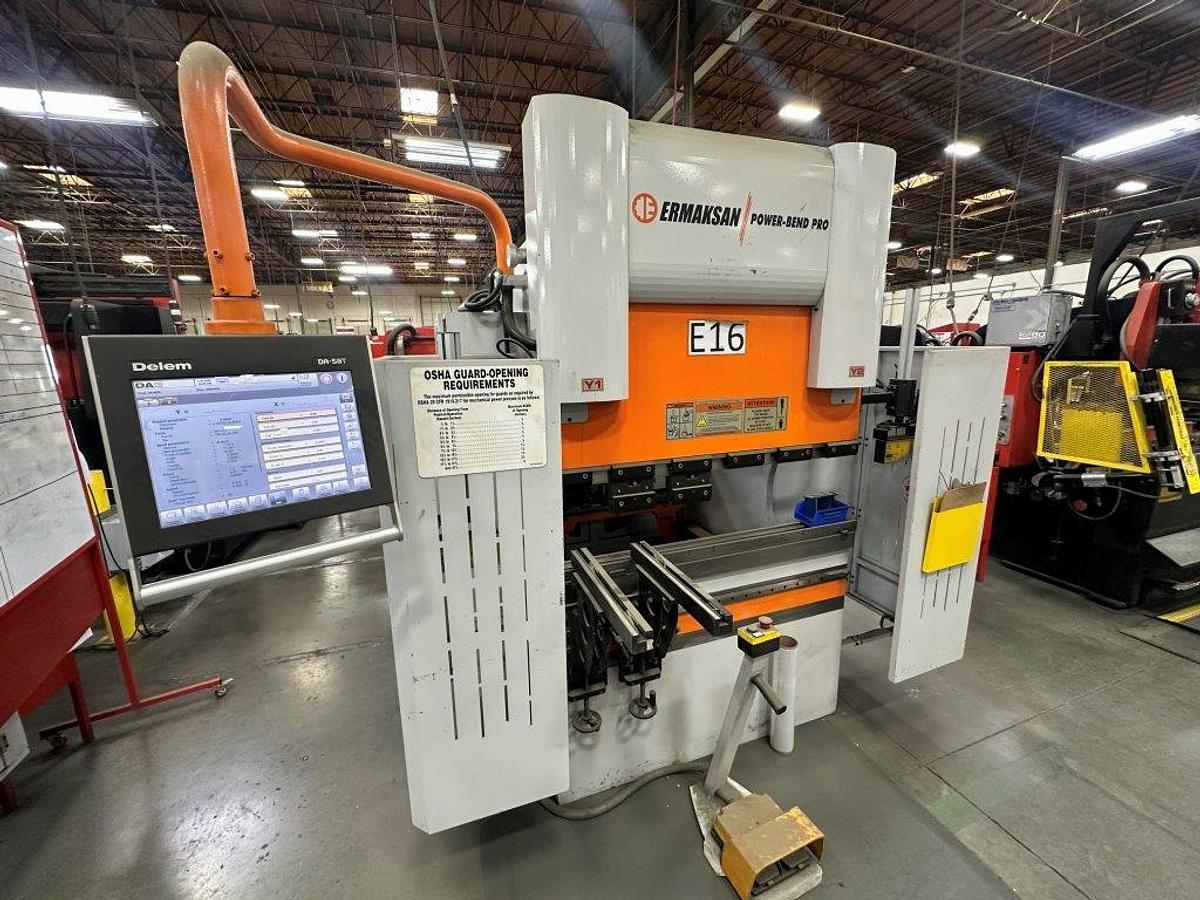

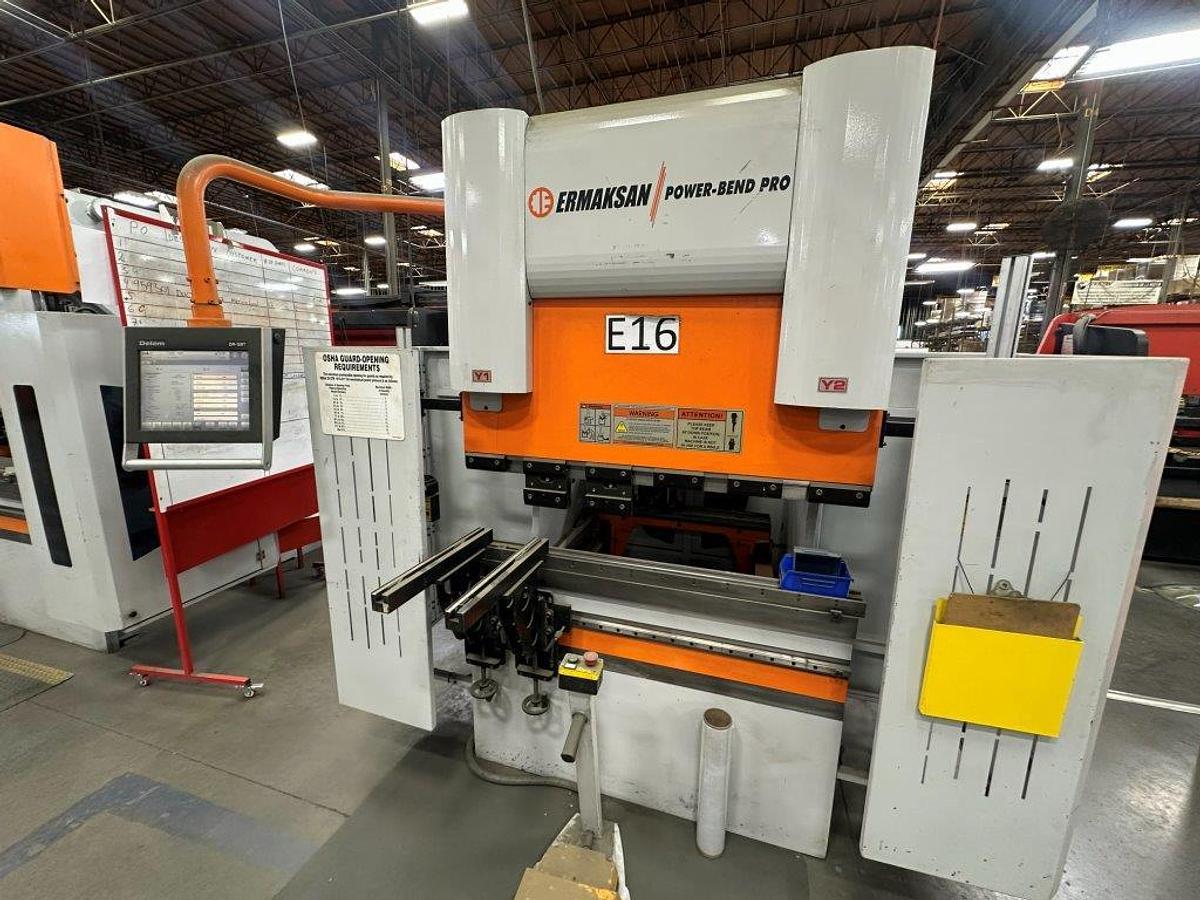

2016 - 44 Ton x 4' Ermak Power Bend Pro CNC Press Brake
2016 - 44 Ton x 4' Ermak Power Bend Pro CNC Press Brake
Location:California
or
Call (714) 545-0940
Equipped With
Equipped with:

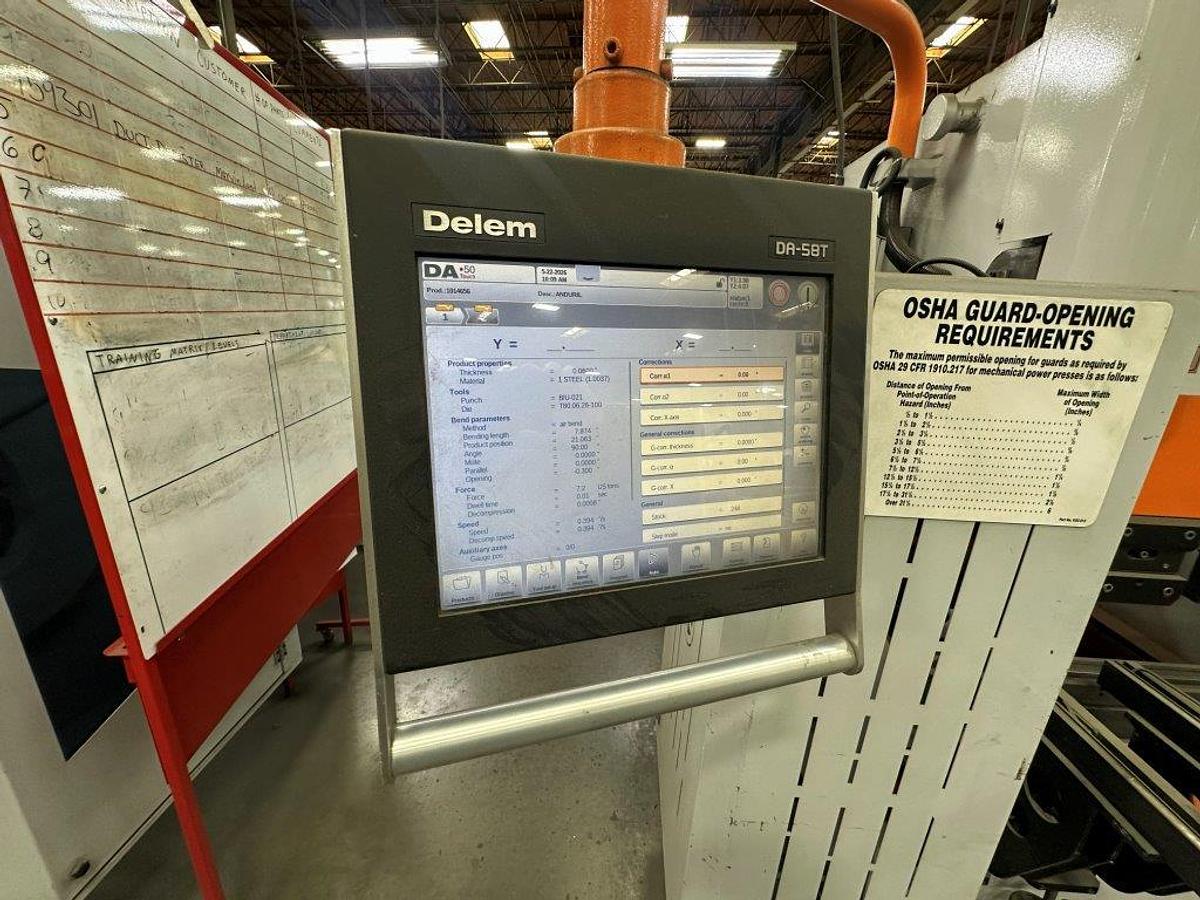

Delem 58T Touchscreen Control
3 Finger Stops
X and R axes on back gauge
Akas Light Curtains
Misc. Tooling
2 Front Support Arms
Foot Pedal
Specifications
| Manufacturer | Ermaksan |
| Model | PB-PRO 1270-40F |
| Year | 2016 |
| Condition | Used |
| Stock Number | 13251 |
| Capacity | 44 Tons |
| Overal Bending Length | 49.7" |
| Distance Between Columns | 39.4" |
| Throat | 13.8" |
| Daylight | 15.2" |
| Stroke | 6.7" |
| Approach Speed | 5.51 IPS |
| Bending Speed | .67 IPS |
| Return Speed | 6.69 IPS |
| Electrical | 230-460V, 60Hz, 3 PH |
| Dimensions (Approx) | 7'x5'x7.5'H |
| Weight (Approx) | 7,100 lbs |
