1984 - 88 Ton Amada RG-80S CNC Press Brake

Equipped with:

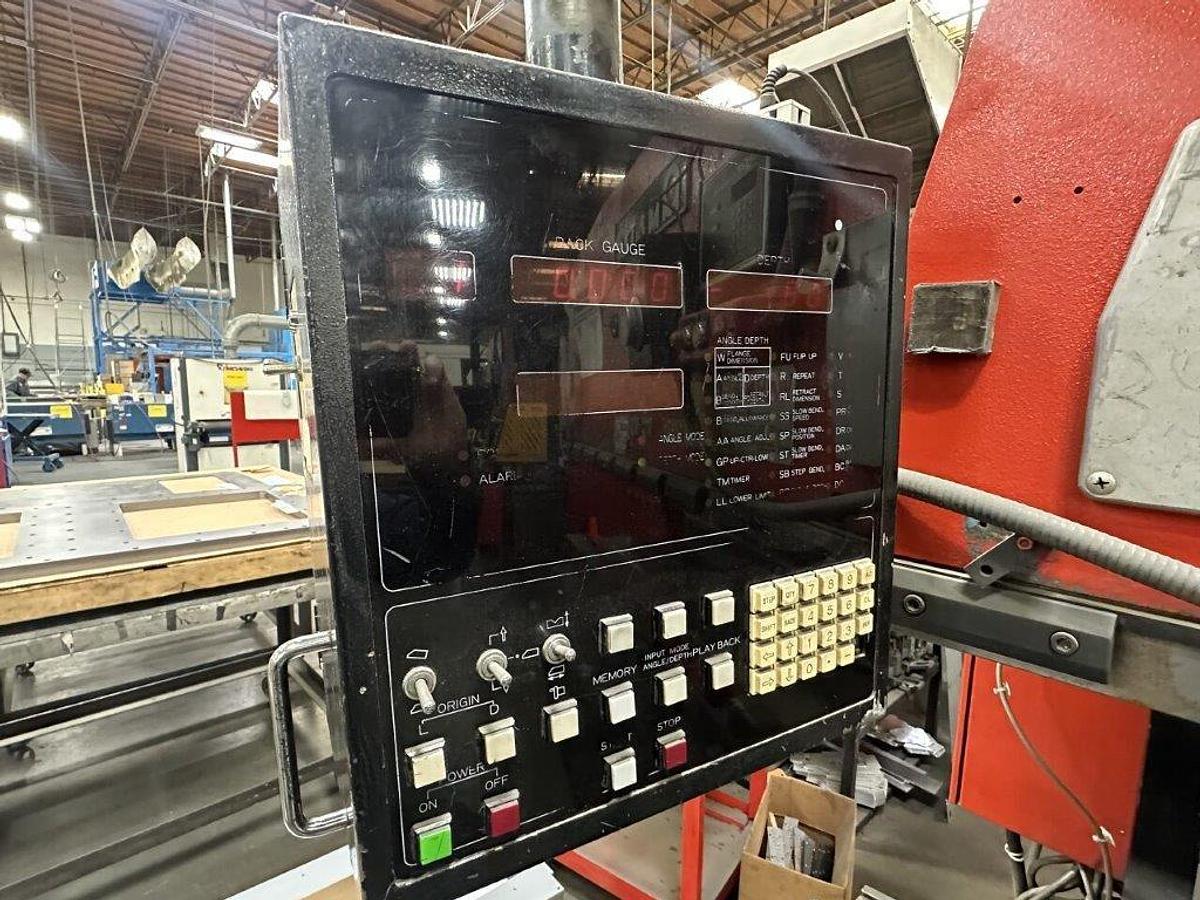

NC-9EX Control

Manual Pulse Handwheel

2 Finger Stops

Misc Punch Holders

Light Curtains

Foot Treadle

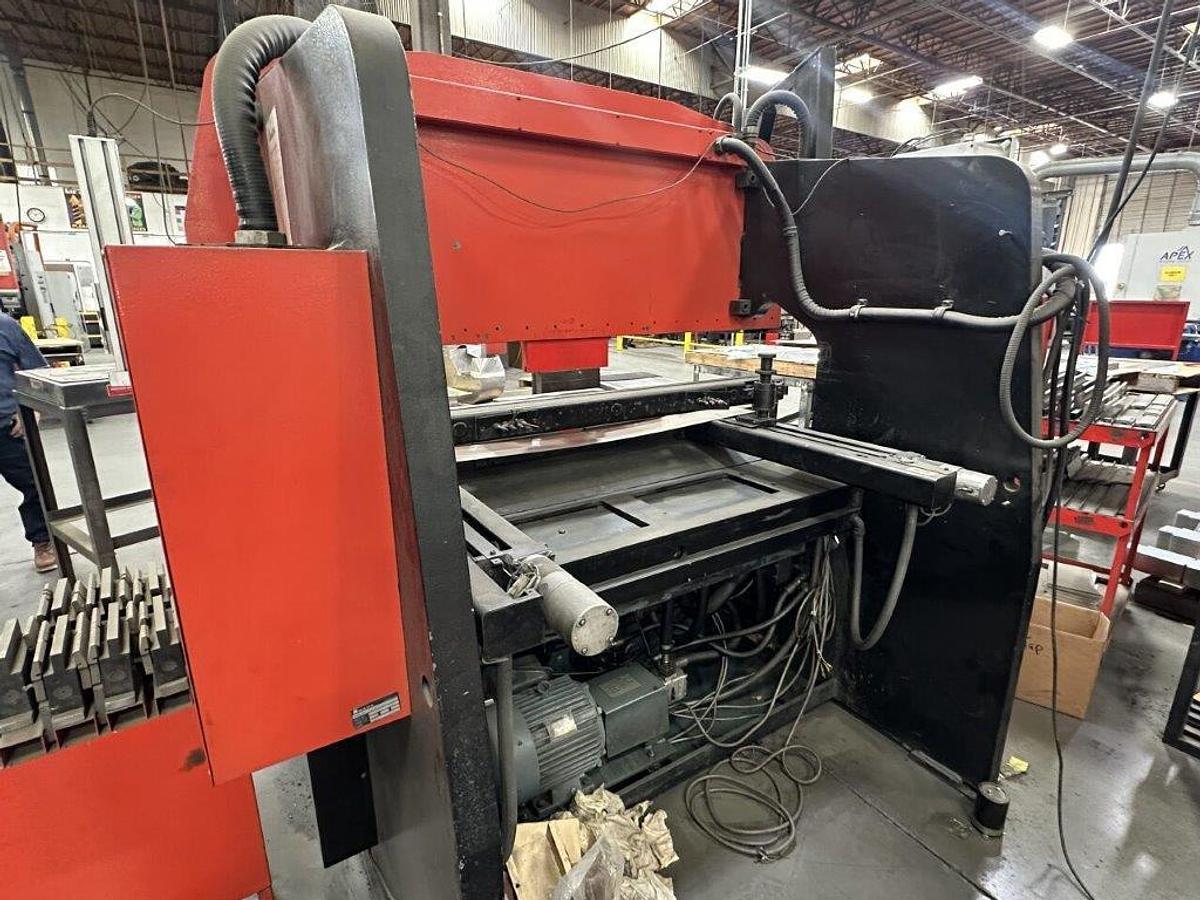

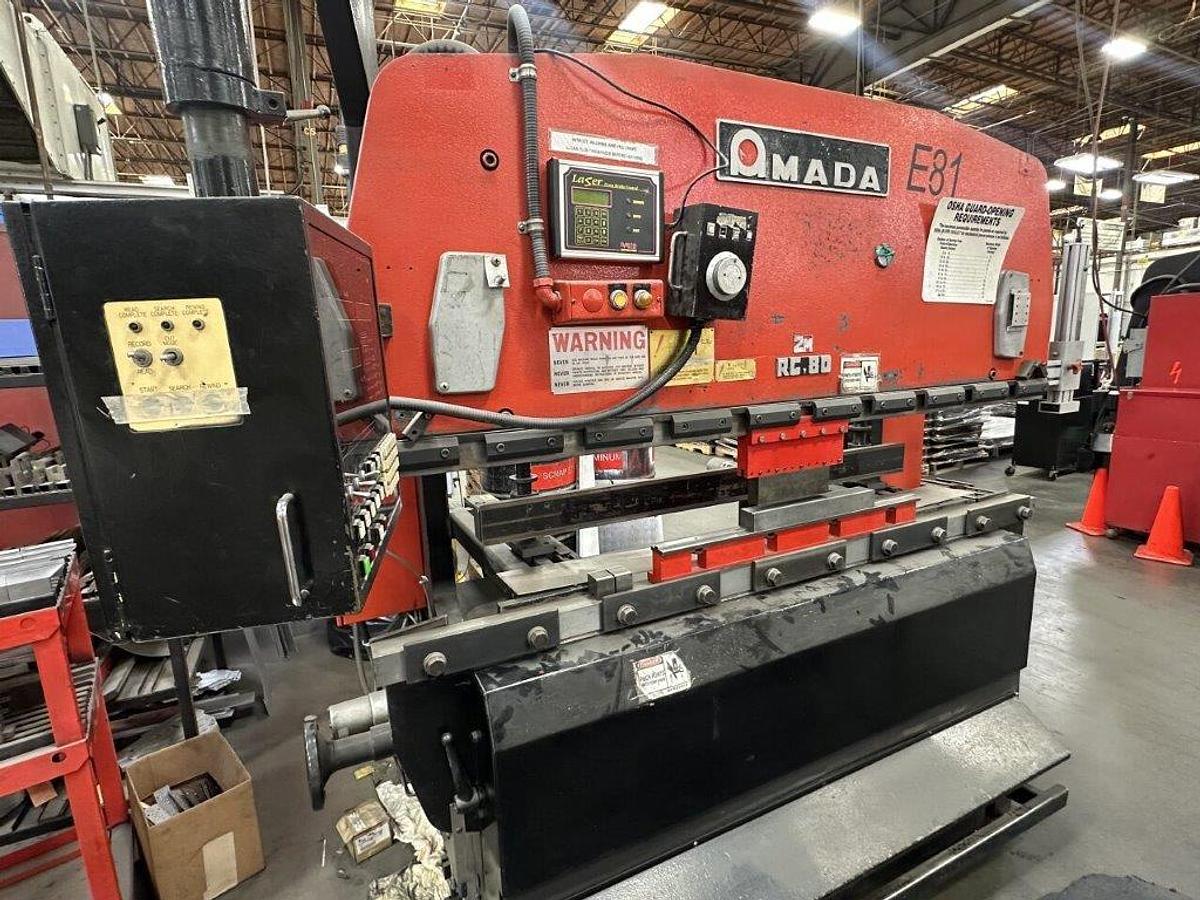

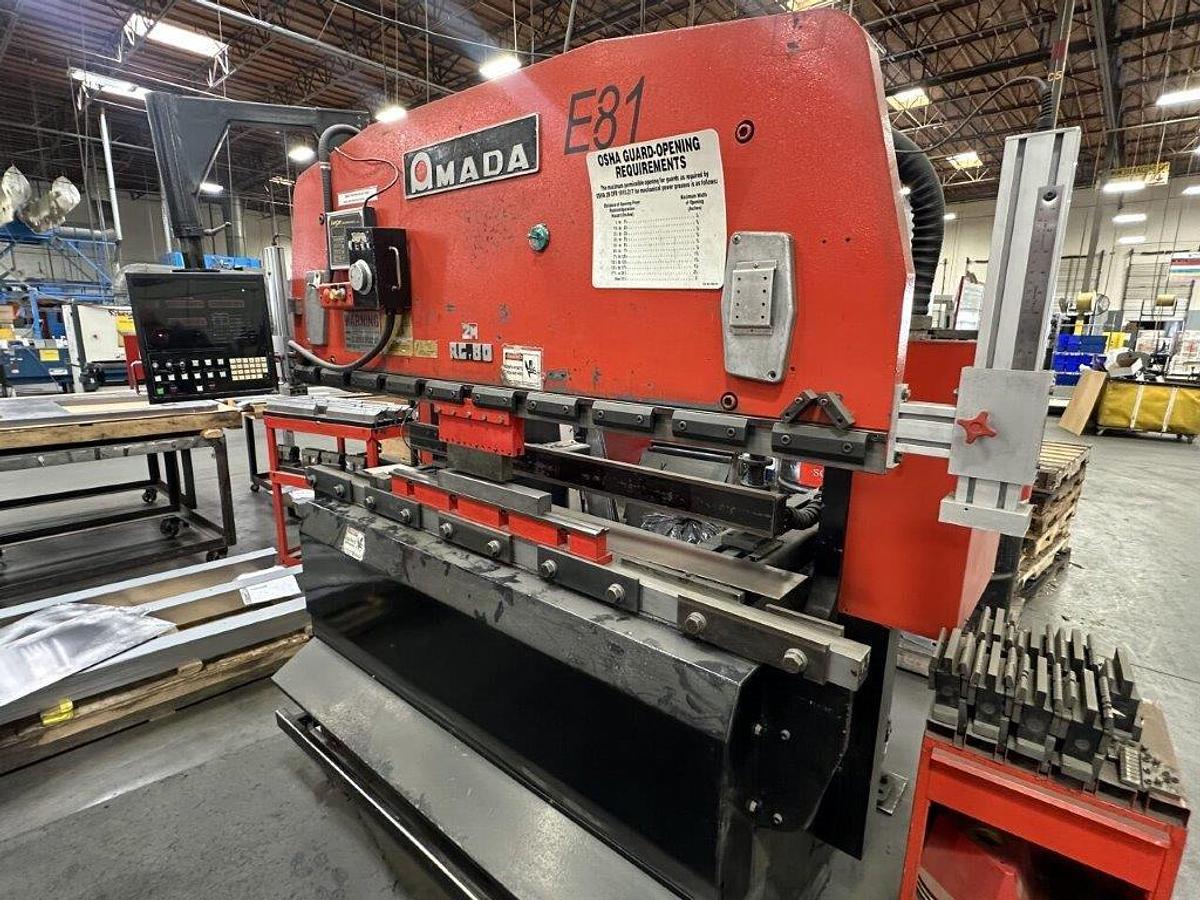

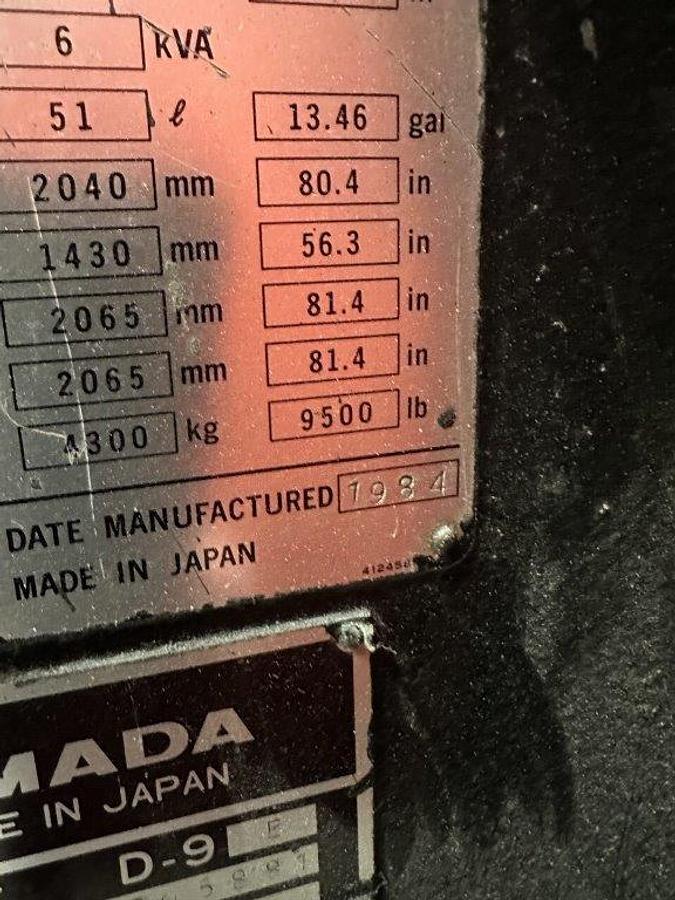

The Amada RG-80S is a used hydraulic CNC press brake that delivers a capacity of 88 tons and features a bending length of 80 inches. This model is equipped with an NC-9EX control, providing precise adjustments through a manual pulse handwheel. Additionally, it includes two finger stops, various punch holders, light curtains for enhanced safety, and a foot treadle for convenient operation. With a stroke length of 3.9 inches, the press brake can handle a range of bending tasks. The open height measures 14.57 inches, while the shut height is 10.67 inches, allowing for varied material accommodation. The throat depth reaches 15.7 inches, providing ample space for intricate operations. The machine's overall dimensions are 80.4 inches in width, 56.3 inches in depth, and 80.6 inches in height, with an approximate weight of 9500 lbs. This model's robust construction and sophisticated controls make it a reliable choice for precision metalworking tasks, ensuring consistent performance in an industrial setting.
