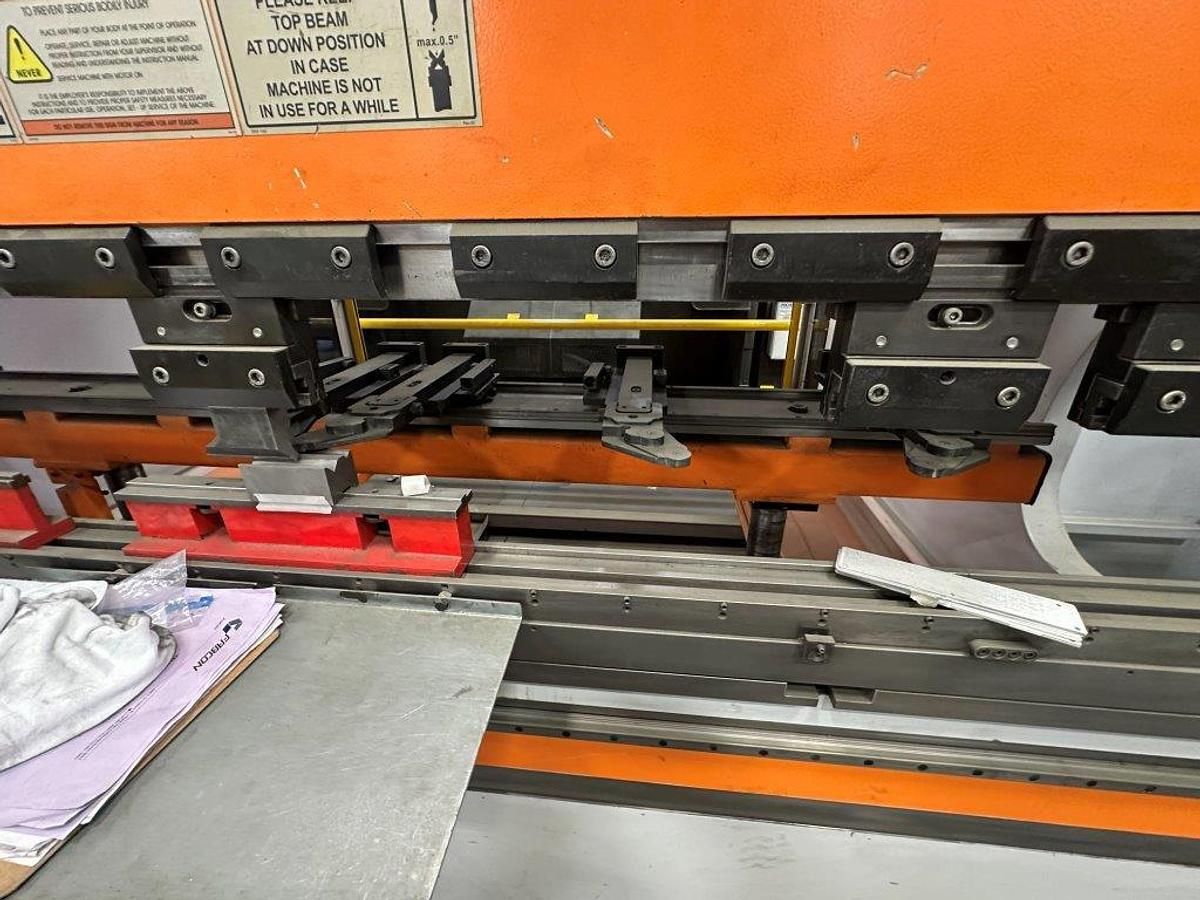

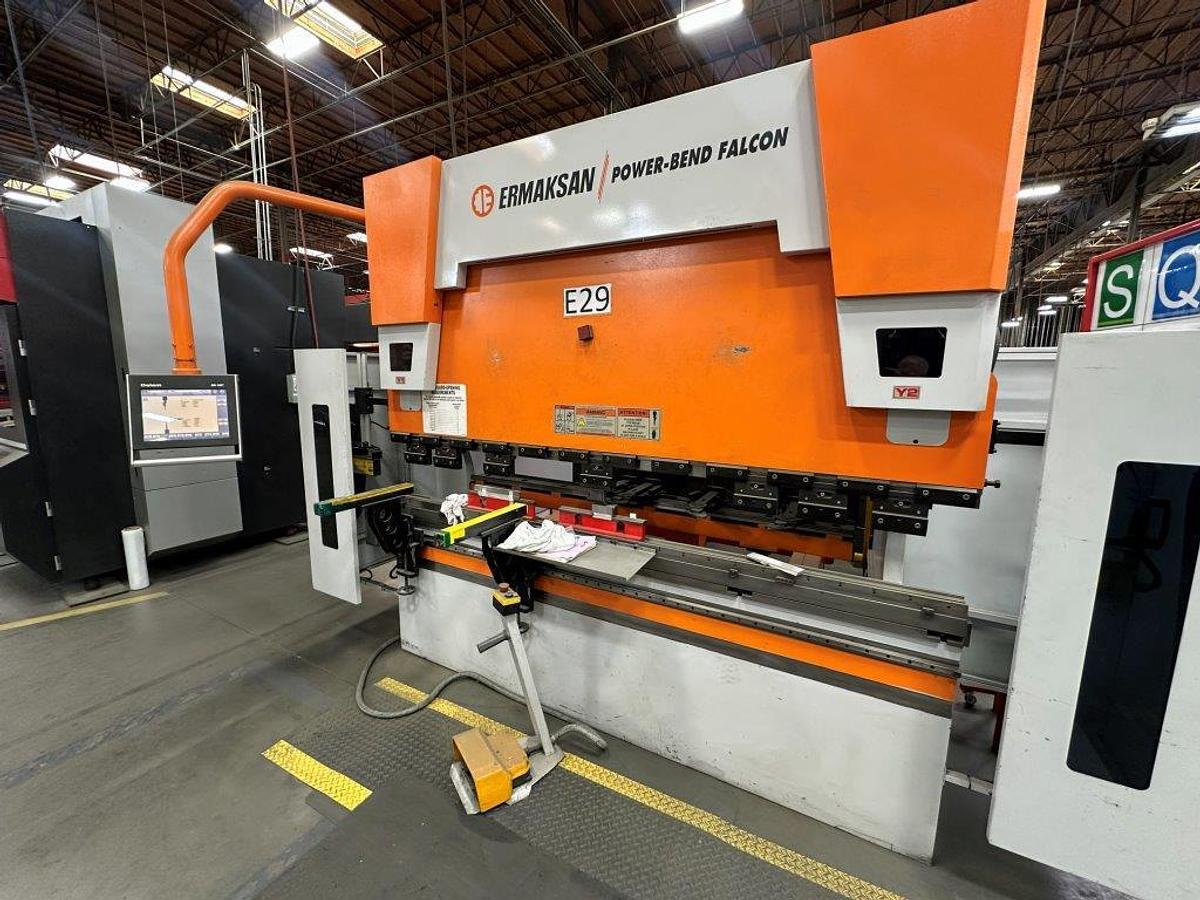

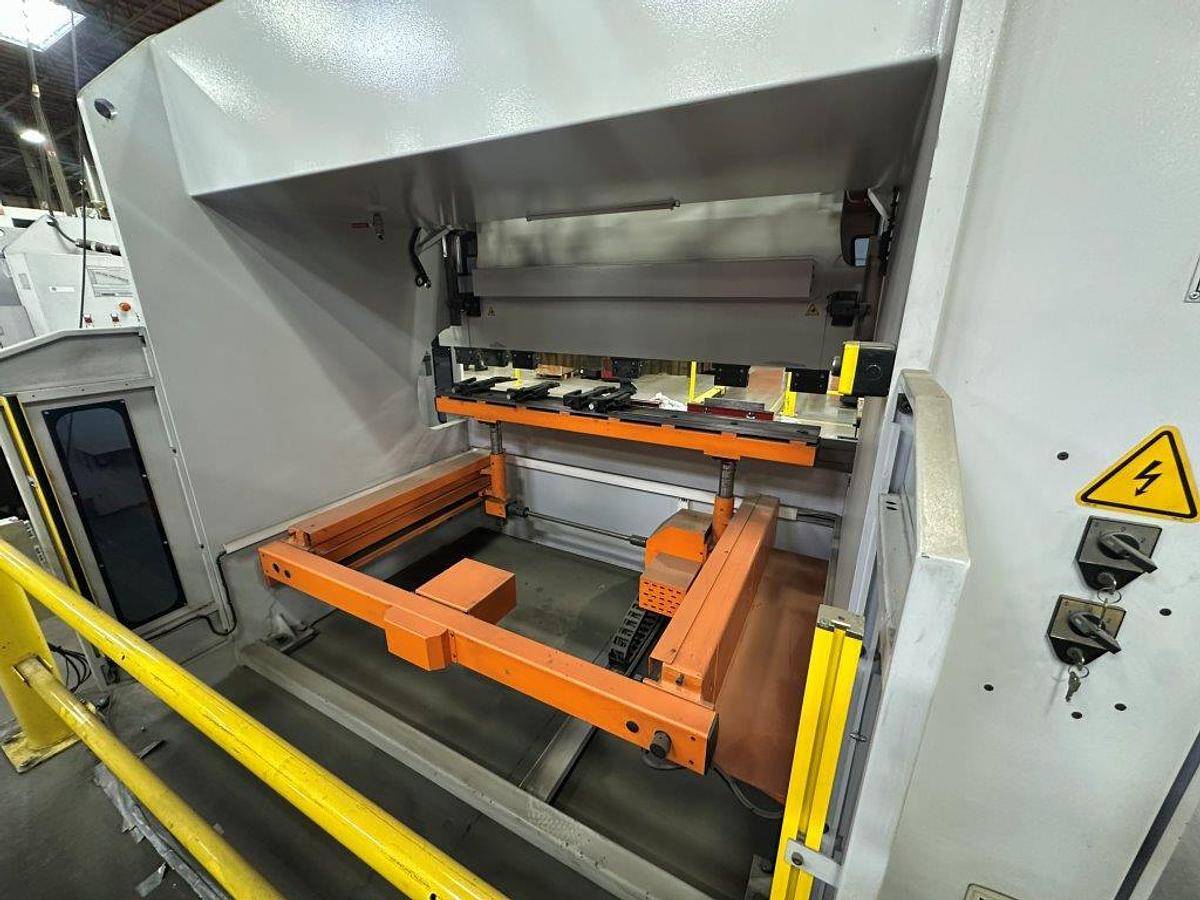

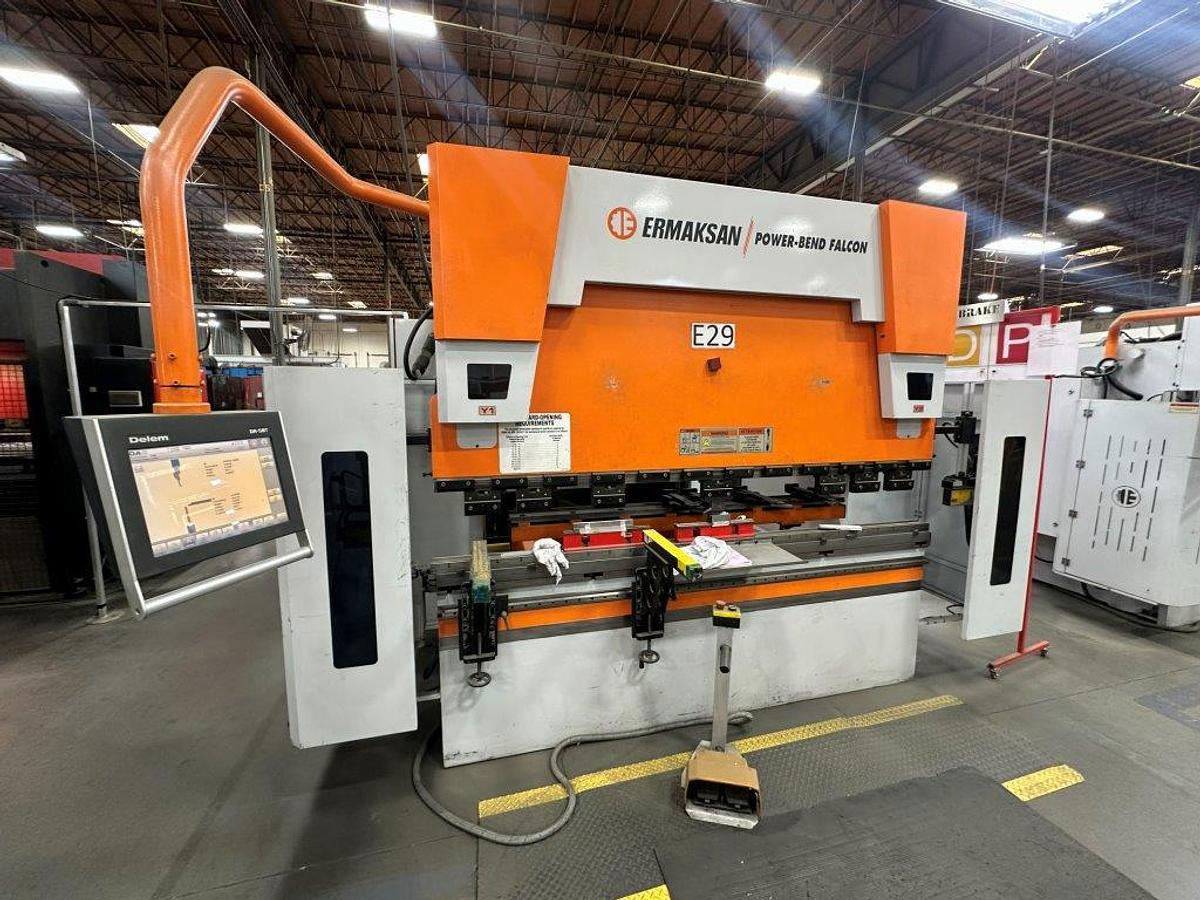

110 Ton x 8.5' Ermak Power Bend Falcon CNC Press Brake
110 Ton x 8.5' Ermak Power Bend Falcon CNC Press Brake
Location:California
or
Call (714) 545-0940
Equipped With
Equipped with:

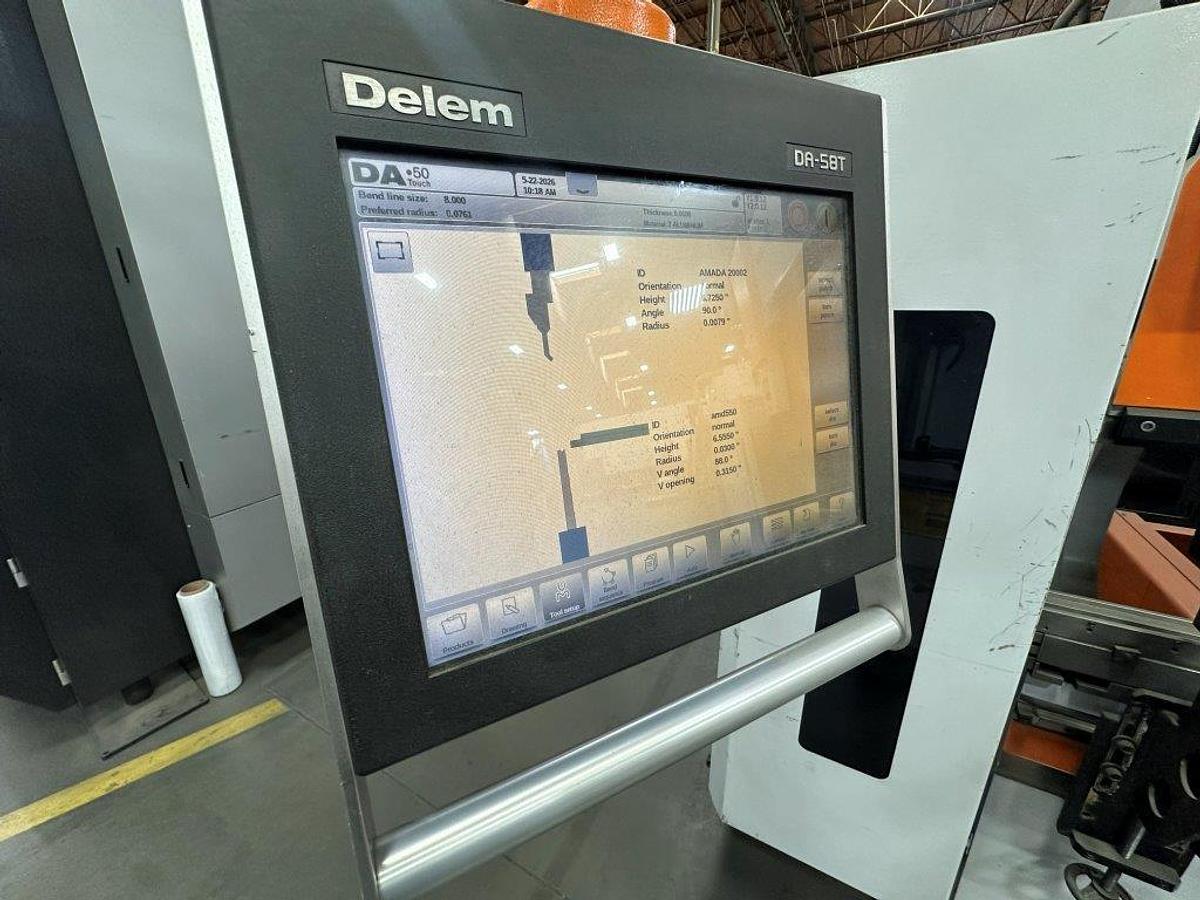

Delem 58-T CNC Touch Control
3 Finger Stops
X and R axes on back gauge
CNC Crowning
Akas Light Curtains
Misc. Tooling
Foot Pedal
Specifications
| Manufacturer | Ermaksan |
| Model | PBF 2600-100 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 13249 |
| Capacity | 110 Tons |
| Overall Bending Length | 102" |
| Distance Between Columns | 86.6" |
| Throat | 16.1" |
| Daylight | 20.9" |
| Stroke | 10.8" |
| Approach Speed | 7.87 IPS |
| Bending Speed | .37 IPS |
| Return Speed | 6.10 IPS |
| Back Gauge Travel | 31.5" |
| Back Gauge Speed | 9.1 IPS |
| Dimensions | 147 x 80 x 110"H |
| Weight | 15,200 Lbs. |
