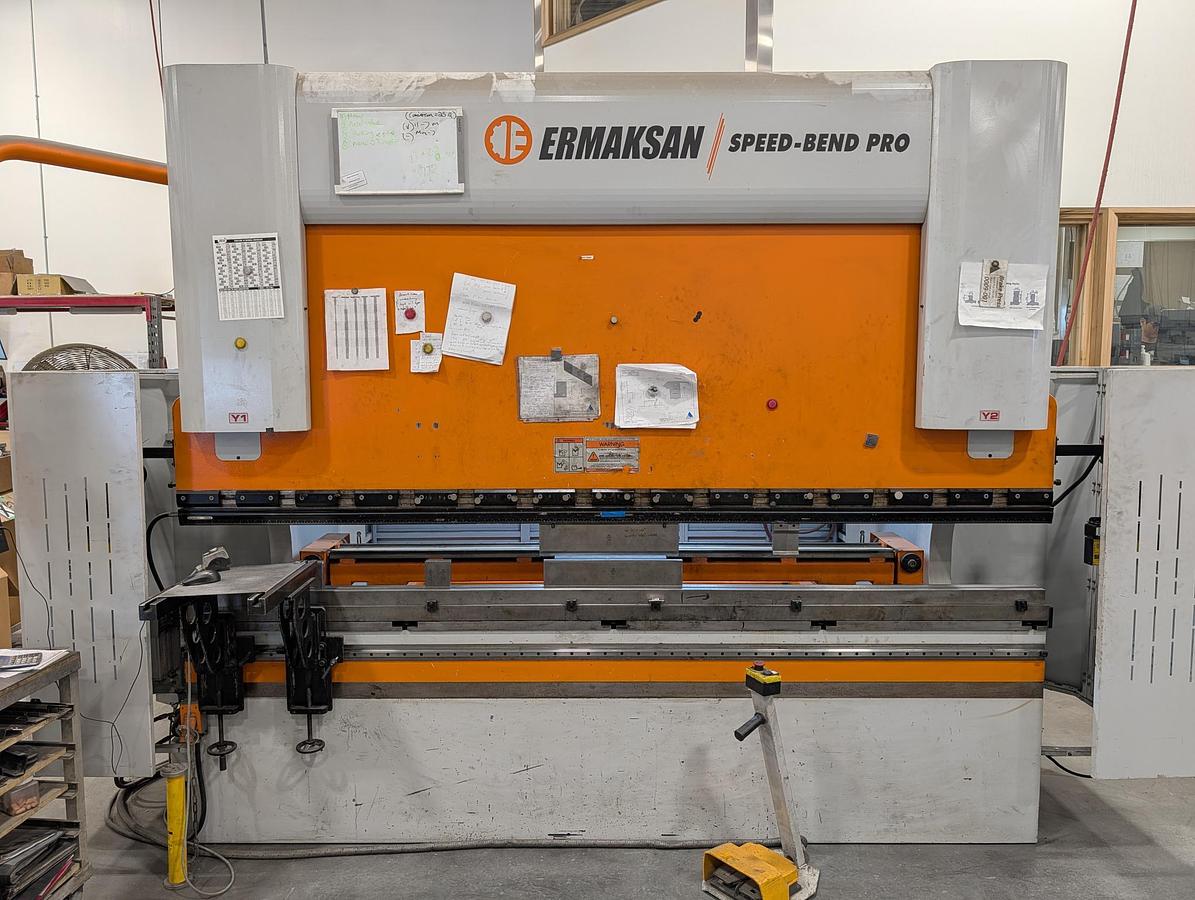

2015 - 149 Ton x 10' Ermak Speed Bend CNC Press Brake
2015 - 149 Ton x 10' Ermak Speed Bend CNC Press Brake
Location:Toronto, Canada
or
Call (714) 545-0940
Equipped With
Equipped with:

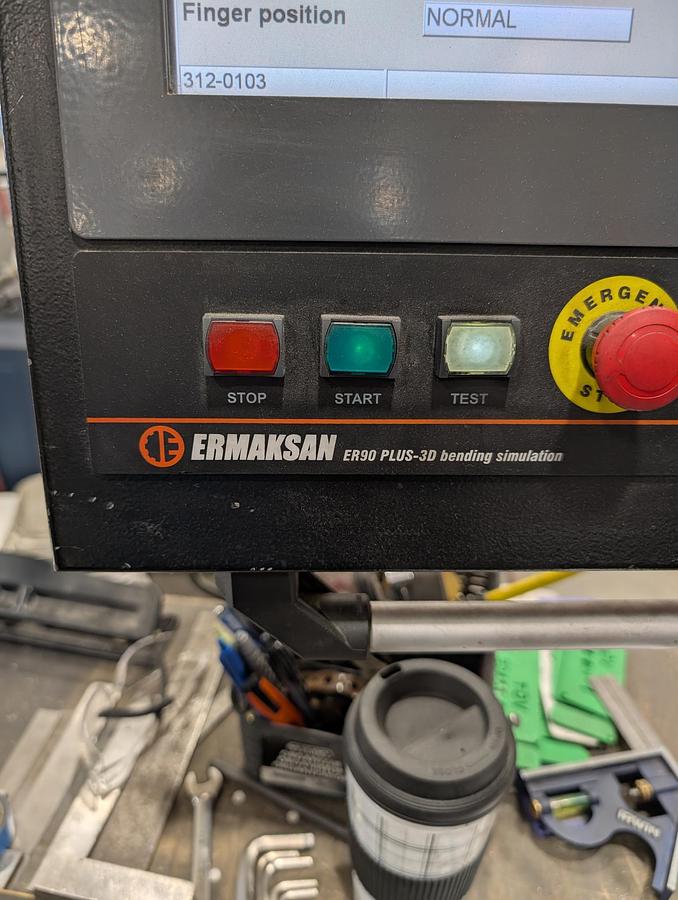

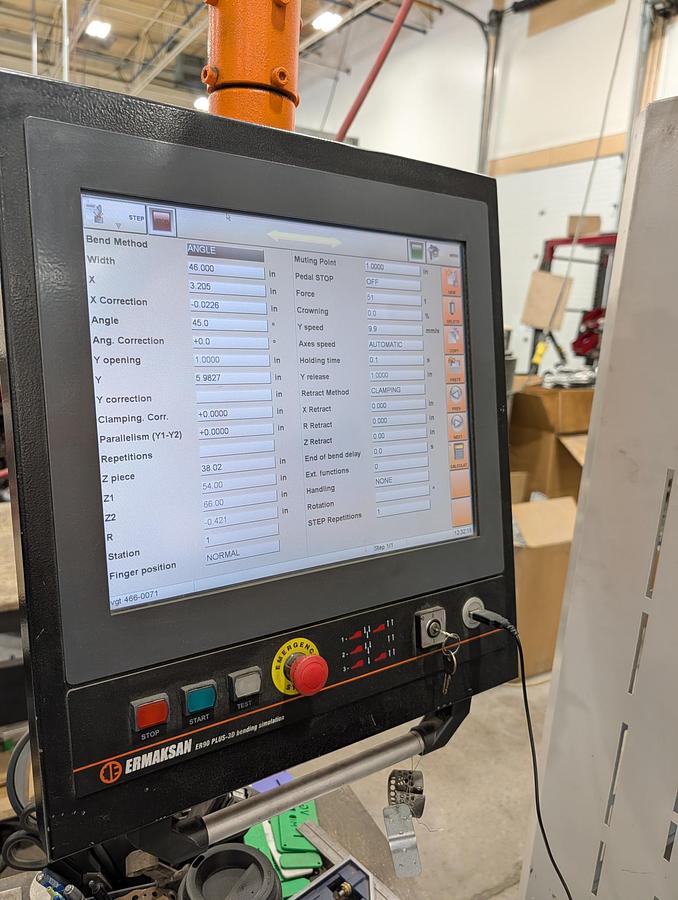

Ermak ER90 3D Control
Y1,Y2,X,R, Z1, Z2 Axes
CNC Crowning

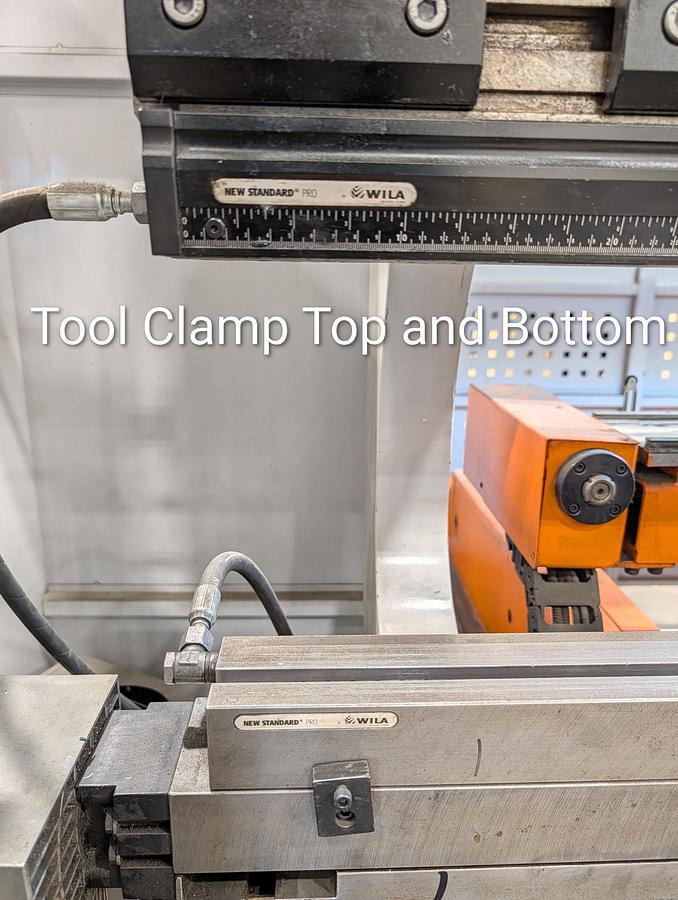

Wila Hydraulic Clamping on Top and Bottom

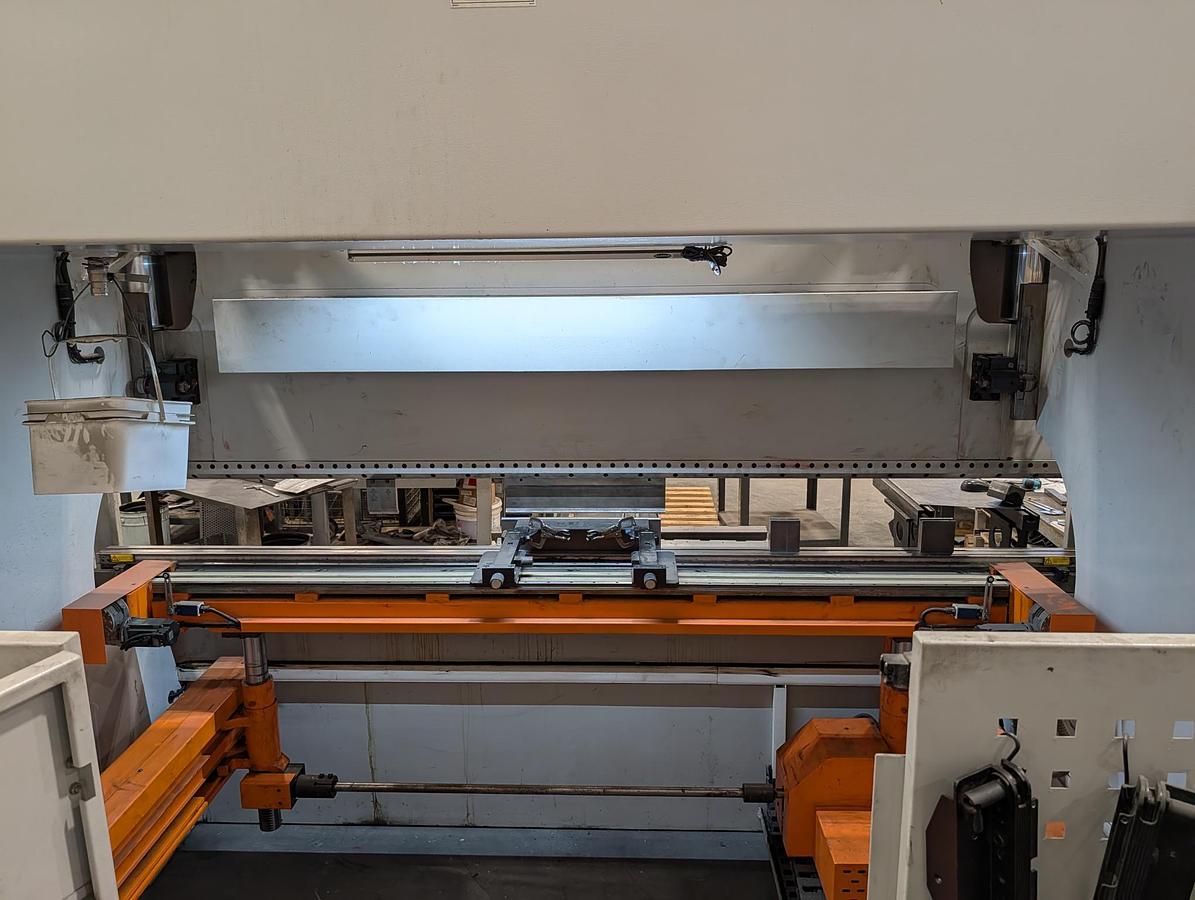

2 Sheet Support Arms
Light Curtains
Foot Pedal
Specifications
| Manufacturer | Ermaksan |
| Model | SB 3100-135 |
| Condition | Used |
| Stock Number | 13248 |
| Capacity | 150 Tons |
| Overall Bending Length | 10.17" |
| Distance Between Housings | 102.4" |
| Y Rapid Speed | 7.87 |
| Y Working Speed | .47 |
| Y Return Speed | 7.48 |
| Travel in X Axis | 31.5 |
| Speed of X Axis | 19.7 |
| Speed of Z1,Z2 Axes | 39.37 IPS |
| Throat | 16.1" |
| Daylight | 21.7" |
| Stroke | 10.8" |
| Back Gauge Travel | 31.5" |
| Back Gauge Speed | 9.84 IPS |
| Dimensions (approx) | 167"x77"x110"H |
| Weight (approx.) | 19,000 |
