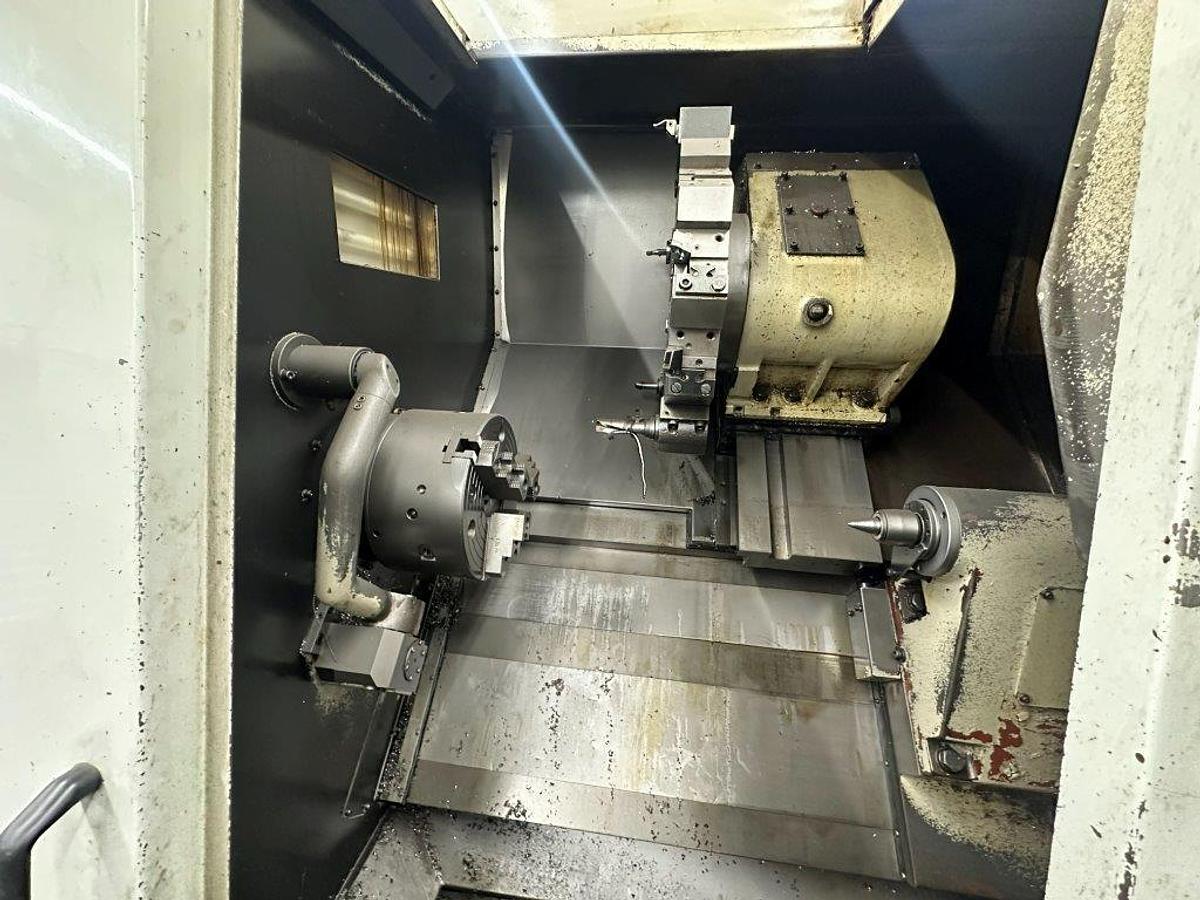

1999 Hwacheon Hi-ECO-35 CNC Turning Center
1999 Hwacheon Hi-ECO-35 CNC Turning Center
Location:California
or
Call (714) 545-0940
Equipped With
Equipped with:

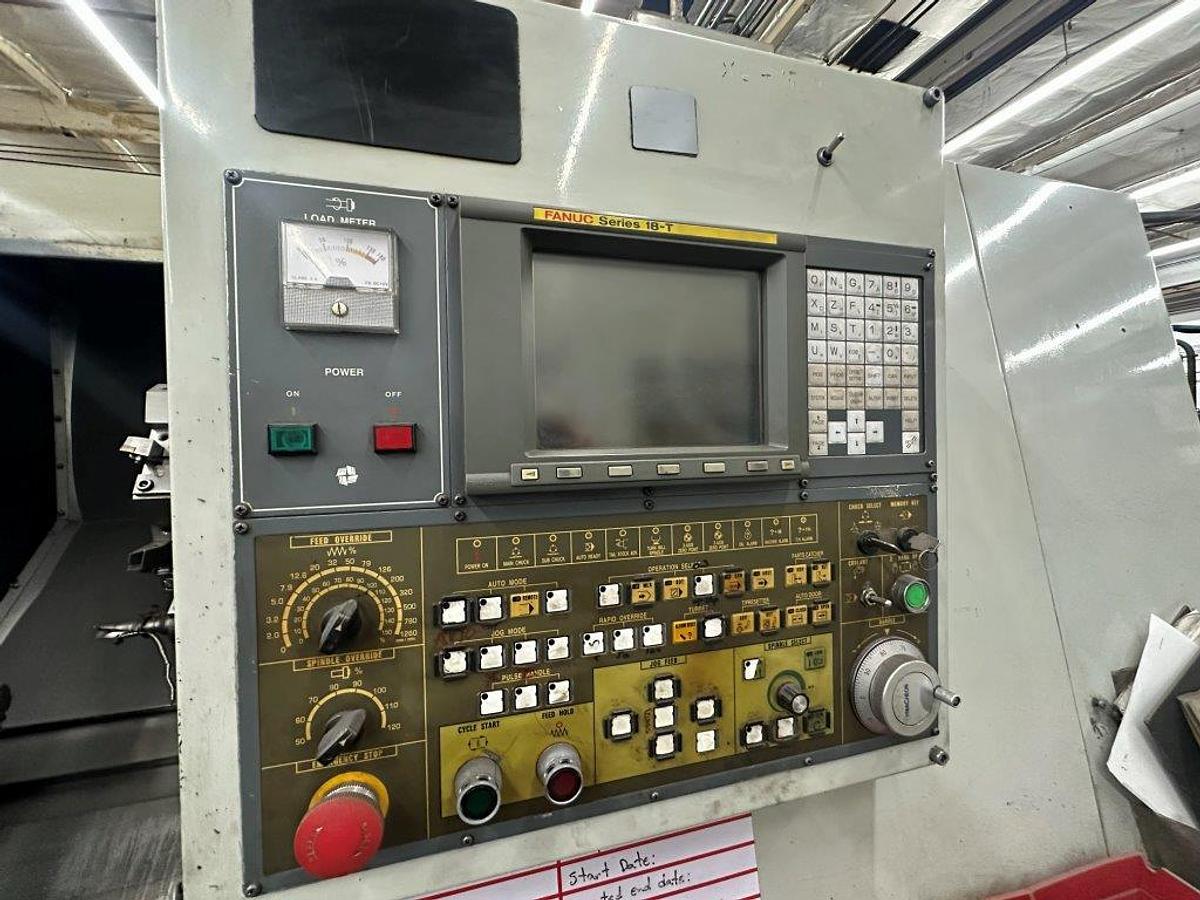

Fanuc 18T Control
Tool Presetter
Tailstock
Chip Conveyor
Specifications
| Manufacturer | Hwacheon |
| Model | Hi-ECO-35 |
| Year | 1999 |
| Condition | Used |
| Stock Number | 13239 |
| Max Turning Diameter | 16.35" |
| Max Turning Length | 47.3 |
| Max Bar Capacity | 3.07" |
| Max Swing Over Bed | 23.62" |
| Distance Between Centers | 50" |
| Spindle Speed | 25 - 2,500 RPM |
| Tailstock Stroke | 4.72" |
| Main Motor | 30 HP |
| Overall Dimensions | 130 x 78 x 92"H |
| Weight (approx.) | 19,000 lbs. |
