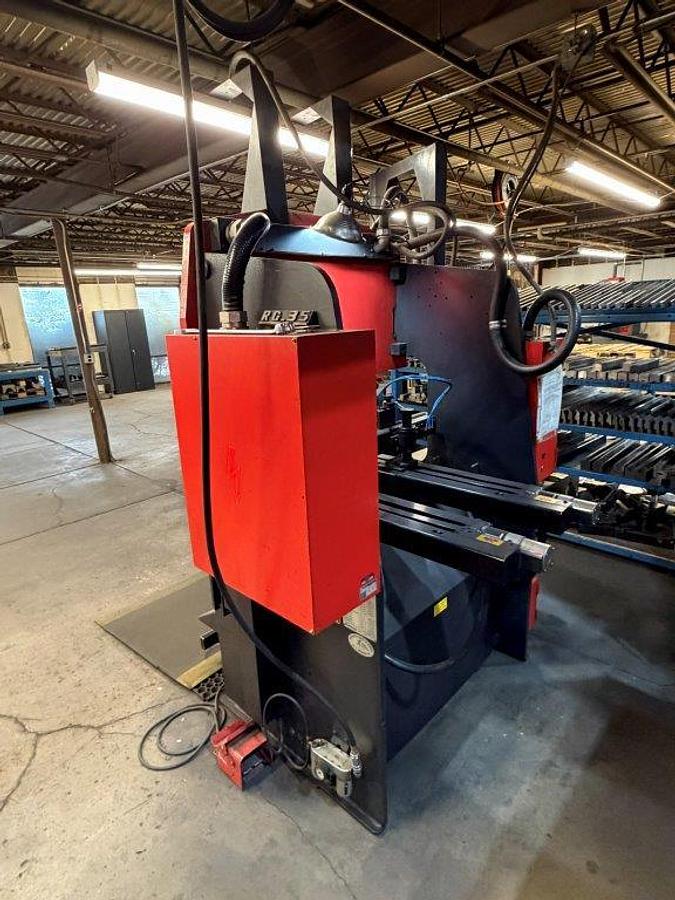

1994 - 38 Ton Amada RG-35 CNC Press Brake
1994 - 38 Ton Amada RG-35 CNC Press Brake
Location:Santa Ana, CA
or
Call (714) 545-0940
Equipped With
Equipped with:

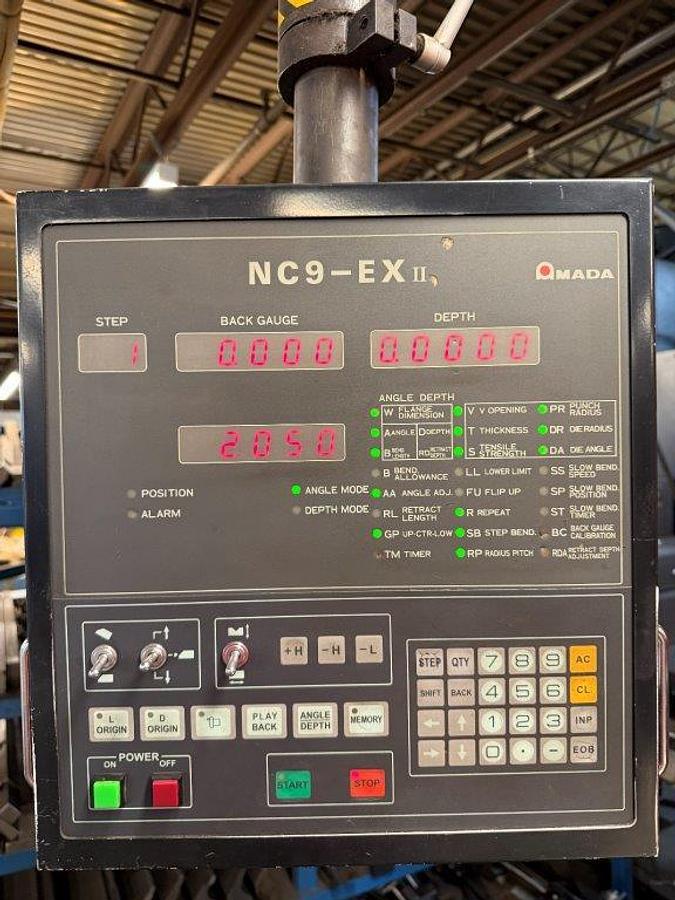

NC9EX-II CNC Control
2 Finger Stops
Misc. Punch Holders
Remote Pulse Handwheel and Stand
Specifications
| Manufacturer | Amada |
| Model | RG-35 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 13209 |
| Capacity | 38 Tons |
| Overall Bending Length | 49" |
| Distance Between End Frames | 40" |
| Length of Stroke | 0-3.94" |
| Open Height | 14.58" |
| Throat Depth | 7.88" |
| Approach Speed | 29 IPM |
| Bending Speed | 22 IPM |
| Return Speed | 94 IPM |
| Control Memory Capacity | 99 Steps |
| Overall Dimensions | 55 x 42 x 78"H |
| Weight (approx.) | 3,600 lbs |
