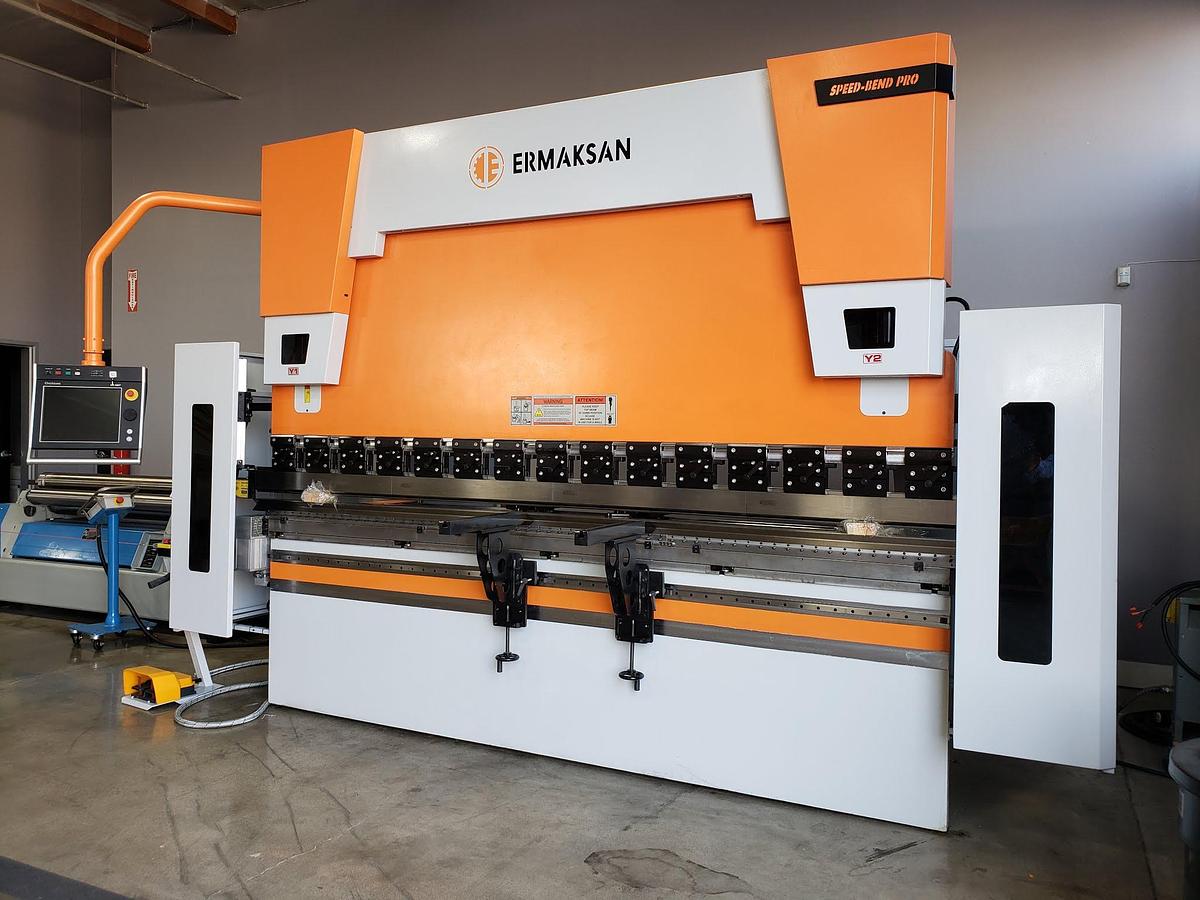

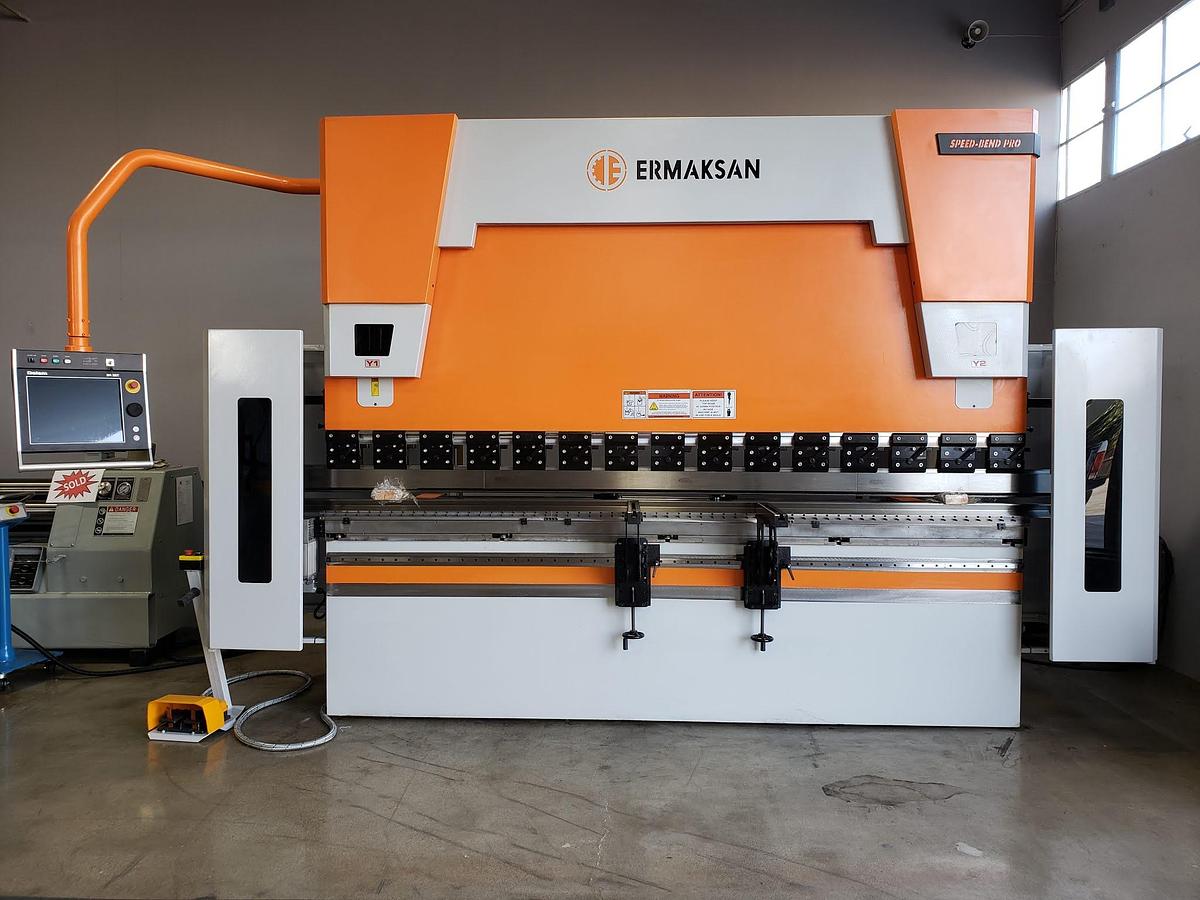

242 Ton x 14' Ermak Speed Bend CNC Press Brake
242 Ton x 14' Ermak Speed Bend CNC Press Brake
Location:Nearest Port
or
Call (714) 545-0940
Equipped With
Equipped With Standard Options:
- Delem DA-69S Full 3D Touch Screen Control
- Delem Profile-T 3D Software (Full Version)
- Y1, Y2, X, R, Z1, Z2 Axes
- CNC Crowning
- LazerSafe System
- Suspension Controller Arm
- Quick Release Universal Punch Holders,
- Tooling Package w/4-Way Bottom Die
- Sheet Support Arms
- Foot Pedal
Specifications
| Manufacturer | Ermaksan |
| Model | SB 4270-175 |
| Condition | New |
| Stock Number | SB 4270-175 |
| Capacity | 242 Tons |
| Overall Bending Length | 168.11" |
| Distance Between Housings | 148.82" |
| Y Rapid Speed | 7.09" /sec |
| Y Working Speed | 0.47" /sec |
| Y Return Speed | 7.28" /sec |
| X Axis Travel | 31.5 |
| X Axis Speed | 13.78 |
| Z1, Z2 Axis Speed | 39.37 |
| Stroke | 10.8" |
| Daylight | 21.65 |
| Throat | 16.1" |
| Dimensions (approx) | 247 x 87 x 106"H |
| Weight (approx.) | 31,000 lbs. |
| Oil Capacity | 78 Gallons |
