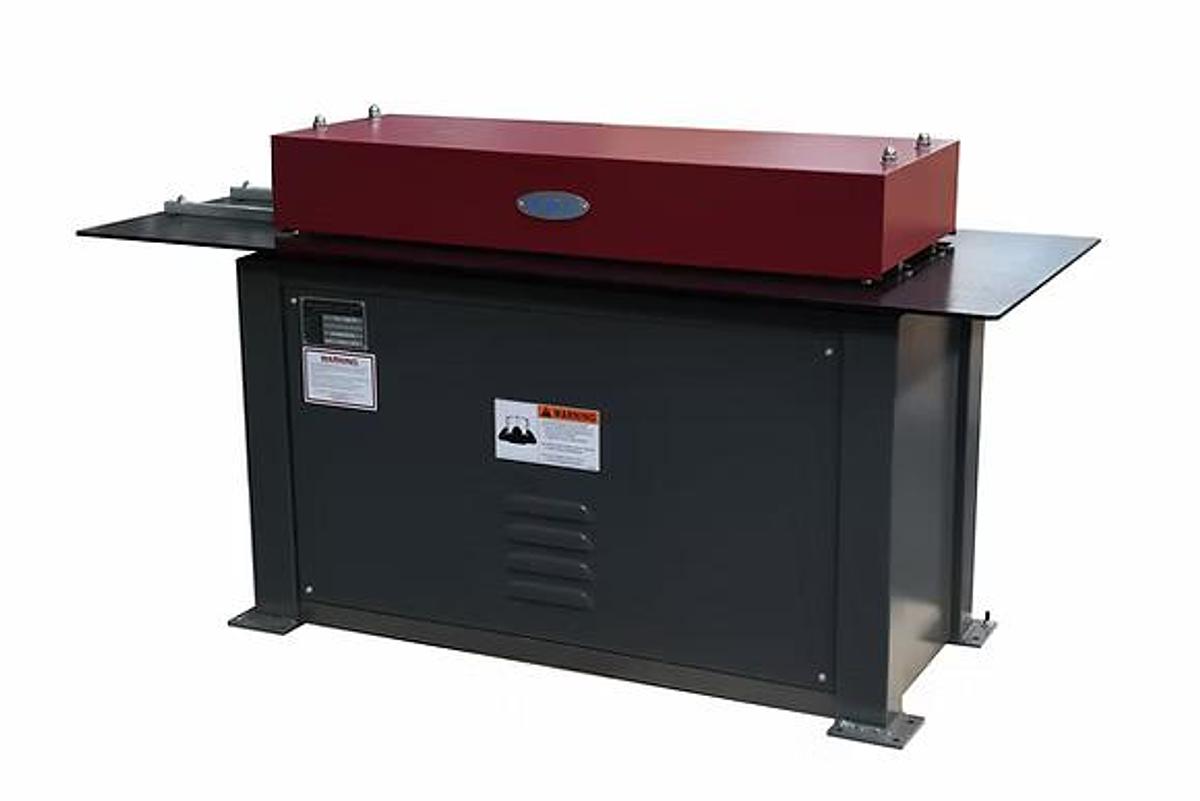

18 GA GMC PL-18HEM HEMMING FORMING MACHINE

18 GA GMC PL-18HEM HEMMING FORMING MACHINE

Location:Ontario, CA

or
Call (714) 545-0940

Equipped With

Standard Features:

  • ISO 9001 certified
  • 4HP Heavy Duty AC main motor, 220V, 3 phase
  • Heavy welded all steel construction for maximum rigidity

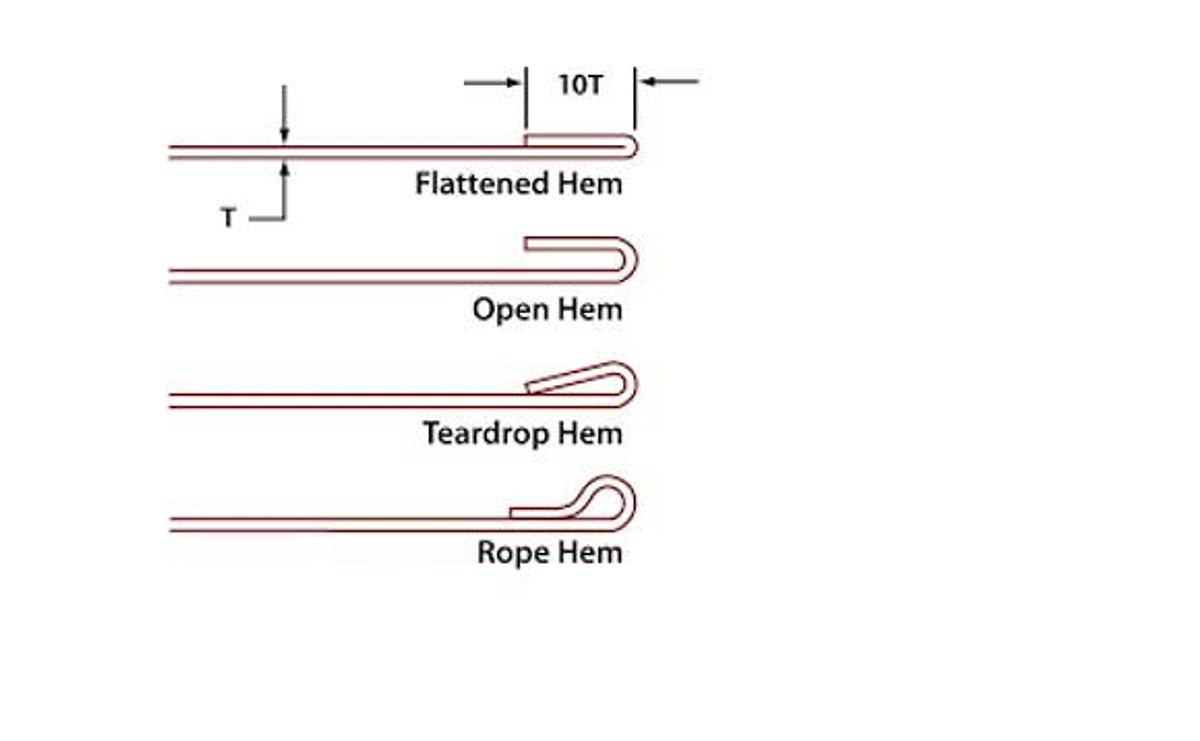

  • One side forms Flattened Hem
  • One side forms Open Hem
  • One year warranty for parts

Standard Equipment:

  • One set of 9 pairs rolls form Flattened Hem
  • One set of 9 pairs rolls form Open Hem

Optional Equipment:

  •  one set of rolls form Teardrop and one set of rolls form Rope Hem
  •  Set of rolls for Pittsburgh lock & Double Seam, 2 in 1
  •  Drive Cleat Roll # DCR-18HEM

*Please call for pricing



Specifications

ManufacturerGMC Machine Tools
ModelPL-18HEM
ConditionNew
Stock NumberPL-18HEM
ProductHVAC MACHINE TOOLS
Capacity24GA to 18GA
Max Hemming Width3/8"
Stations9 stations with 9 pairs of rolls on each side
Feed Speed21 FPM
Main Motor4HP, 220V, 3 Phase, 15 Amp
Machine Dimensions60" x 25" x 40"
MACHINE WEIGHT685 Lbs.
