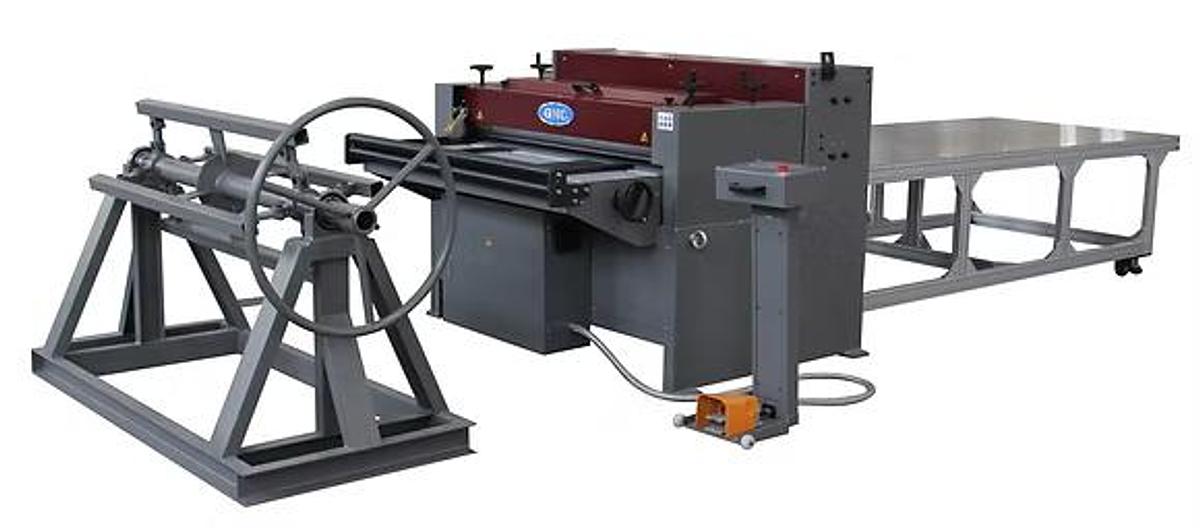

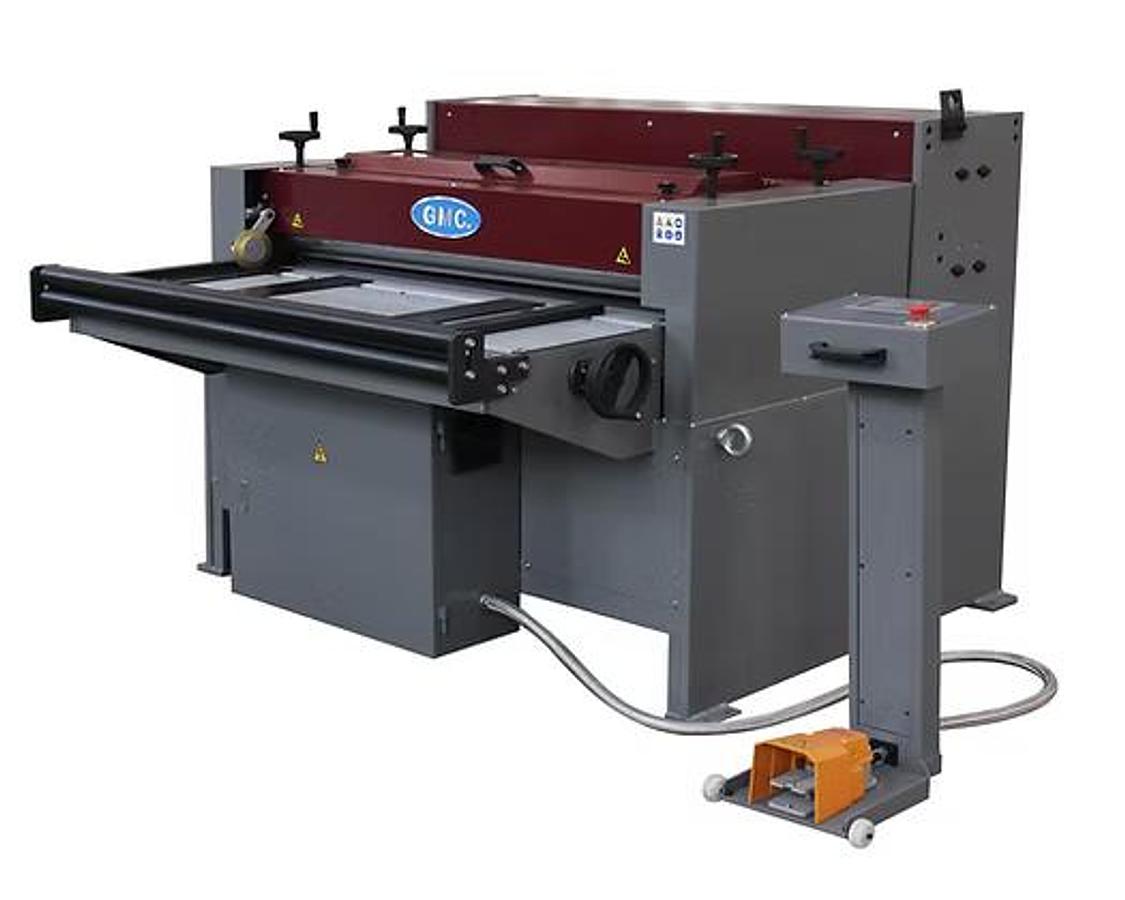

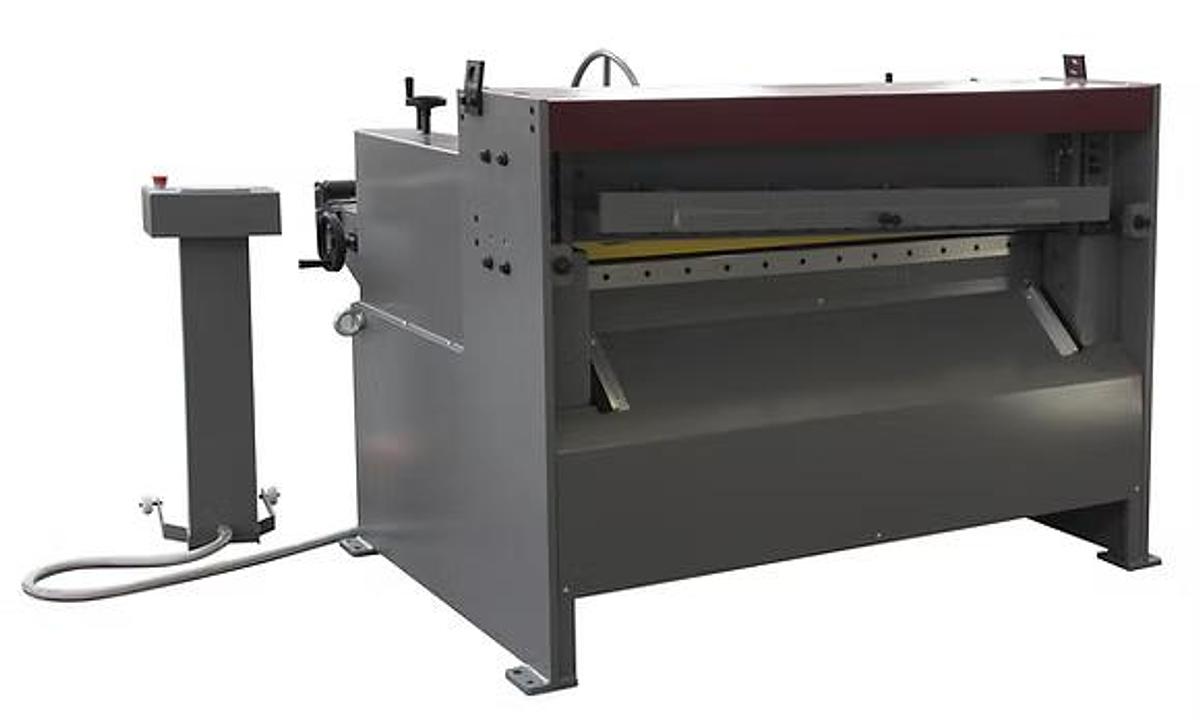

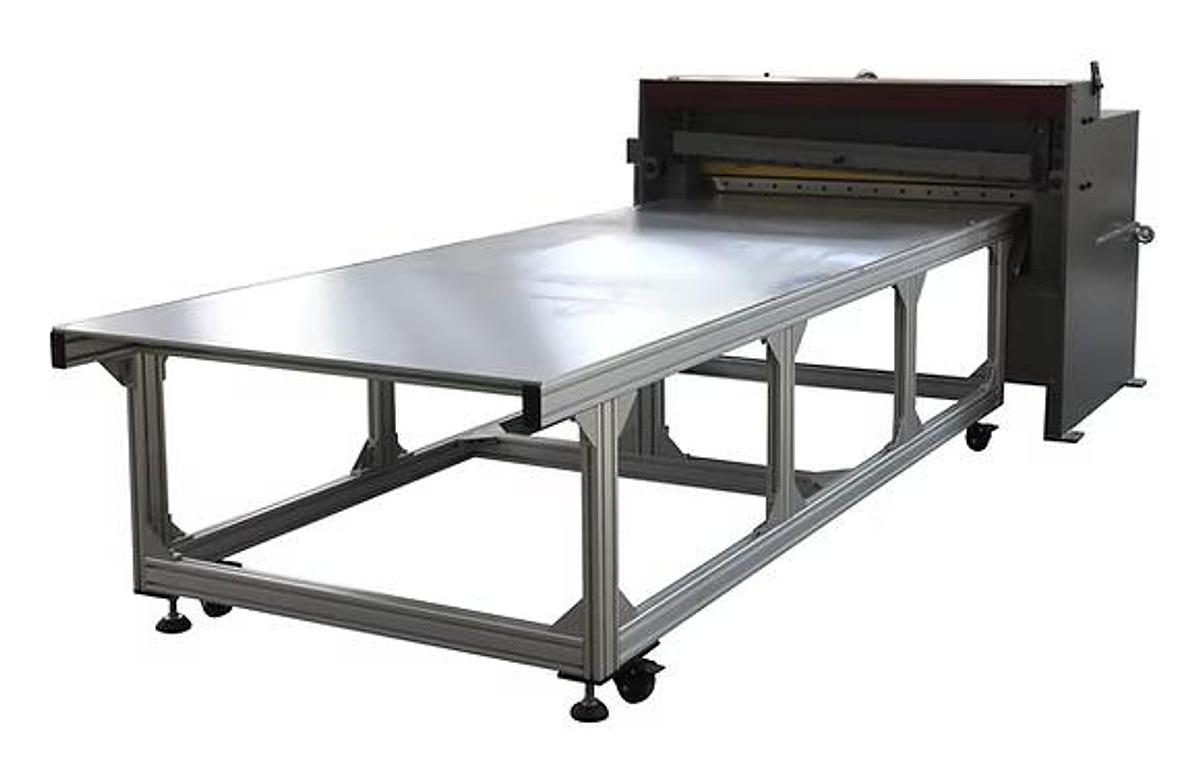

48" X 16 GA GMC PS-4816GT GANG TYPE METAL SLITTER w/PROGRAMMABLE CUT TO LENGTH
48" X 16 GA GMC PS-4816GT GANG TYPE METAL SLITTER w/PROGRAMMABLE CUT TO LENGTH
Location:Ontario, CA
or
Call (714) 545-0940
Equipped With
Standard Features:
- ISO 9001 certified
- American design and Taiwan quality machine
- Slit and cut to length in one unit
- NC programmable cutting length, 100 job memory feature
- Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.
- Auto cycle mode-shearing will auto cycle the programmed cut lengths.
- Easy removal of slitting blades for cut to length operations without slitting.
- feed the sheet metal from the manual decoiler to cut to length without slitting blades

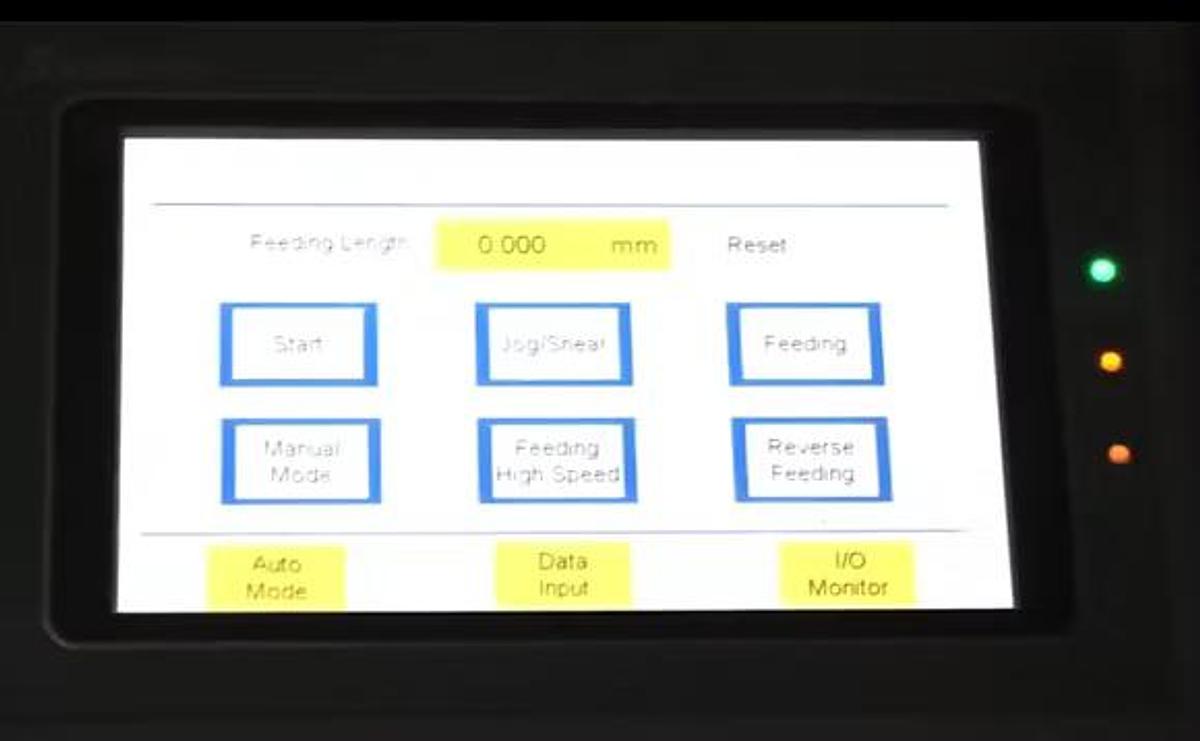

- 5” Omron touch screen
- 3-1/8” diameter shafts mounted in precision ball sealed bearings
- Slitting blades are dual edged
- Safety type foot pedal control
- One year warranty for parts
Standard Equipment:
- Comes with 6 sets of slitting blades to slit max 7 trips, change it to 7 strips
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower shearing blades
Specifications
| Manufacturer | GMC Machine Tools |
| Model | PS-4816GT |
| Condition | New |
| Stock Number | PS-4816GT |
| Product | HVAC MACHINE TOOLS |
| SLITTING/SHEARING CAPACITY | 48" X 16GA (MILD STEEL), 48" X 20GA (SS), 48" X 12GA (SOFT ALUMINUM) |
| MIN. THICKNESS | 30 GA |
| MAX SLITTING LENGTH | 20', NC PROGRAMMABLE |
| MIN SLITTING WIDTH | 3" |
| SHEARING BLADE LENGTH | 50" |
| SHEARING BLADE RAKE ANGLE | 2 DEGREES |
| INFEED / OUTFEET TABLE HEIGHT | 32" |
| SLITTING BLADEA | 6 PAIRS |
| SLITTING FEED SPEED | 57 FPM |
| SHEARING STROKE | 35 |
| CUTS / STRIPS CAPACITY 1 | 16 GA MILD STEEL - 1 CUT / 2 STRIPS |
| CUTS / STRIPS CAPACITY 2 | 18 GA MILD STEEL - 2 CUTS / 3 STRIPS |
| CUTS / STRIPS CAPACITY 3 | 20 GA MILD STEEL - 3 CUTS / 4 STRIPS |
| CUTS / STRIPS CAPACITY 4 | 22GA - 24GA MILD STEEL - 4 CUTS /5 STRIPS |
| CUTS / STRIPS CAPACITY 5 | 26GA - 30GA MILD STEEL - 6 CUTS / 7 STRIPS |
| SLITTING MOTOR | 3 HP, 220V, 1 PHASE |
| SHEAR MOTOR | 3 HP, 220V, 1 PHASE, 25A |
| MAX COIL WEIGHT, 2T | 4,500 LBS |
| MACHINE DIMENSIONS | 68" X 63" X 48" |
| MACHINE WEIGHT | 2,850 LBS. |
