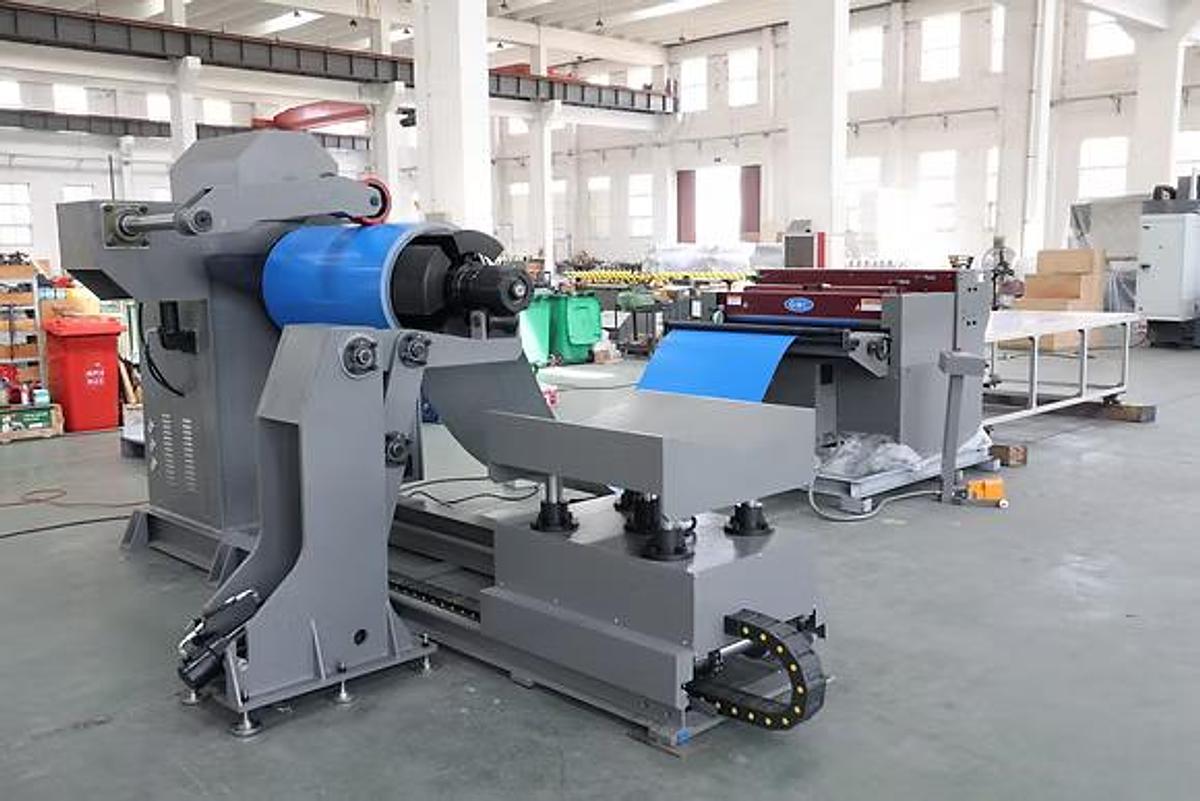

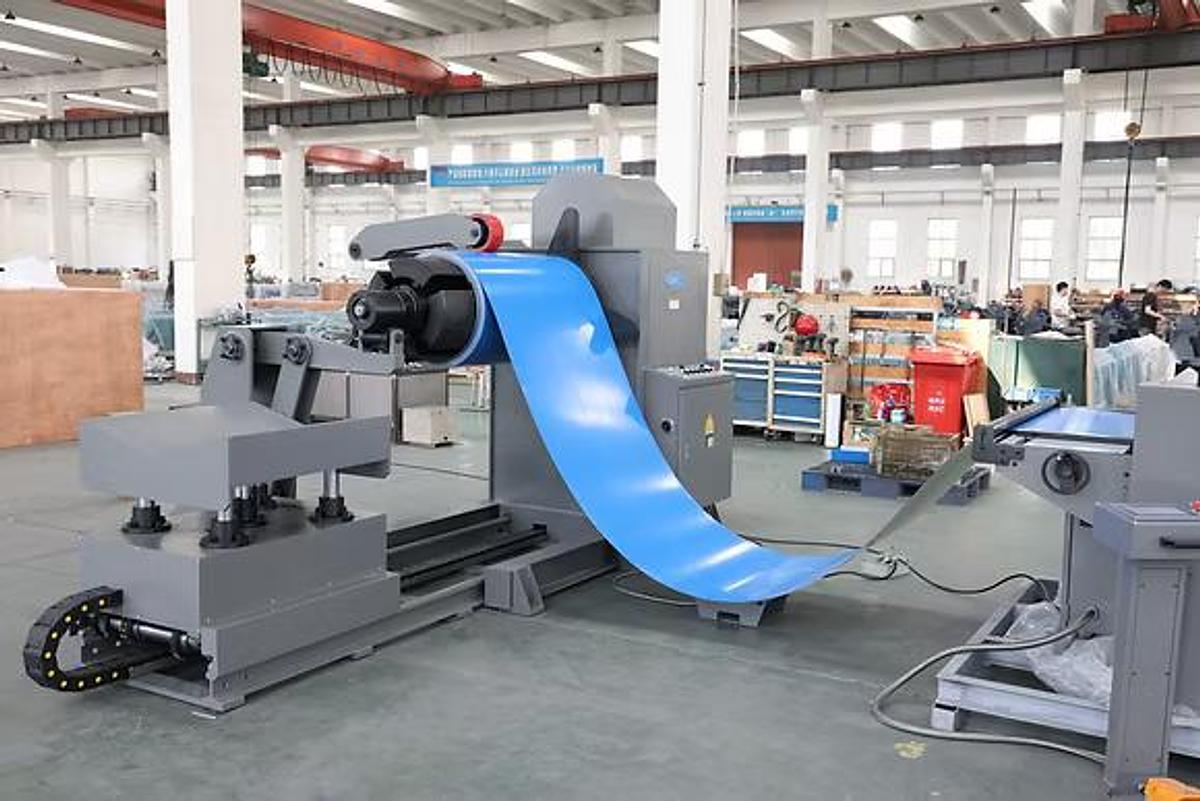

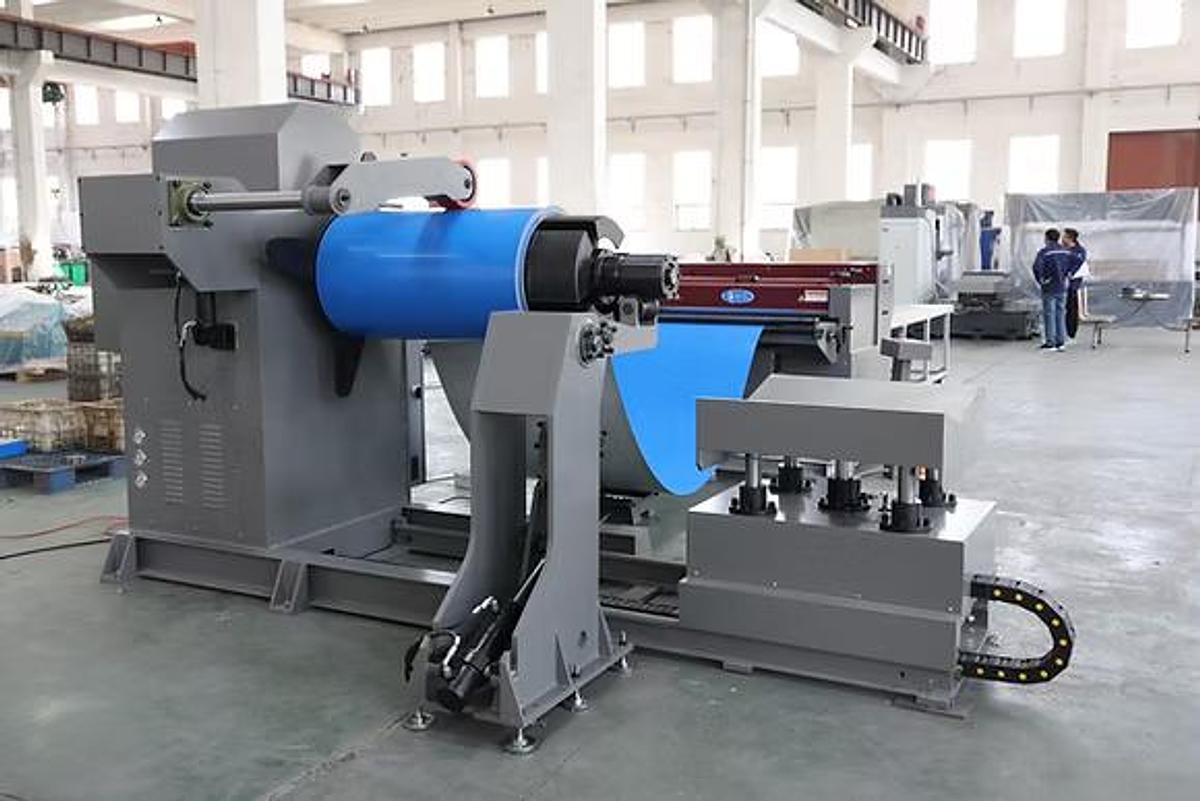

6 TON GMC HDC-4820-6T HYDRAULIC DECOILER MACHINE

6 TON GMC HDC-4820-6T HYDRAULIC DECOILER MACHINE

Location:Ontario, CA

or
Call (714) 545-0940

Equipped With

Standard Features:

  • ISO 9001 certified
  • American design and Taiwan quality machine
  • Hydraulic clamping for coil
  • Hydraulic coil feeding table with height control
  • With sensors to avoid the sheet metal touches the floor.
  • Hydraulic front support arm
  • Hydraulic top support arm
  • One year warranty for parts



Specifications

ManufacturerGMC Machine Tools
ModelHDC-4820-6T
ConditionNew
Stock NumberHDC-4820-6T
ProductHVAC MACHINE TOOLS
COIL SIZE48" WIDE
COIL ID 20" hYDR CLAMPING RANGE18 1/2" - 20 3/4"
MAX COIL OD47"
MAX COIL WEIGHT (6 TONS)13,200 LBS.
SPEED0-100'/ MIN
HYDR SYSTEM PRESSURE0-15 MPA
MAIN MOTOR7 1/2 HP, 220V, 3 PHASE
HYDRAULIC MOTOR4 HP, 220V, 3 PHASE
MACHINE DIMENSIONS166" X 95" X 85"
MACHINE WEIGHT10,150 LBS.
