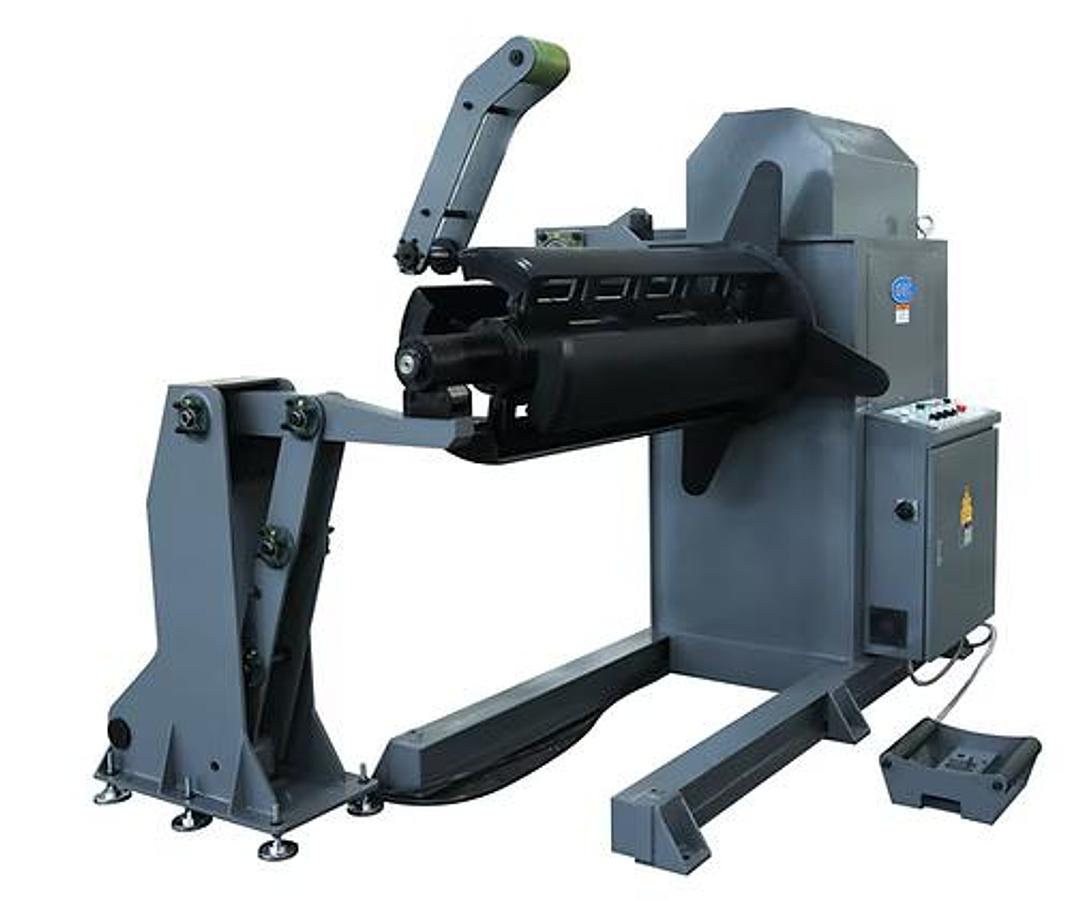

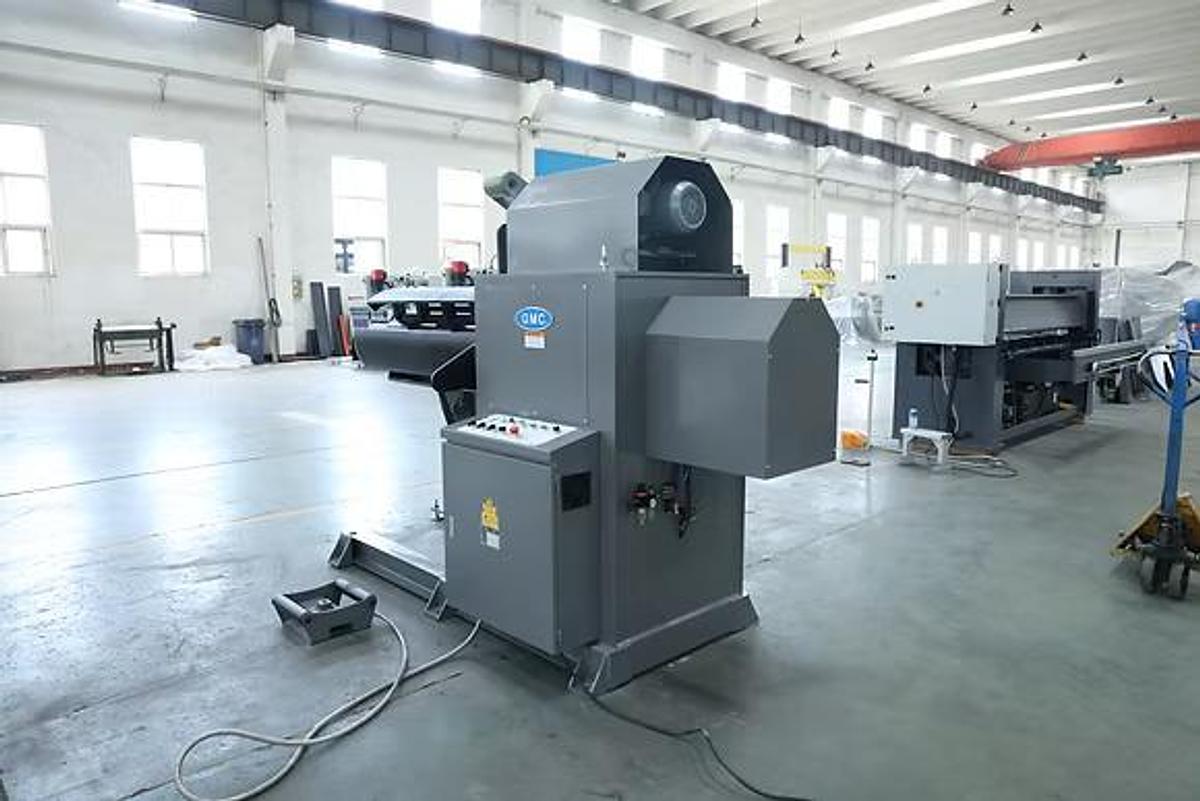

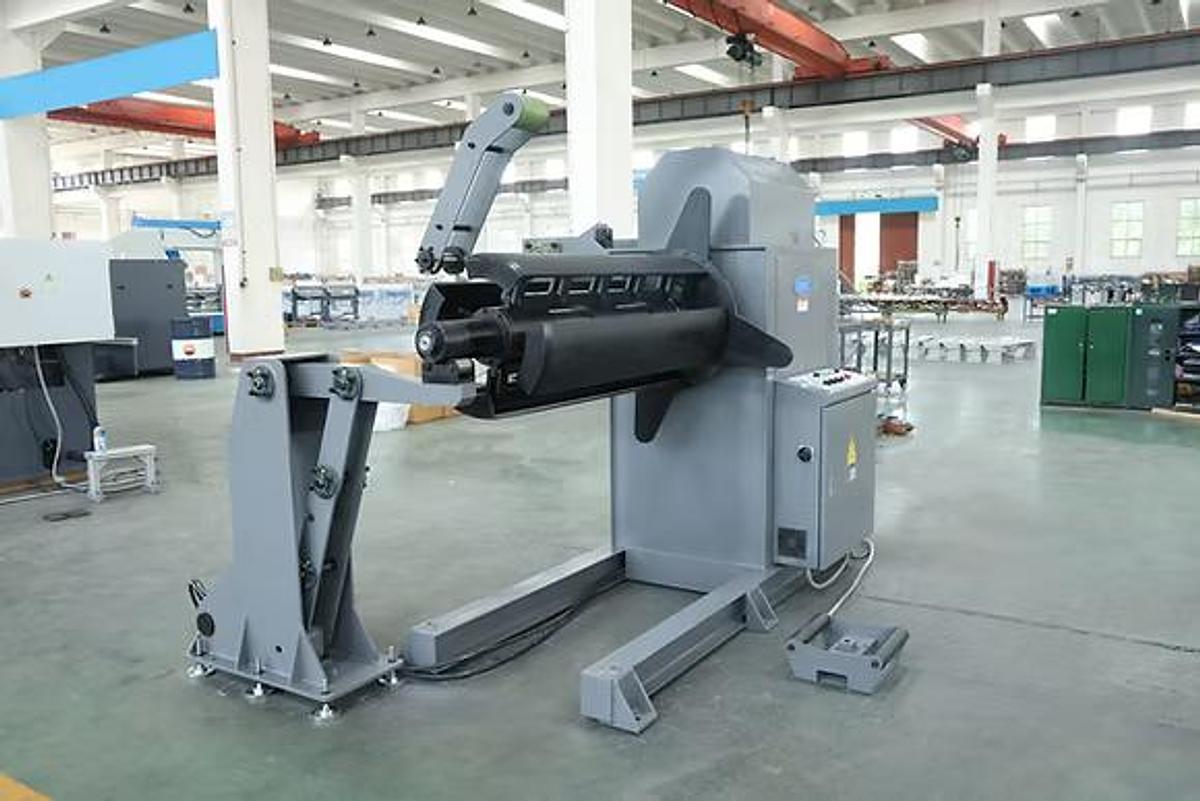

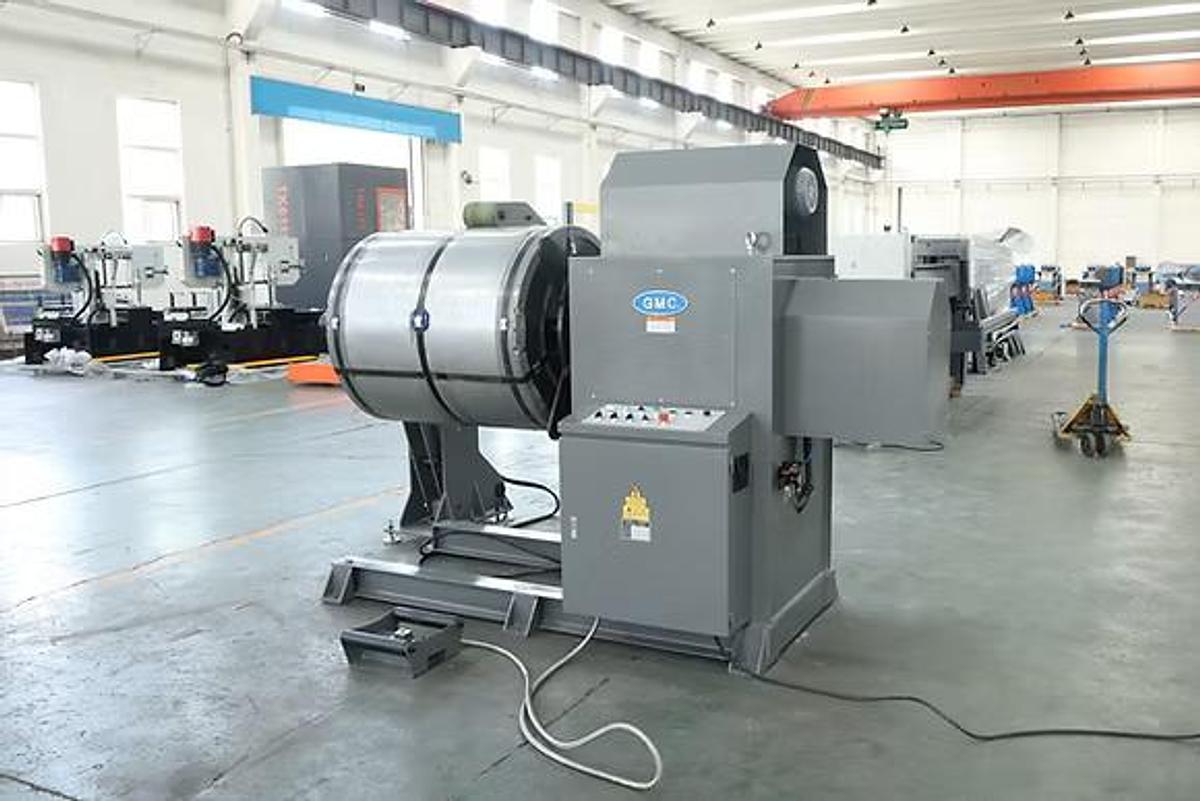

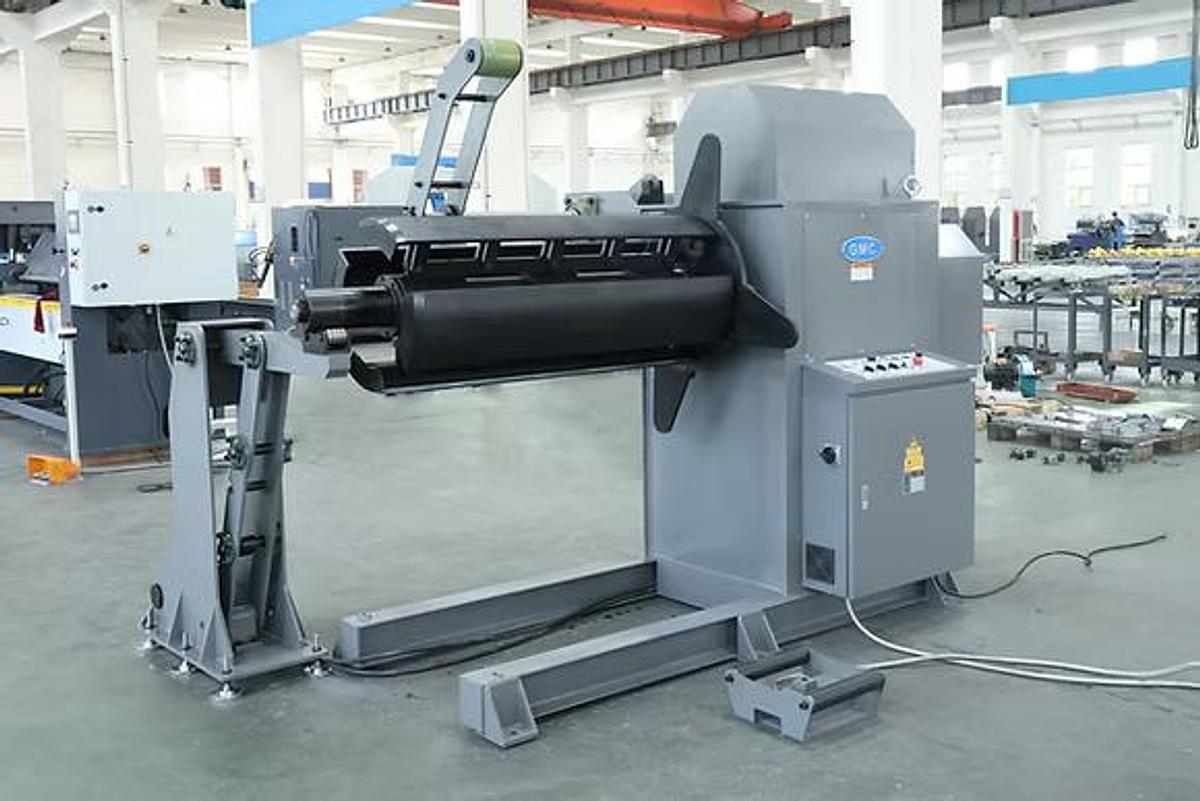

3 Ton GMC HDC-4820-3T Hydraulic Heavy Duty Coil Handling System

3 Ton GMC HDC-4820-3T Hydraulic Heavy Duty Coil Handling System

Location:Ontario, CA

or
Call (714) 545-0940

Equipped With

Standard Features:

  • ISO 9001 certified
  • American design and Taiwan quality machine
  • Hydraulic clamping for coil
  • With sensors to avoid the sheet metal touches the floor.
  • Hydraulic front support arm
  • Hydraulic top support arm
  • One year warranty for parts


Specifications

ManufacturerGMC Machine Tools
ModelHDC-4820-3T
ConditionNew
Stock NumberHDC-4820-3T
ProductHVAC MACHINE TOOLS
COIL SIZE48" WIDE
COIL ID 20" hYDR CLAMPING RANGE18 1/2" - 20 3/4"
MAX COIL OD39"
MAX COIL WEIGHT (3 TONS)6600 LBS
SPEED0-100'/ MIN
HYDR SYSTEM PRESSURE0-15 MPA
MAIN MOTOR4HP, 220V (only), 3 PHASE
HYDRAULIC MOTOR4HP, 220V, 3 PHASE
HYDRAULIC TANK CAPACITY10 GALLONS
MACHINE DIMENSIONS122" X 73" X 78"
MACHINE WEIGHT5,220 LBS
