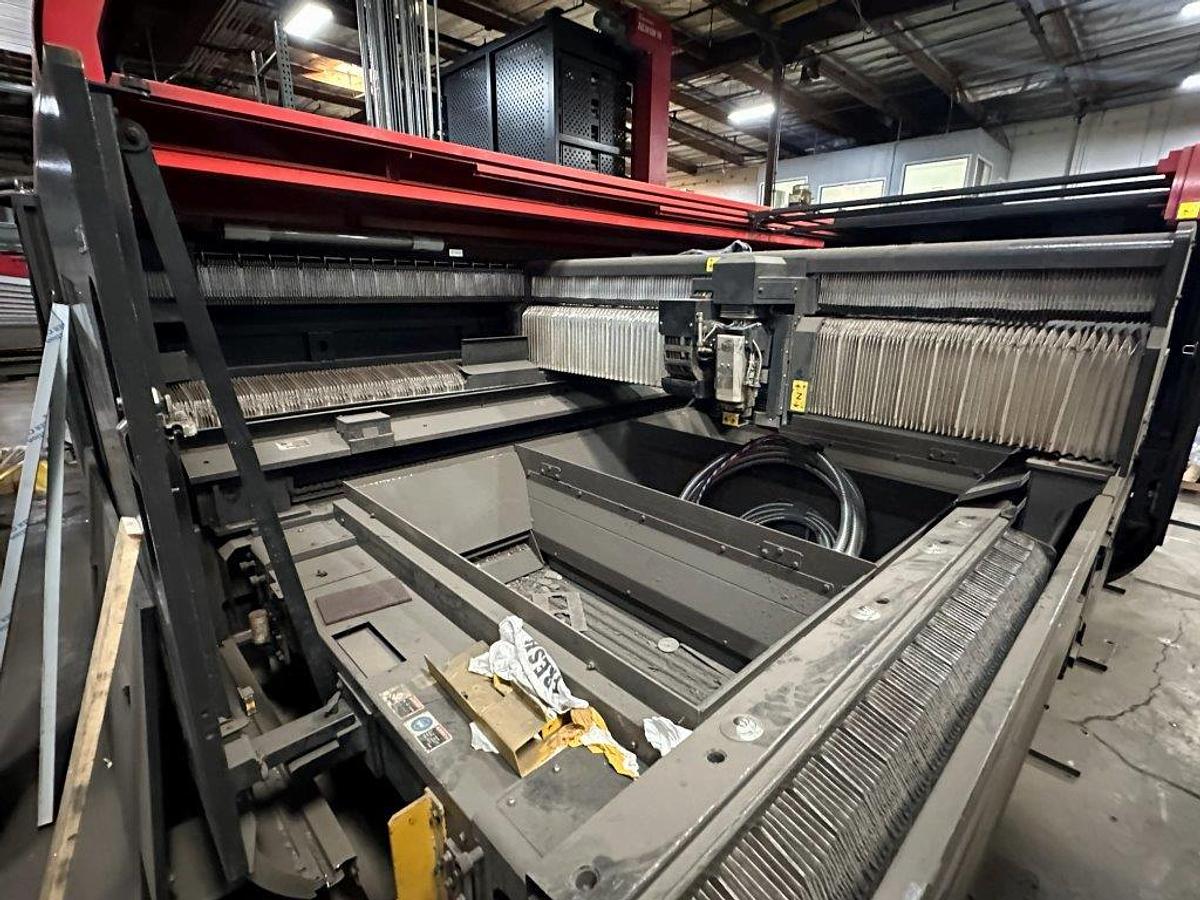

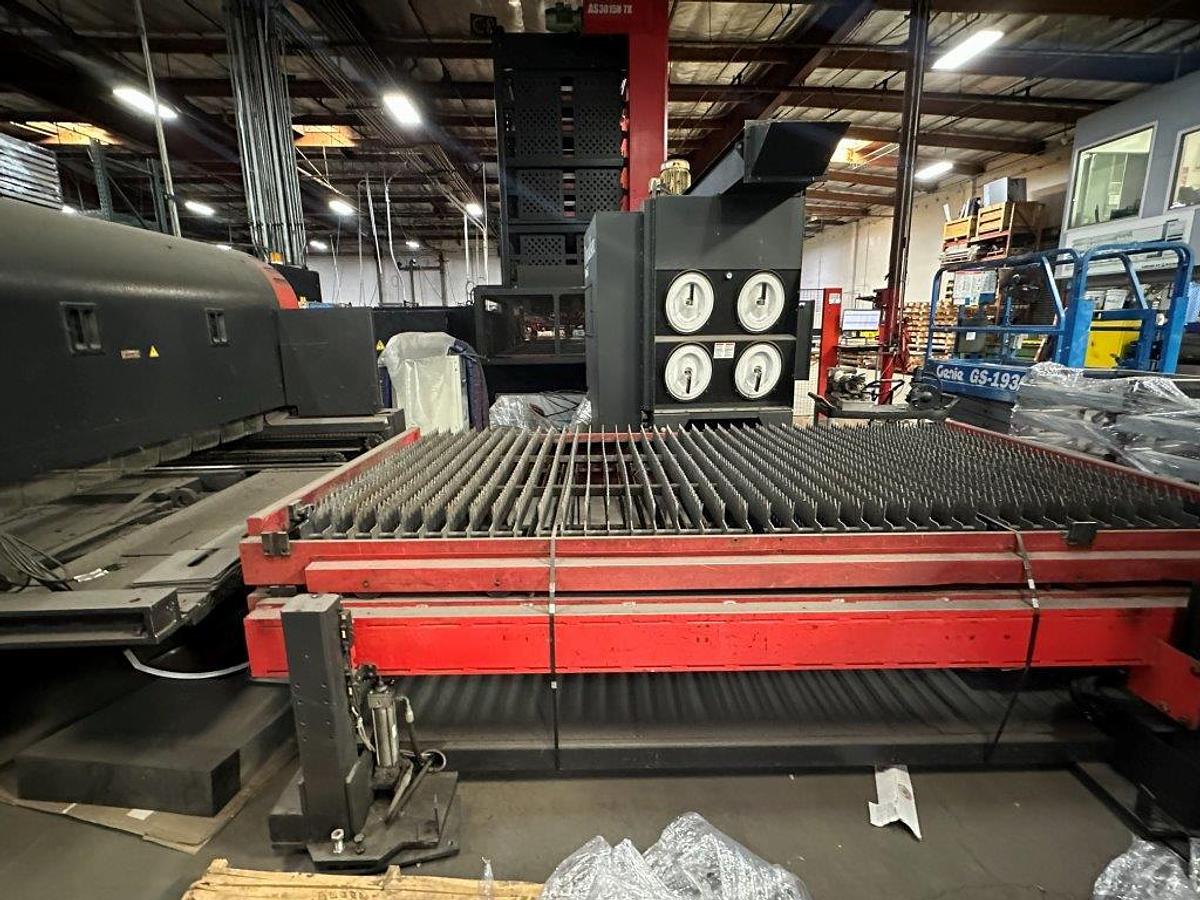

2011 - 4000 Watt Amada LC-3015F1NT CNC CO2 Laser
2011 - 4000 Watt Amada LC-3015F1NT CNC CO2 Laser
Location:California
or
Call (714) 545-0940
Equipped With
Equipped with:
NT Control
4000 Watt Fanuc Resonator
Pallet Shuttle
Chiller

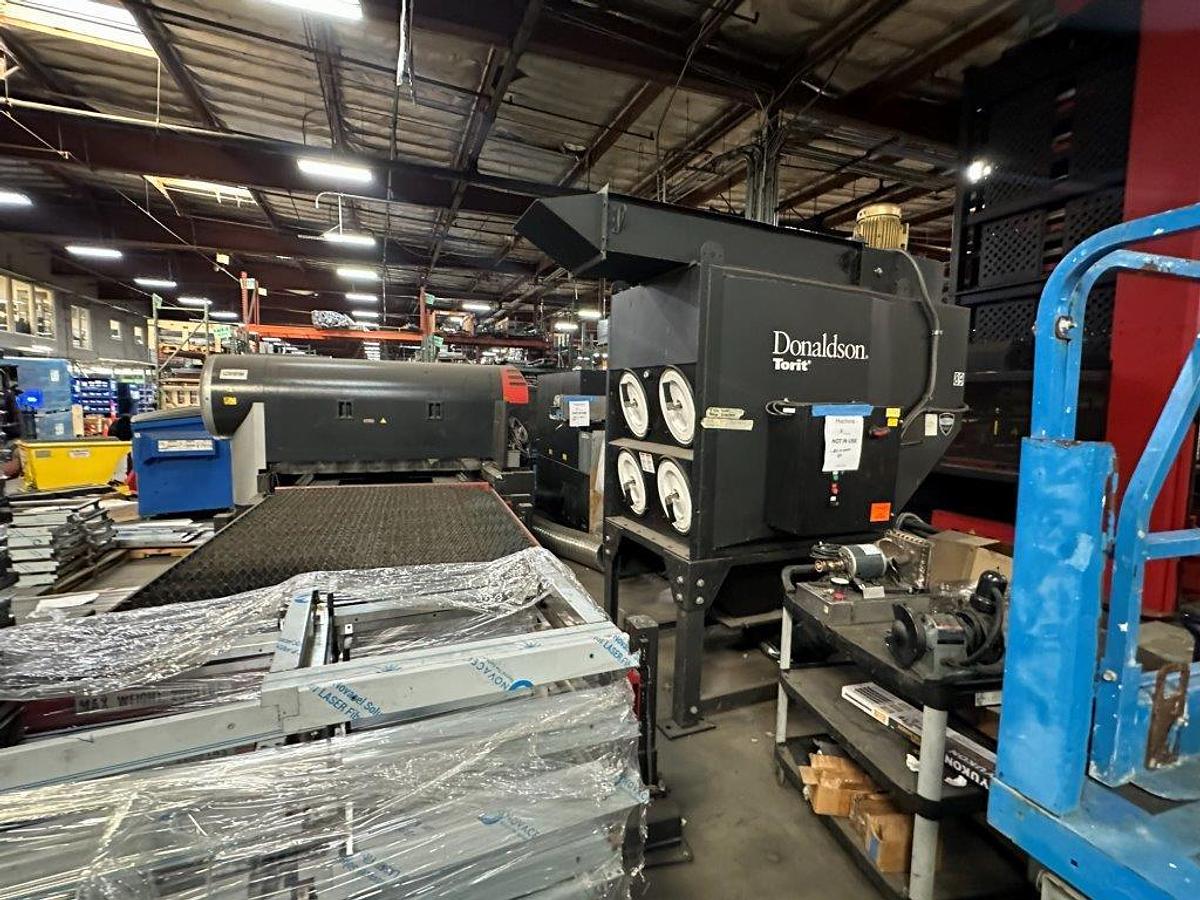

Dust Collector

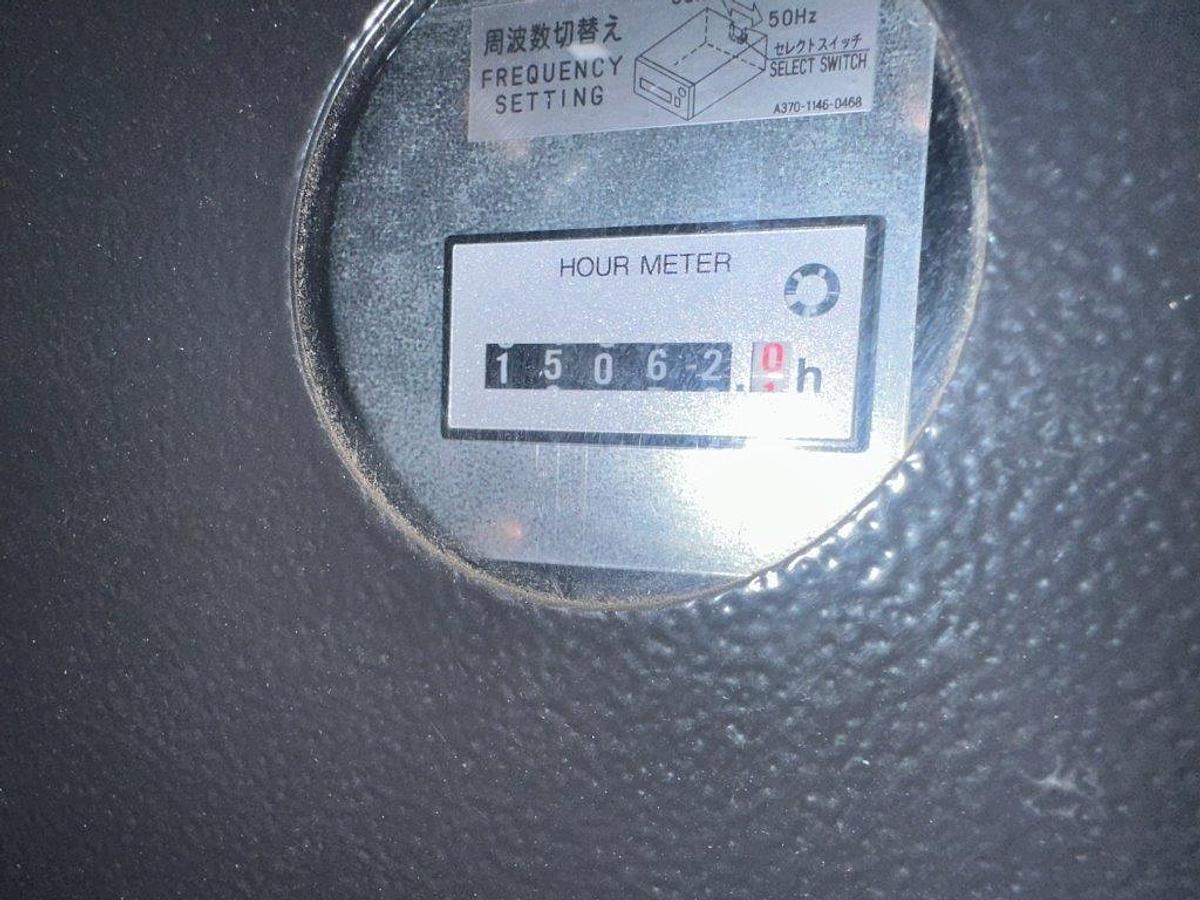

*Machine has 15,000 hours on the resonator
*Was disconnected in early 2025 at NV facility by Amada technician and moved to CA site but never reinstalled
Specifications
| Manufacturer | Amada |
| Model | LC-3015F1NT |
| Year | 2011 |
| Condition | Used |
| Stock Number | 13198 |
| Wattage | 4000 Watts |
| Max Sheet Size | 5' x 10' |
| Max Material Weight | 2000 lbs. |
| Max Material Thickness | Carbon Steel: 1.25", SS: 0.750", Aluminum: 0.500" |
| X Axis Travel | 121" |
| Y Axis Travel | 61" |
| Z Axis Travel | 3.94 |
| Max Positioning Speed (X,Y,Z) | 4724 IPM |
| Max Cutting Speed | 0-1260 IPM |
| Electrical | 208V, 3 Phase, 60 Hz |
| Weight (approx) | 28,660 lbs. |
