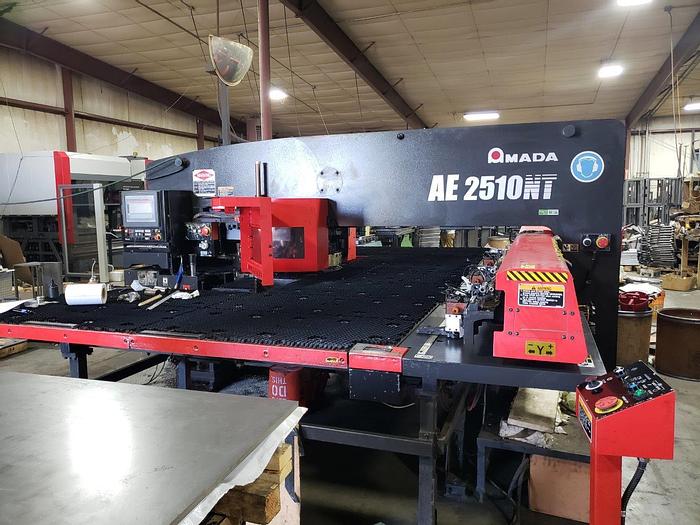

2011 22 Ton Amada AE2510NT CNC Turret Punch

2011 22 Ton Amada AE2510NT CNC Turret Punch

Contact us for price

orCall (714) 545-0940

Equipped With

Specifications


Capacity:                                             22 US Ton

Press Drive System:                               Single Motor AC Servo Drive

Maximum Sheet Size (w/o repo):             50"x98" (50"x196" with repo)

Throat Depth:                                       52"

Maximum Sheet Thickness:                     1/4"

Turret Style:                                         Thick

Turret Stations:                                     51 with (4) A/I

Turret Rotation Speed:                           30 RPM

Auto-Index Rotation Speed:                    60 RPM

Maximum Feed Rate X-Axis:                 3,150 IPM

Maximum Feed Rate Y-Axis:                  2,362 IPM

Maximum Hit Rate:                                480 HPM

Weight:                                                28,660#




Equipped With:


Amada NT Control

[51] Stations w/ [4] Auto-Index

Brush Table




*Low Hours

Specifications

ManufacturerAmada
ModelAE2510NT
Year2011
ConditionUsed
Stock Number3873
Capacity22 US Ton
Press Drive SystemSingle Motor AC Servo Drive
Throat Depth52"
Maximum Sheet Size (w/o repo)50"x98" (50"x196" with repo)
Maximum Sheet Thickness1/4"
Turret StyleThick
Turret Stations51 with (4) A/I
Turret Rotation Speed30 RPM
Auto-Index Rotation Speed60 RPM
Maximum Feed RateX-Axis3,150 IPM
Maximum Feed RateY-Axis2,362 IPM
Maximum Hit Rate480 HPM
Weight28,660#
