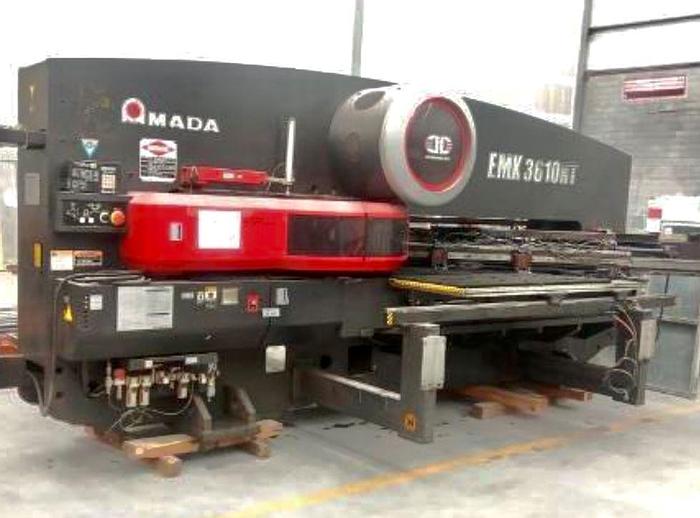

2011 33 Ton Amada EMK-3610NT CNC Turret Punch
No longer available
2011 33 Ton Amada EMK-3610NT CNC Turret Punch
Mexico
Equipped With
AMNC-PC Control
58 Station Turret w/ (4) A/I
(3) Work Clamps
Brush Table
Specifications
| Manufacturer | Amada |
| Model | EMK-3610NT |
| Year | 2011 |
| Condition | Used |
| Stock Number | 3866 |
| Capacity | 33 Tons |
| Max Sheet Size | 120"x60" |
| Max Sheet Size w/ Reposition | 240" x 60" |
| Throat Depth | 50" |
| Travels (X-Axis) | 120" |
| Travels(Y-Axis) | 60" |
| Stroke | 1.45" |
| Max Sheet Thickness | .187" |
| Turret Stations | 58 w/ (4) A/I |
| Turret Tooling Style | Thick |
| Turret Rotation Speed | 30 RPM |
| Feed Clearance | .984" |
| Overall Dimensions | 210" x 245" x 95"H (approx) |
| Weight (approx.) | 44,000# |
