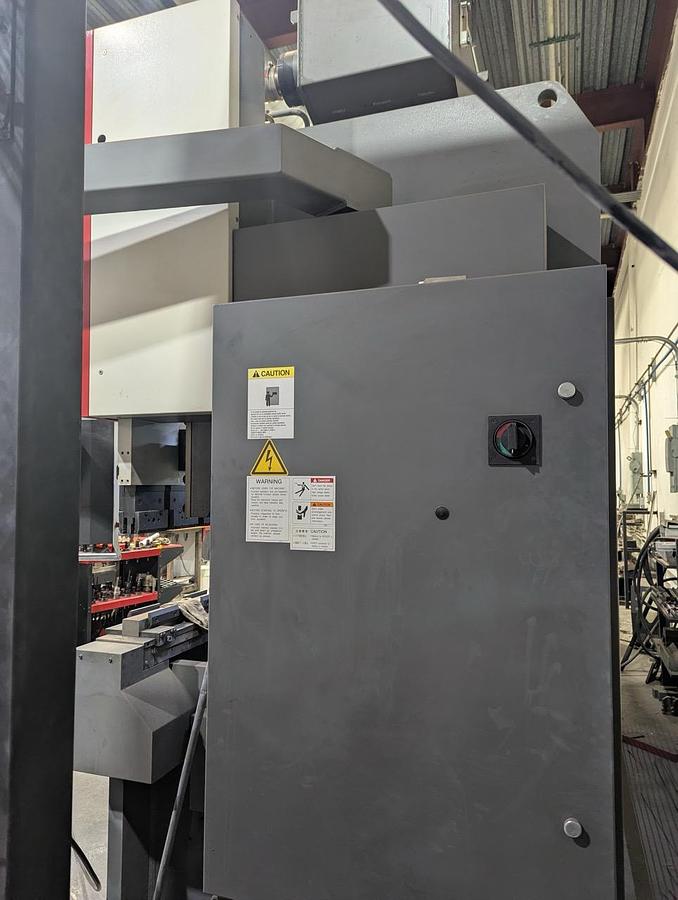

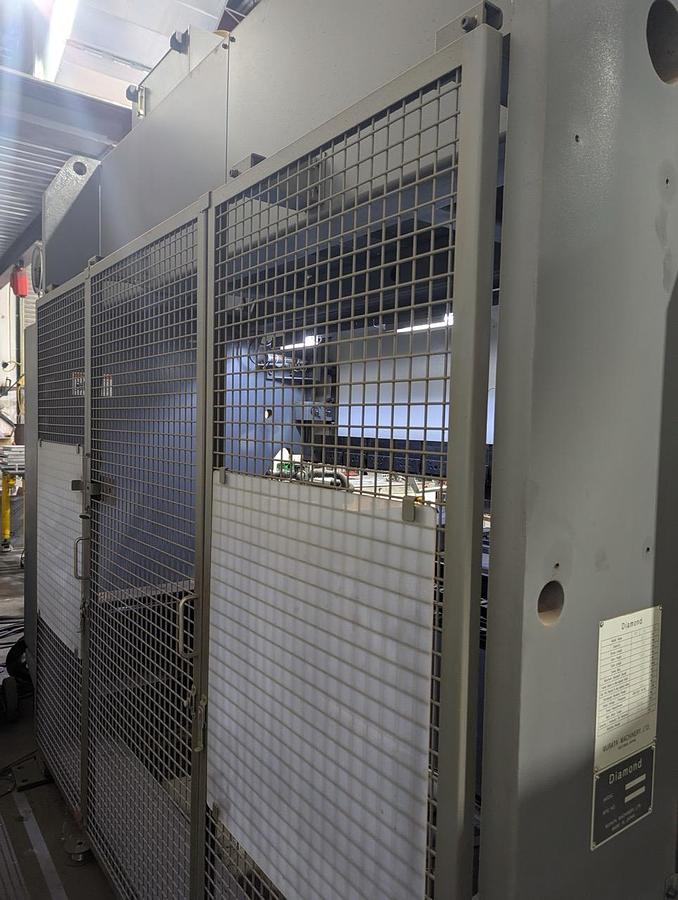

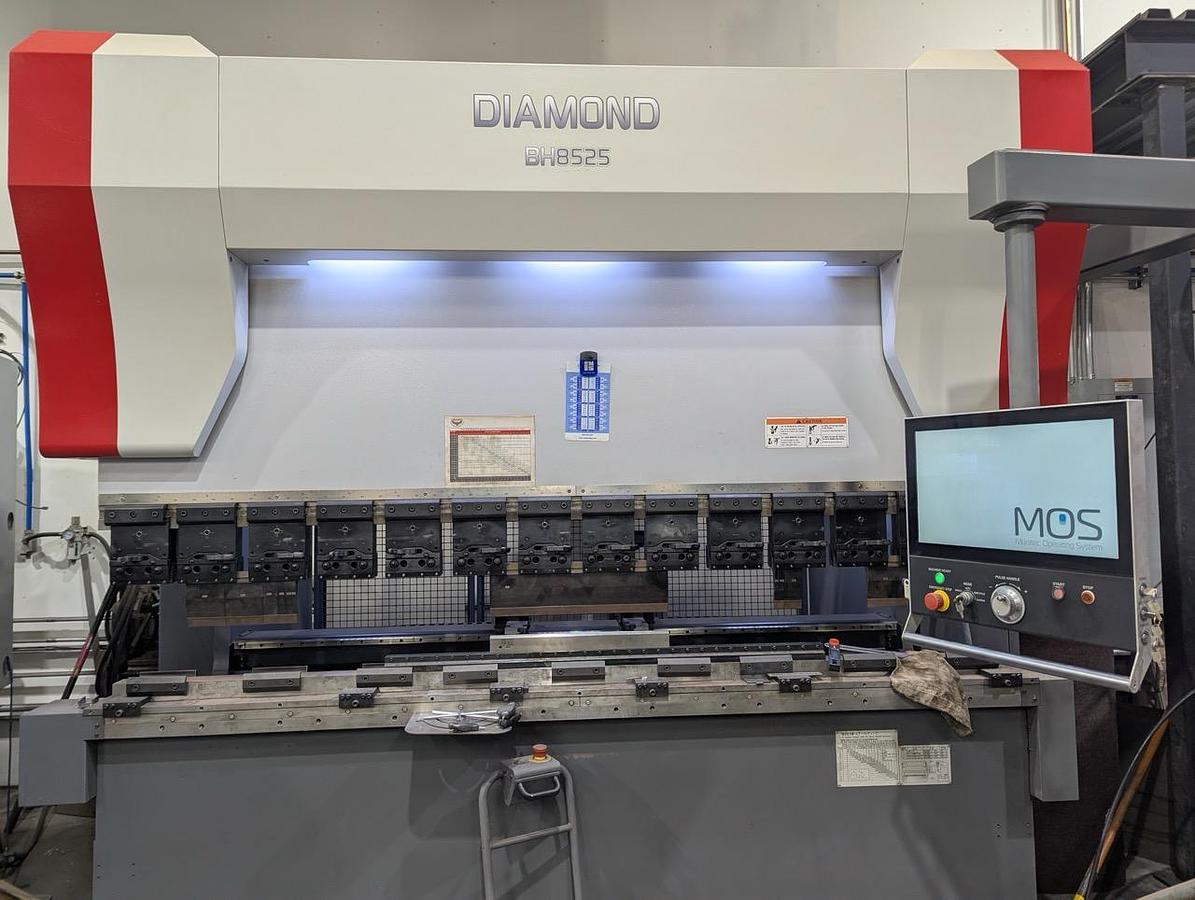

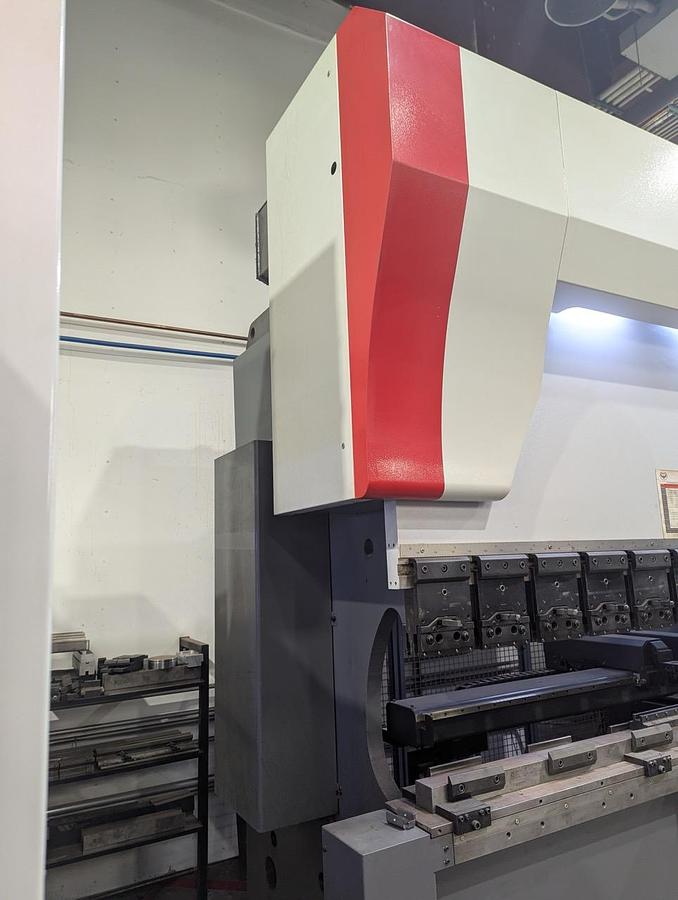

2018 - 94 Ton x 8.5' Mitsubishi Diamond BJ8525 CNC Press Brake
2018 - 94 Ton x 8.5' Mitsubishi Diamond BJ8525 CNC Press Brake
Location:California
or
Call (714) 545-0940
Equipped With
Equipped with:
Mitsubishi Control
Full Set of Punch Holders
Dual Drive Mechanism
Automatic Thickness Detection
Specifications
| Manufacturer | Mitsubishi |
| Model | BJ8525 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 13179 |
| Capacity | 94Tons |
| Length of Bed | 102" |
| Distance between end frames | 86.6" |
| Stroke length | 9.84" |
| Throat Depth | 15.7" |
| Repeatability | 0.00004" |
| Approach Speed | 472 IPM Max |
| Bend Speed | 24 IPM Max |
| Return Speed | 472 IPM Max |
| Punch Holder Height | 5.9" |
| Back Gauge X Distance | 33.5" |
| Back Gauge Repeat Accuracy | 0.0002" |
| R Axis Travel | 7.8" |
| Daylight w/o Punch Holders | 20.8" |
| Daylight w/Stand Holders | 14.9" |
| Table Height | 35.4" |
| Table Width | 6.7" |
| Oil Capacity | 12.6 Gallon |
| Electrical | 208V, 9 Kva |
| Weight | 15,400 |
