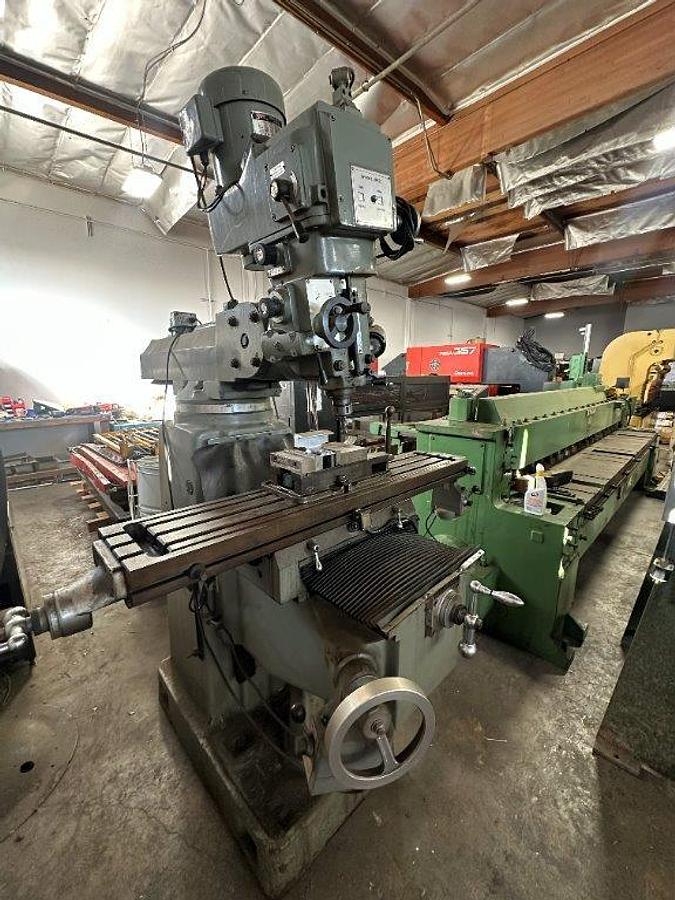

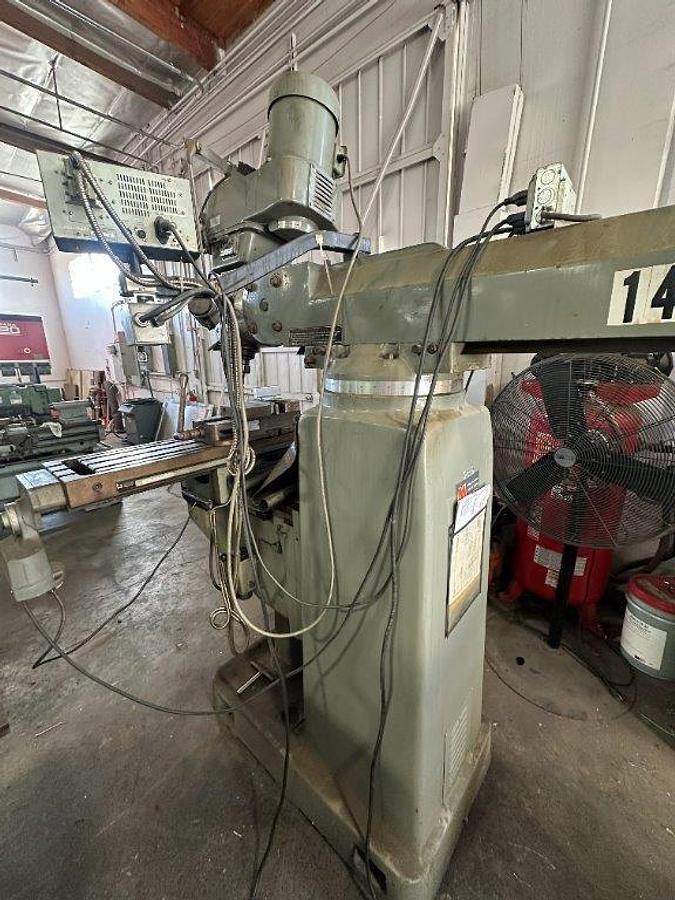

Taiwanese Vertical Milling Machine
No longer available
Taiwanese Vertical Milling Machine
Location:Santa Ana, CA
Equipped With
Equipped with:

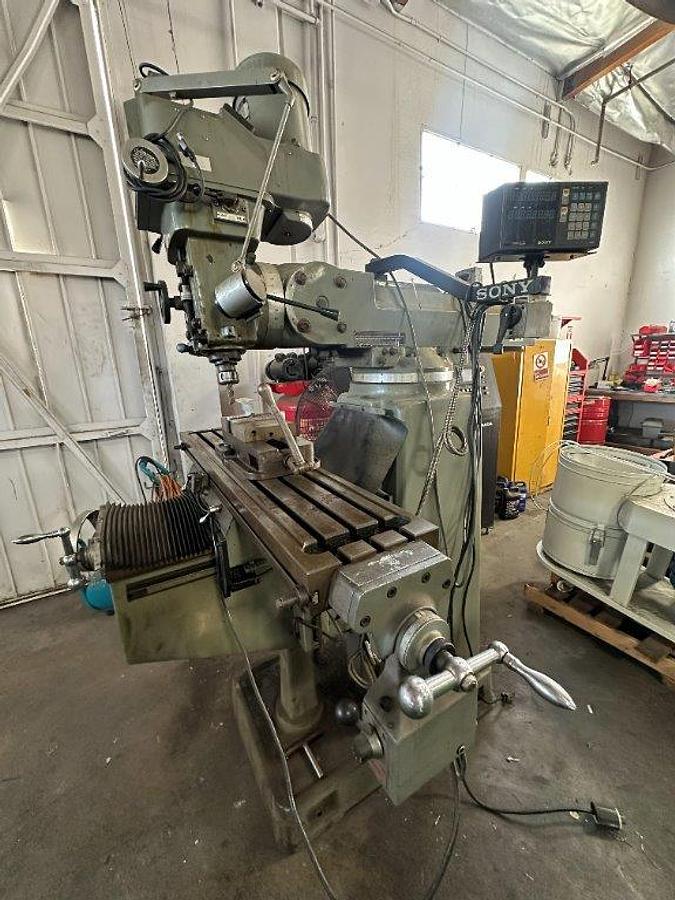

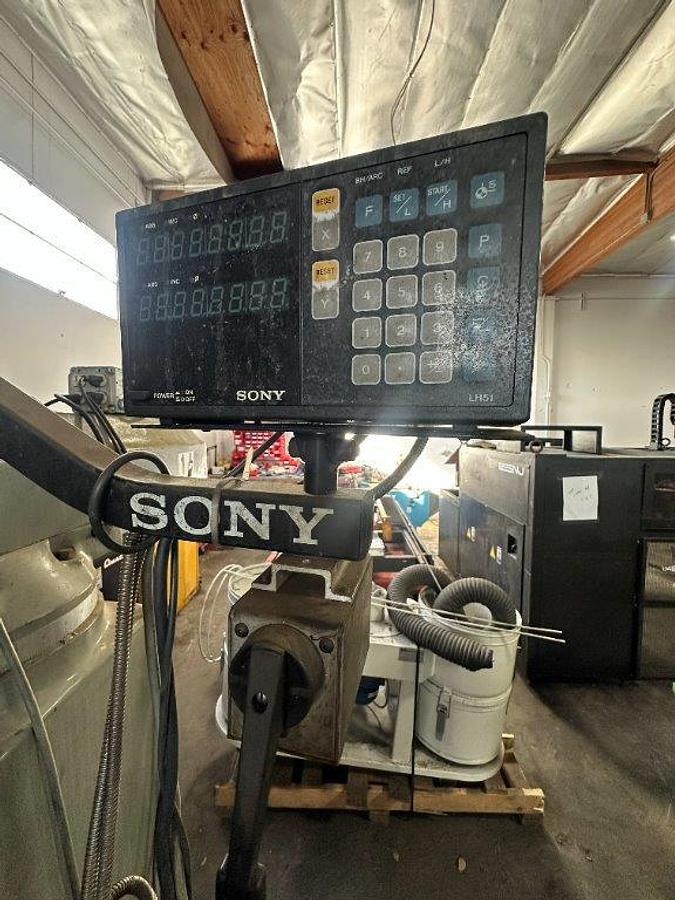

Sony DRO
Power Feed on X-Axis and Knee

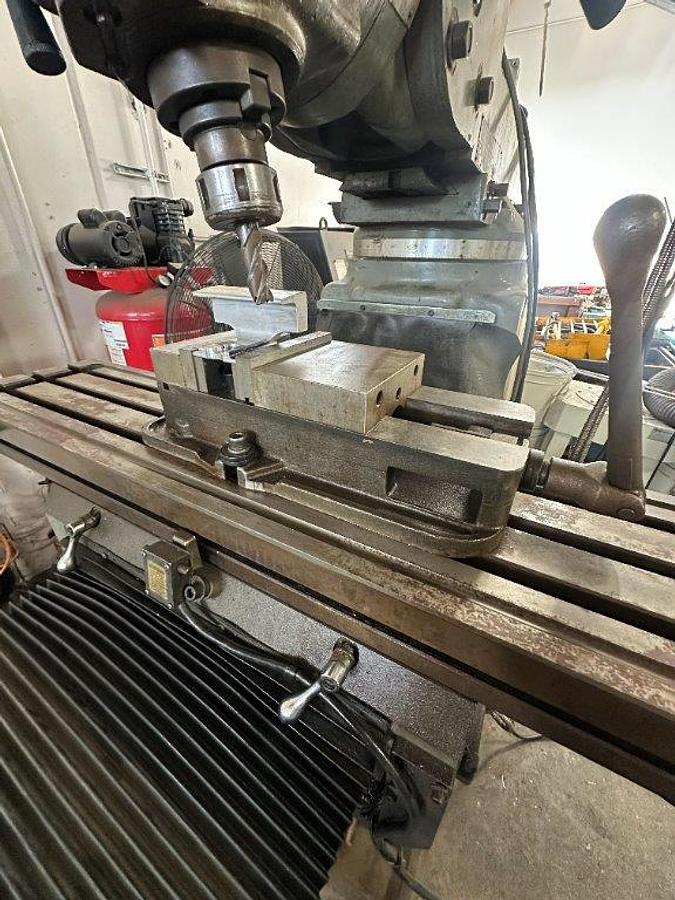

6" Kurt Vise
Drill Chuck
Specifications
| Model | 5V |
| Condition | Used |
| Stock Number | 13164 |
| Table Size | 10" x 50" |
| X Axis Travel | 36" |
| Y Axis Travel | 17.5" |
| Spindle Travel | 5" |
| Knee Travel | 17.5" |
| Spindle Taper | 40 Taper |

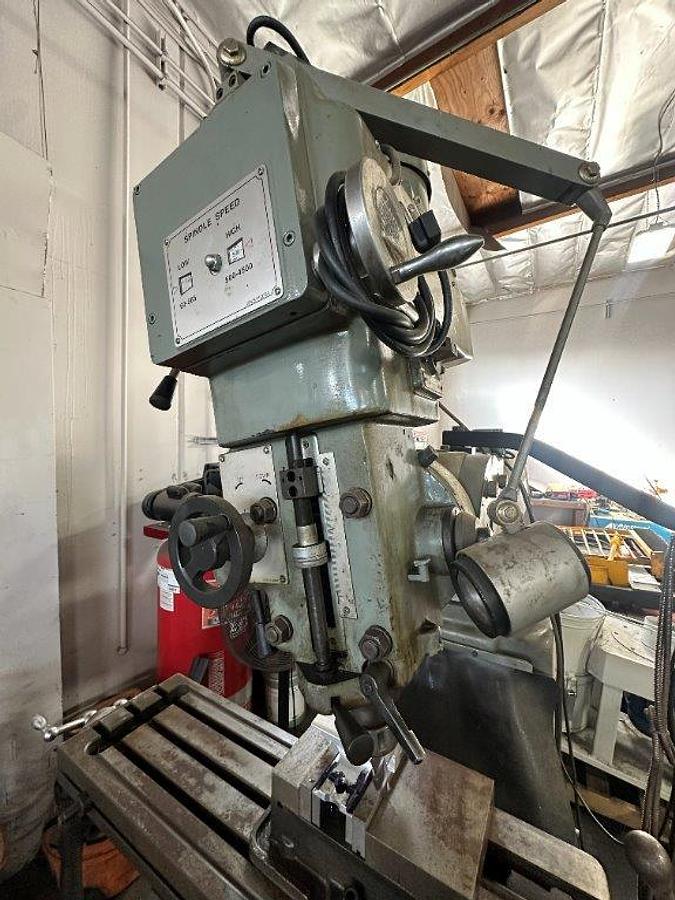

| Spindle Speed | 60-4200 RPM (Variable) |
| Main Motor | 5 HP |
| Overall Dimensions (approx.) | 6' x 6' x 8'H |
| Weight (approx.) | 3,600 lbs. |
