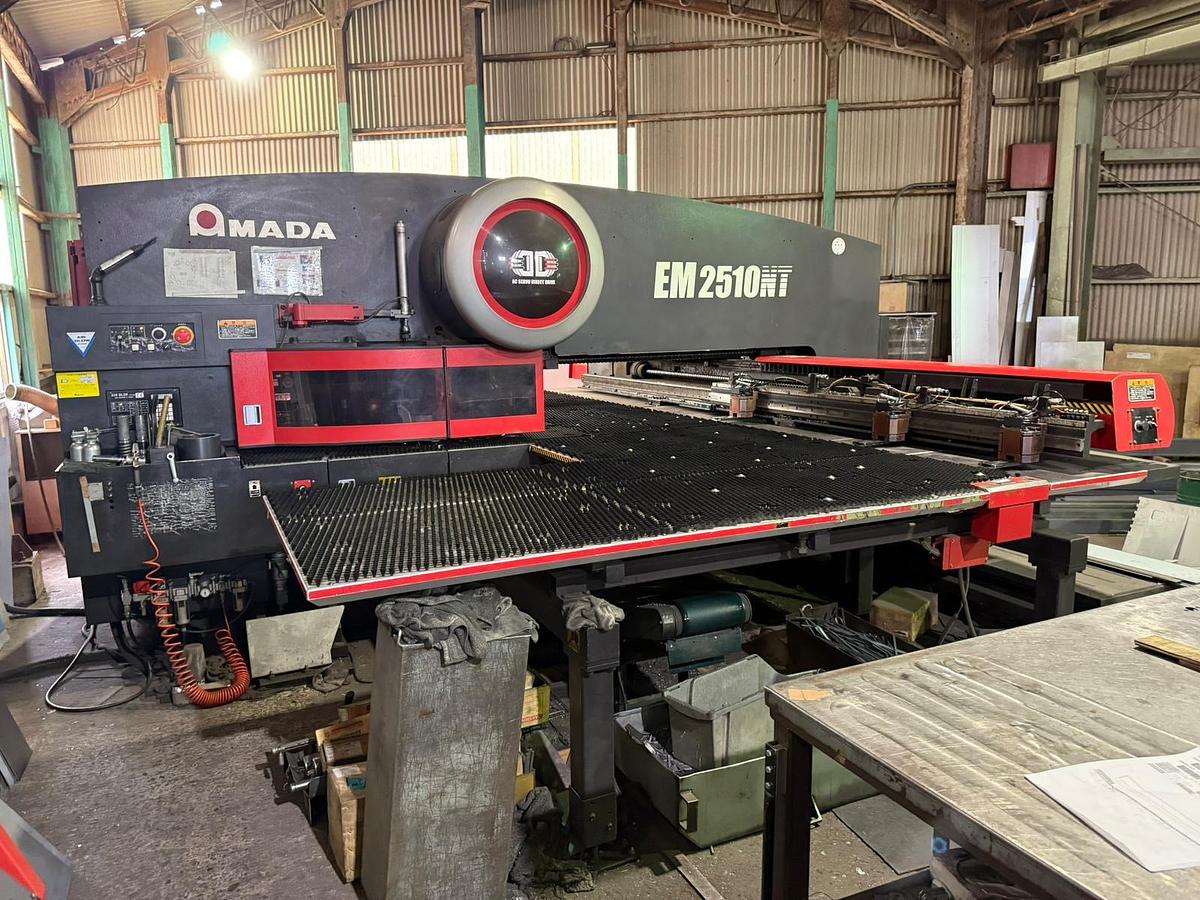

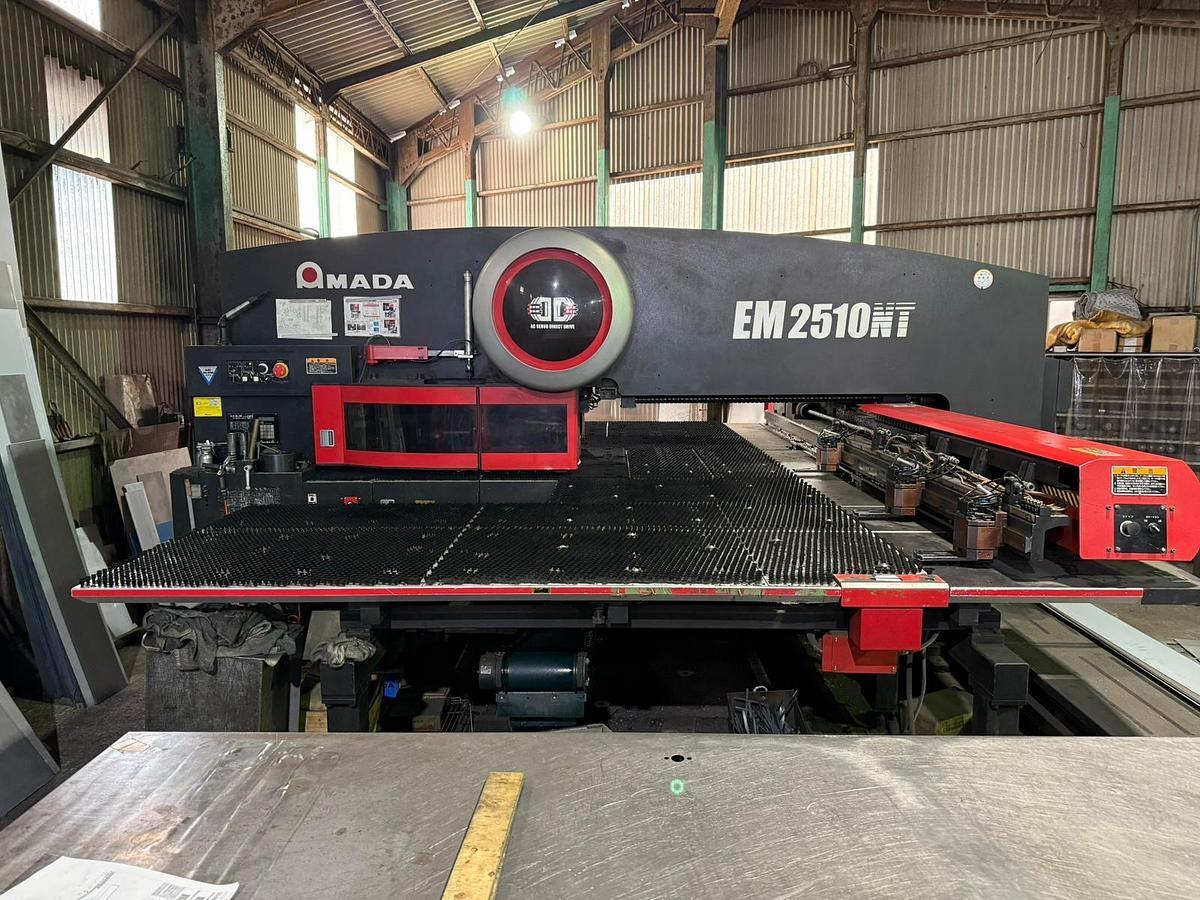

2013 - 22 Ton Amada EM-2510NT Servo Driven Turret Punch
2013 - 22 Ton Amada EM-2510NT Servo Driven Turret Punch
Location:Japan
or
Call (714) 545-0940
Equipped With
Equipped With:

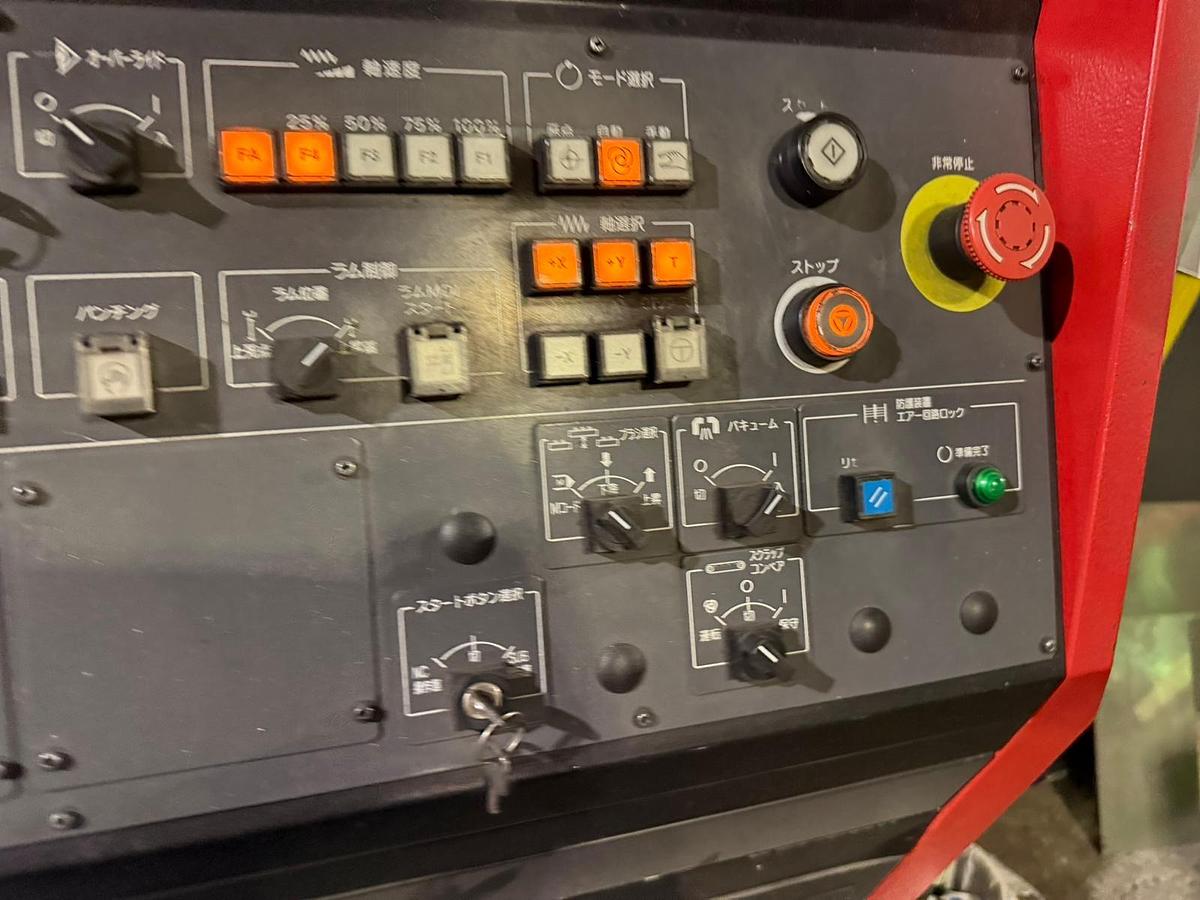

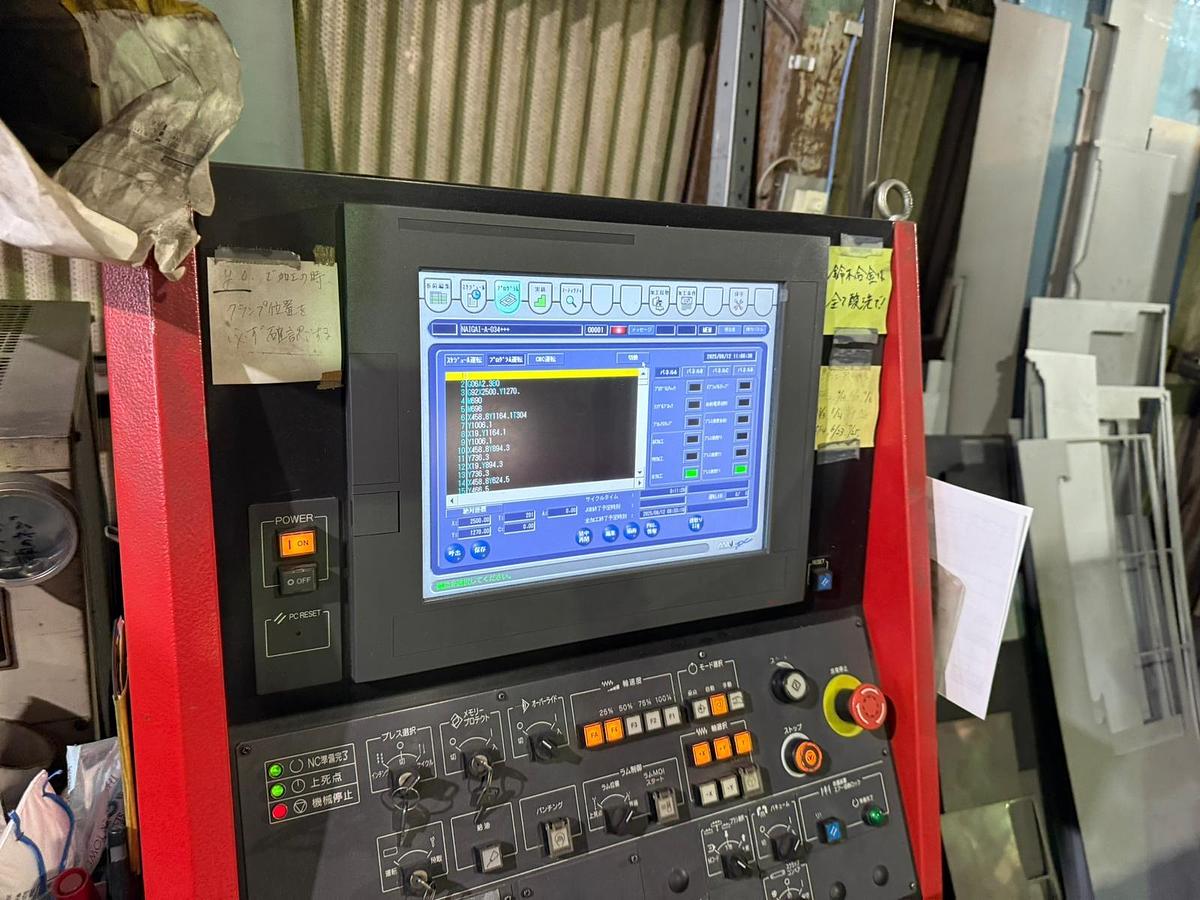

NT Control

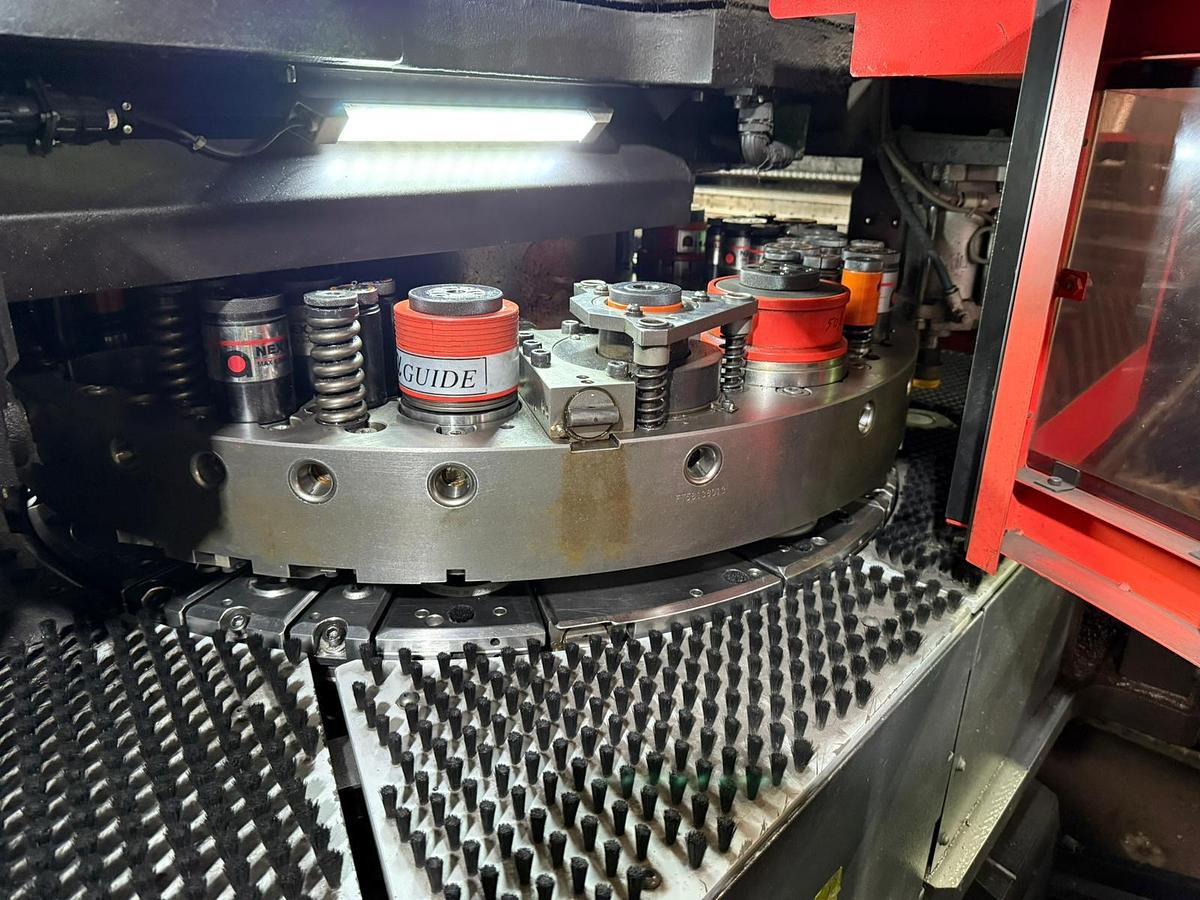

58 Station Turret
3 Work Clamps

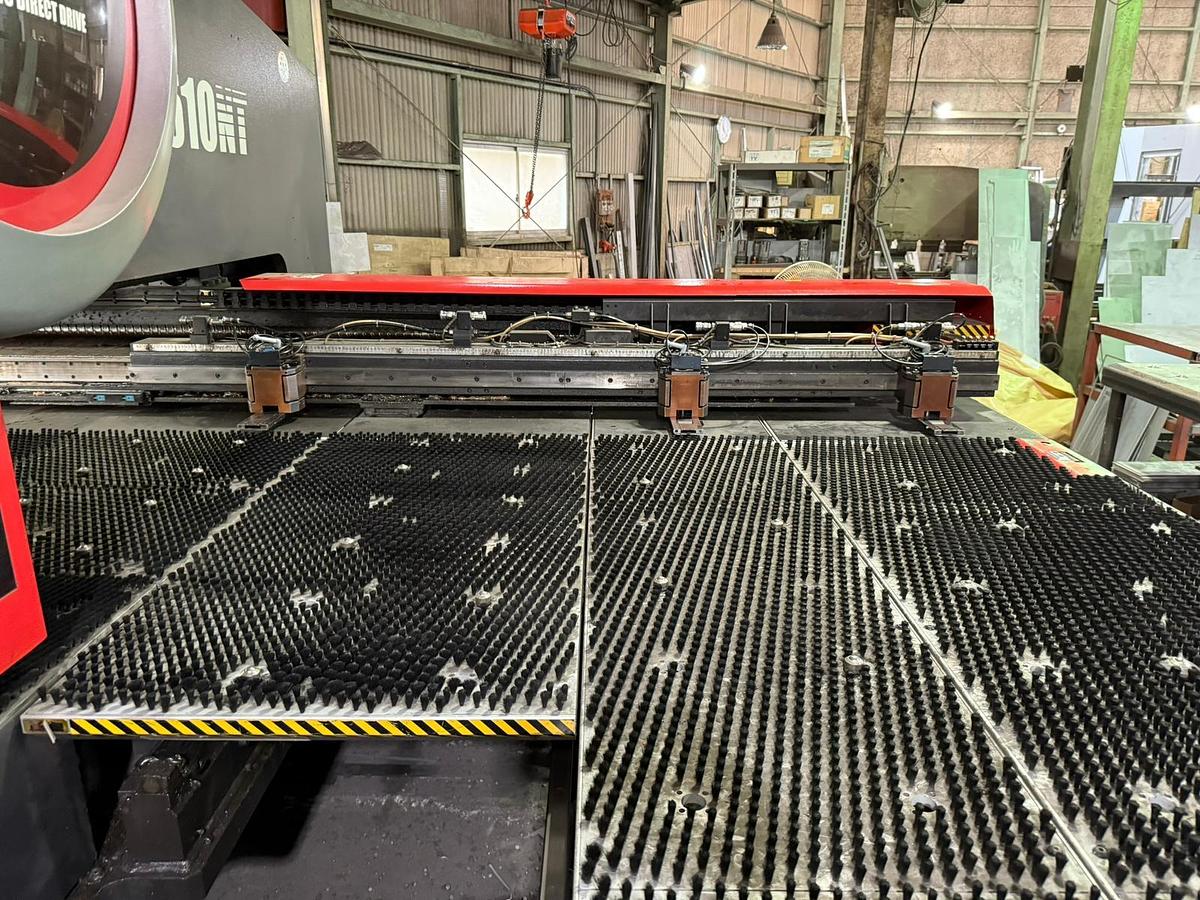

Brush Table Sections
Specifications
| Manufacturer | Amada |
| Model | EM-2510NT |
| Year | 2013 |
| Condition | Used |
| Stock Number | 13158 |
| Capacity | 22 Tons |
| Max Sheet Size | 50" x 196" |
| Throat Depth | 50" |
| Travels X Axis | 100" |
| Travels Y Axis | 50" |
| Stroke | 1.45" |
| Turret Style | Thick |
| X Axis Speed | 3950"/ min |
| Y Axis Speed | 3150"/ min |
| Feed Clearance | .984" |
| Overall Dimensions (approx.) | 20' x 18' x 8'H |
| Weight (Approx) | 40,000 lbs. |
