14 Ga. x 10' GMC HSB-1014 Hydraulic Box & Pan Brake
14 Ga. x 10' GMC HSB-1014 Hydraulic Box & Pan Brake
Location:Ontario, CA
or
Call (714) 545-0940
Equipped With
Standard Features:
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement

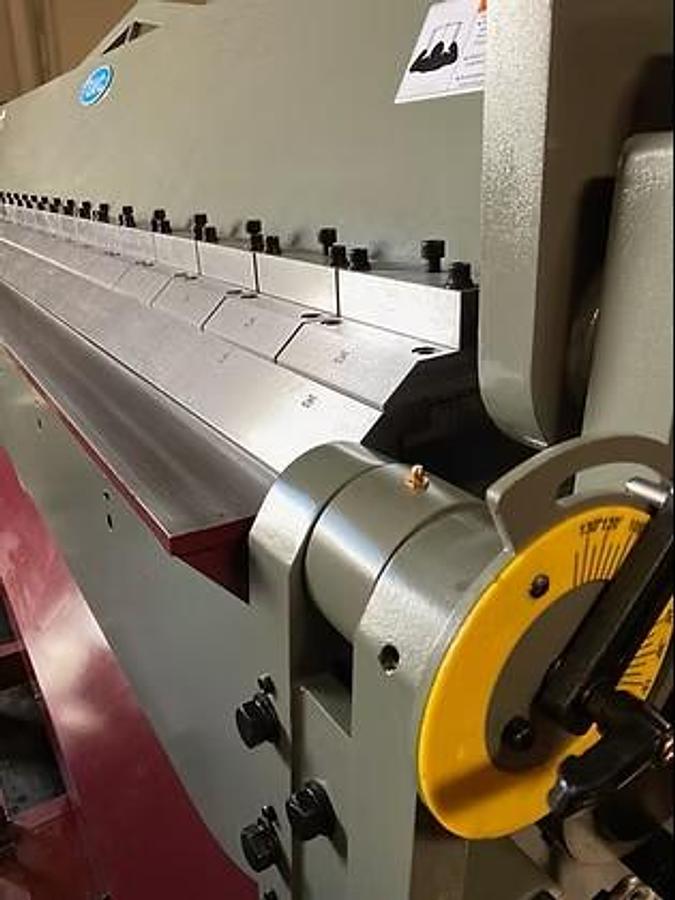

- Comes with one 10’ straight finger installed
- One set of assorted fingers 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs (boxed)

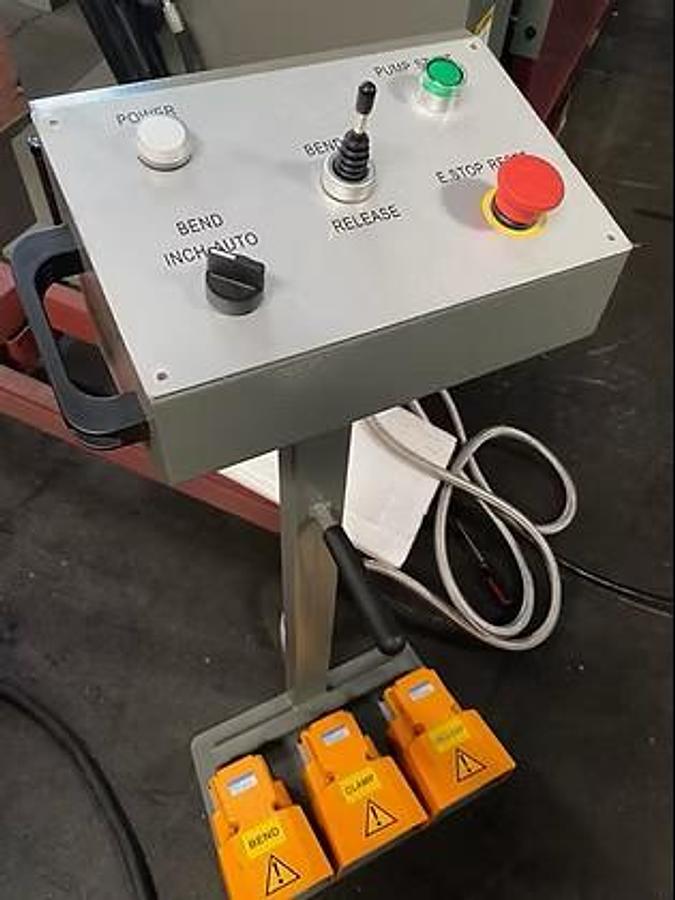

- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts
Standard Equipment:

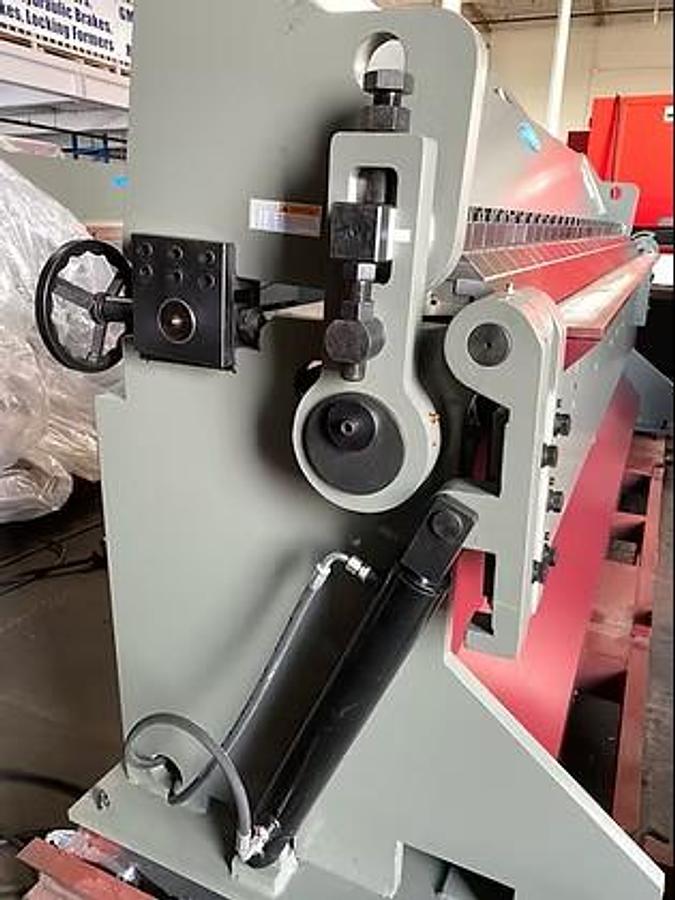

- 26” manual back gauge with one side handwheel operation

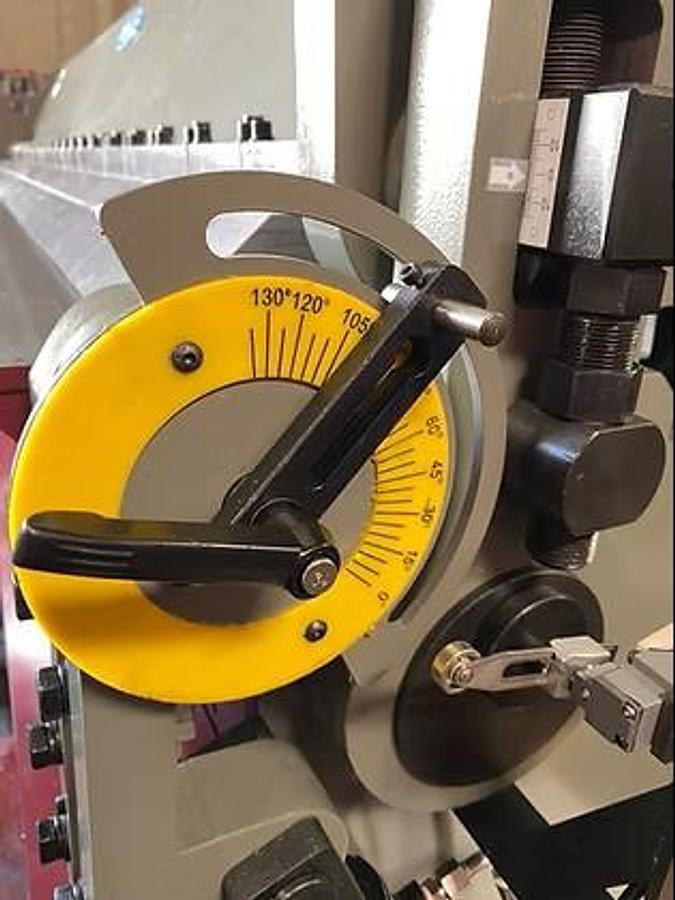

- Angle set up dial
- Hydraulic clamping system
- Foot pedal control for hydraulic clamping & auto mod
Specifications
| Manufacturer | GMC Machine Tools |
| Model | HSB-1014 |
| Condition | New |
| Stock Number | HSB-1014 |
| Bending Capacity | 14 Ga. (mild steel), 16 Ga. (stainless steel), 10 Ga (soft aluminum) |
| Max Bending Length | 120" |
| Open Hem max thickness | 22 Ga. |
| Close hem max thickness | 28 Ga. |
| Min Material Thickness | 26 Ga. |
| Finger Length | 10' 1" |
| Bend Degree | 135 |
| Large Beam Opening | 3" |
| Manual Back Gauge | 26" |
| Oil Tank Capacity | 17 Gal. |
| Electrical | 220VAC, 20A (optional 440VAC, 10A) |
| Main Motor | 5 HP, 3 Phase |
| Weight (approx) | 6,850 lbs. |
| Overall Dimensions | 142 x 46 x 66"H |
