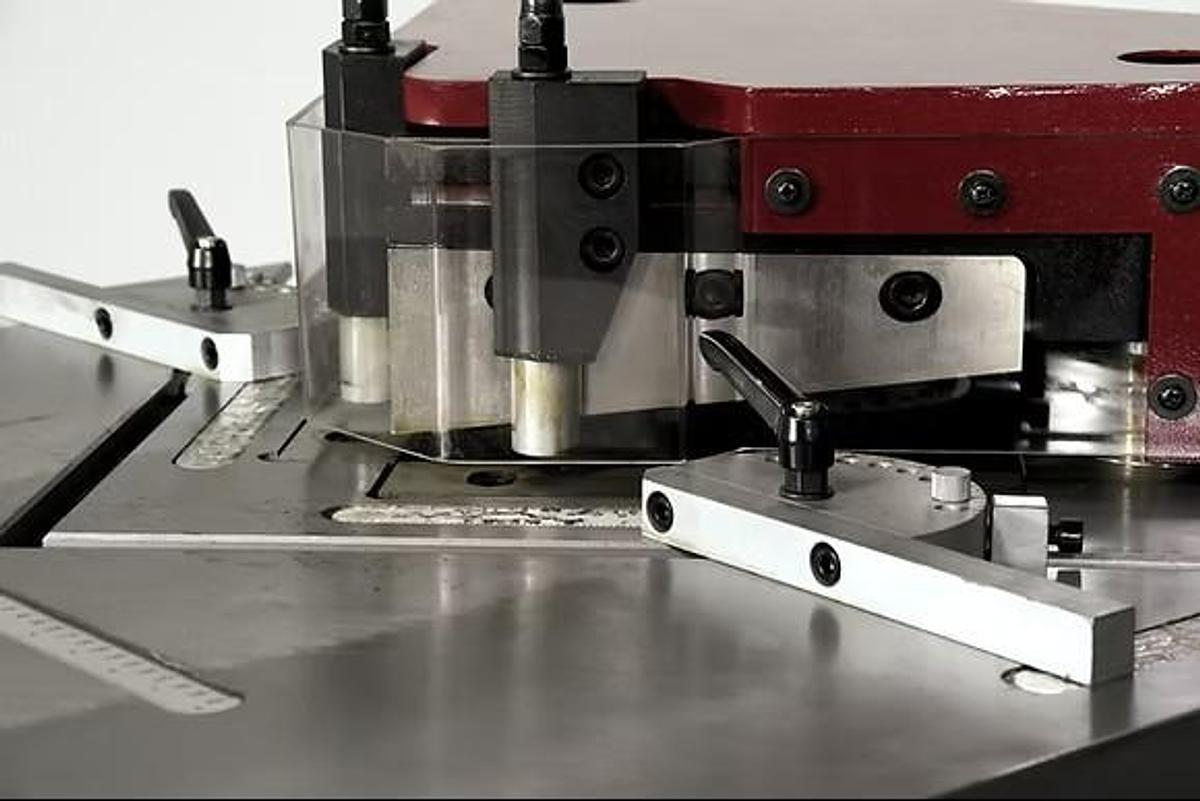

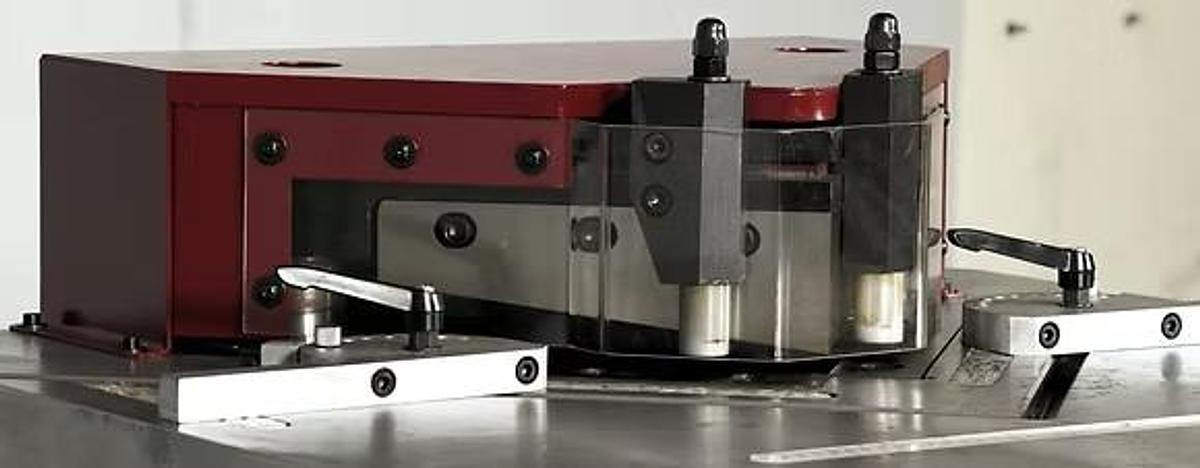

1/4" x 10" GMC HN-25HA Hydraulic Sheet Metal Notcher w/Fixed Angle

1/4" x 10" GMC HN-25HA Hydraulic Sheet Metal Notcher w/Fixed Angle

Location:Ontario, CA

or
Call (714) 545-0940

Equipped With

Standard Features:

  • ISO 9001 certified
  • Super large table
  • Milled table surface with engraved scales on left and right side of the table top
  • 12” combination hold down and stop bars
  • All steel construction
  • Safety finger guards
  • (2) quick change gauges
  • Foot pedal control
  • Quiet hydraulic system
  • One year warranty


Specifications

ManufacturerGMC Machine Tools
ModelHN-25HA
ConditionNew
Stock NumberHN-25HA
Max Cutting Length10"
Max Capacity Mild Steel1/4"
Max Capacity Stainless Steel3/16"
Min Notching Thickness22 Ga.
Notching Angle, Fixed90 degree
Stroke per Minute27
Table Dimensions33 x 27
Oil Tank Capacity9 Gal.
Main Motor7.5 HP, 3 Phase, 220V/25A (optional 440V/15A)
Machine Dimensions39 x 38 x 49"
Machine Weight2650 lbs.
