6' GMC HBB-0610 Hydraulic Box & Pan Brake
6' GMC HBB-0610 Hydraulic Box & Pan Brake
Location:Ontario, CA
or
Call (714) 545-0940
Equipped With
Standard Features:
- Taiwan Machines
- ISO 9001 certified

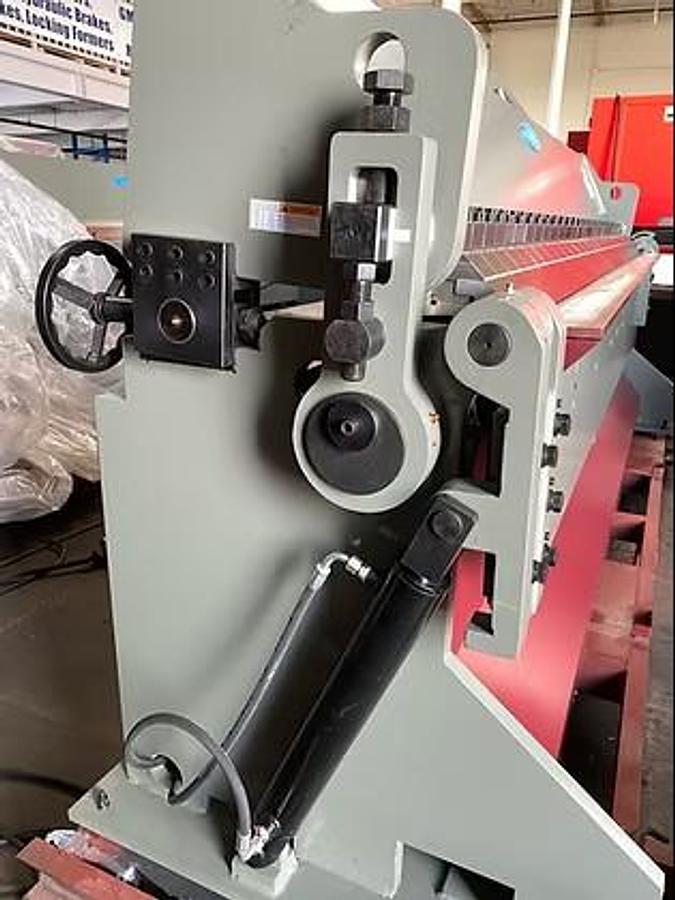

- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
- Total pieces fingers assortment:3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs

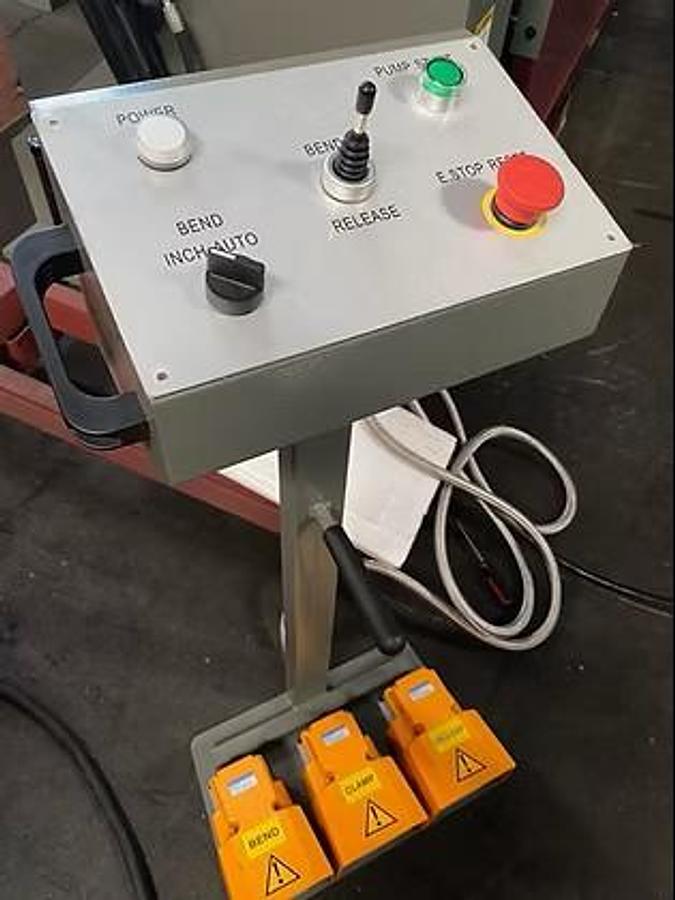

- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts
Standard Equipment:

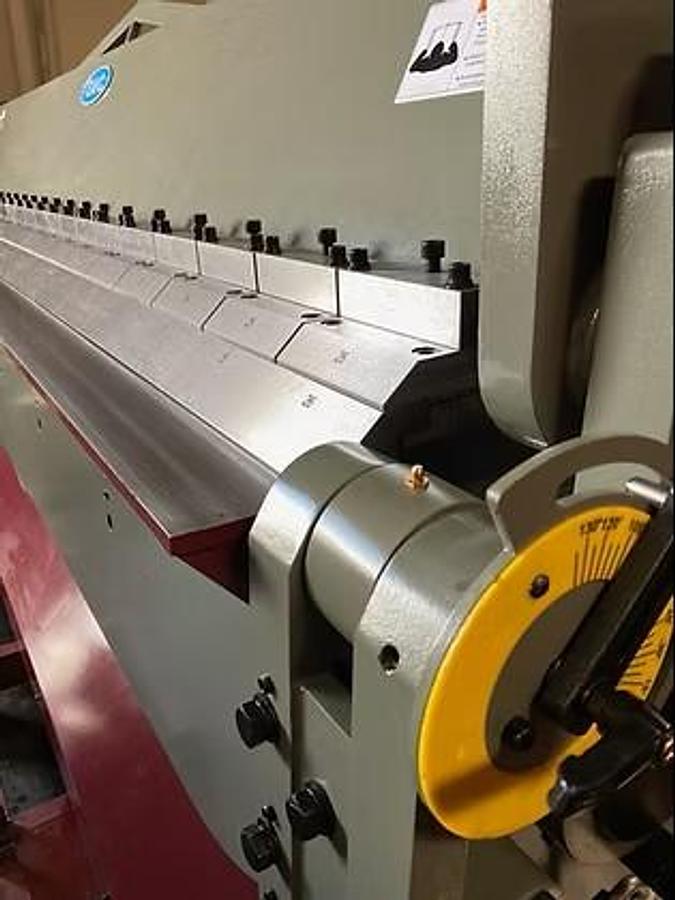

- Assorted fingers
- 26” manual back gauge with one side handwheel operation

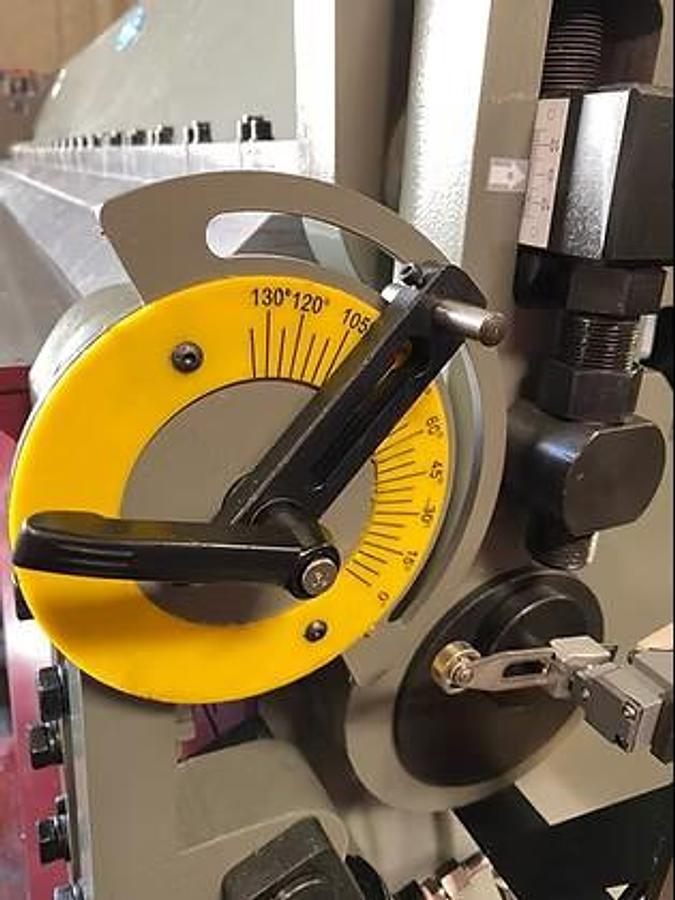

- Angle set up dial
- Hydraulic clamping system
- Foot pedal control for hydraulic clamping & auto mode
Specifications
| Manufacturer | GMC Machine Tools |
| Model | HBB-0610 |
| Condition | New |
| Stock Number | HBB0610 |
| Max Bending Length | 72" |
| Bending Capacity - HRS | 10 Ga. |
| Bending Capacity - Stainless Steel | 12 Ga. |
| Bending Capacity - Soft Aluminum | 1/4" |
| Min Material Thickness | 26 Ga. |
| Opening hem max thickness | 16 Ga x 72" |
| Closing hem max thickness | 26 Ga x 72" |
| Max Box & Pan Depth | 6.02" (153mm) |
| Large Beam Opening | 3" |
| Manual Go-To Back Gauge | 26" |
| Oil Tank Capacity | 12 Gal. |
| Main Motor | 5 HP, 3 Phase, 220V/15A (optional 440V/10A) |
| Machine Dimensions | 91 x 4 x 67" |
| Machine Weight | 5,000 lbs. |
