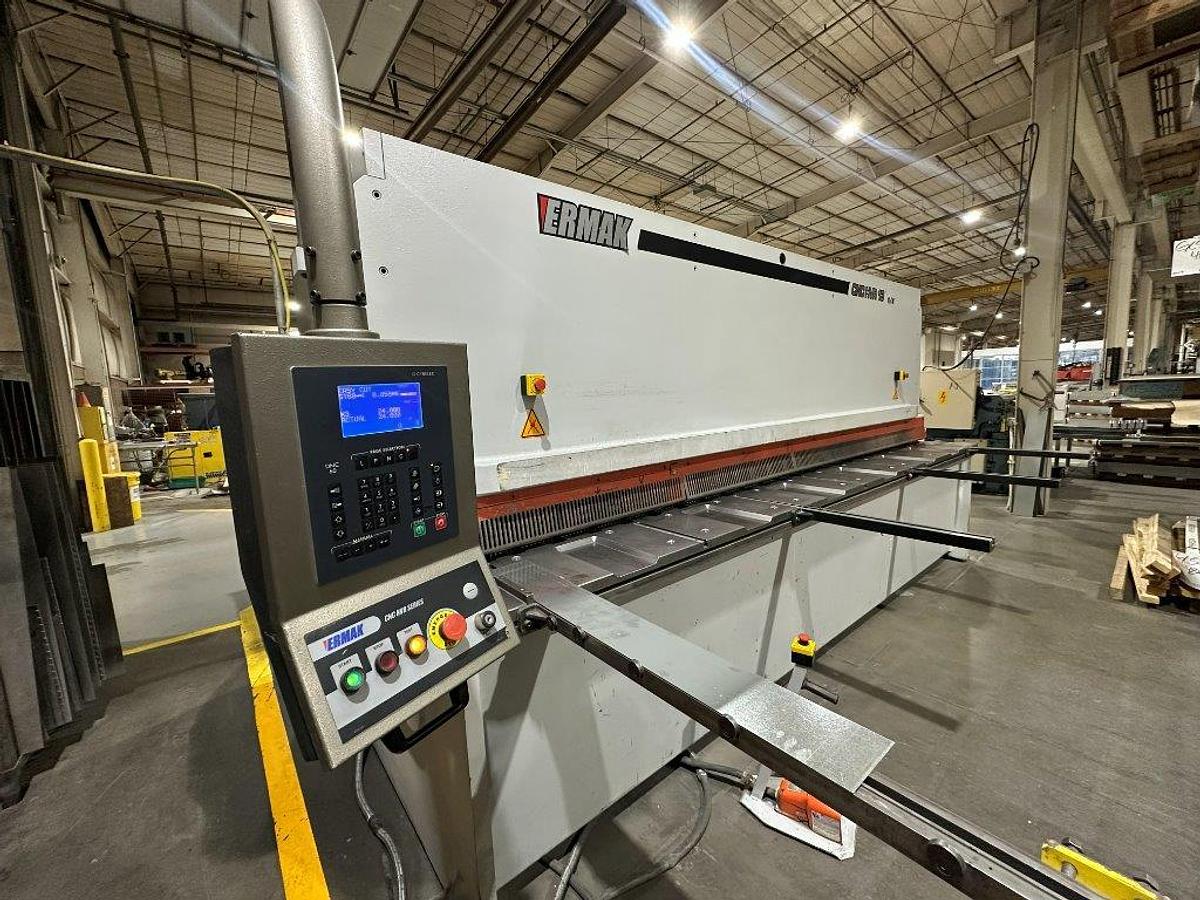

2008 - 3/8" x 13' Ermak CNC Hydraulic Shear

Equipped With:

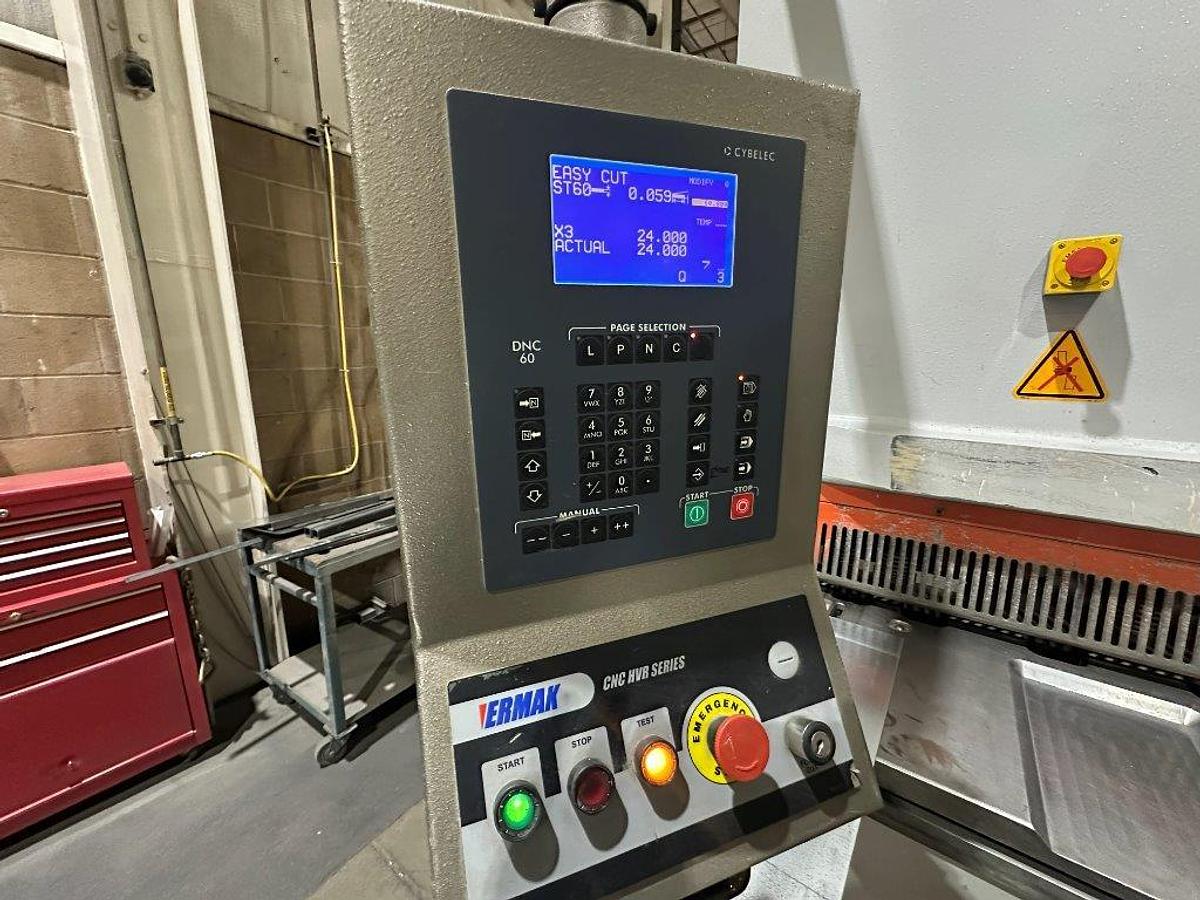

Cybelec CNC Control (BG length, Rake Angle Adj., Stroke Length Adj.)

Squaring Arm

(3) Support Arms

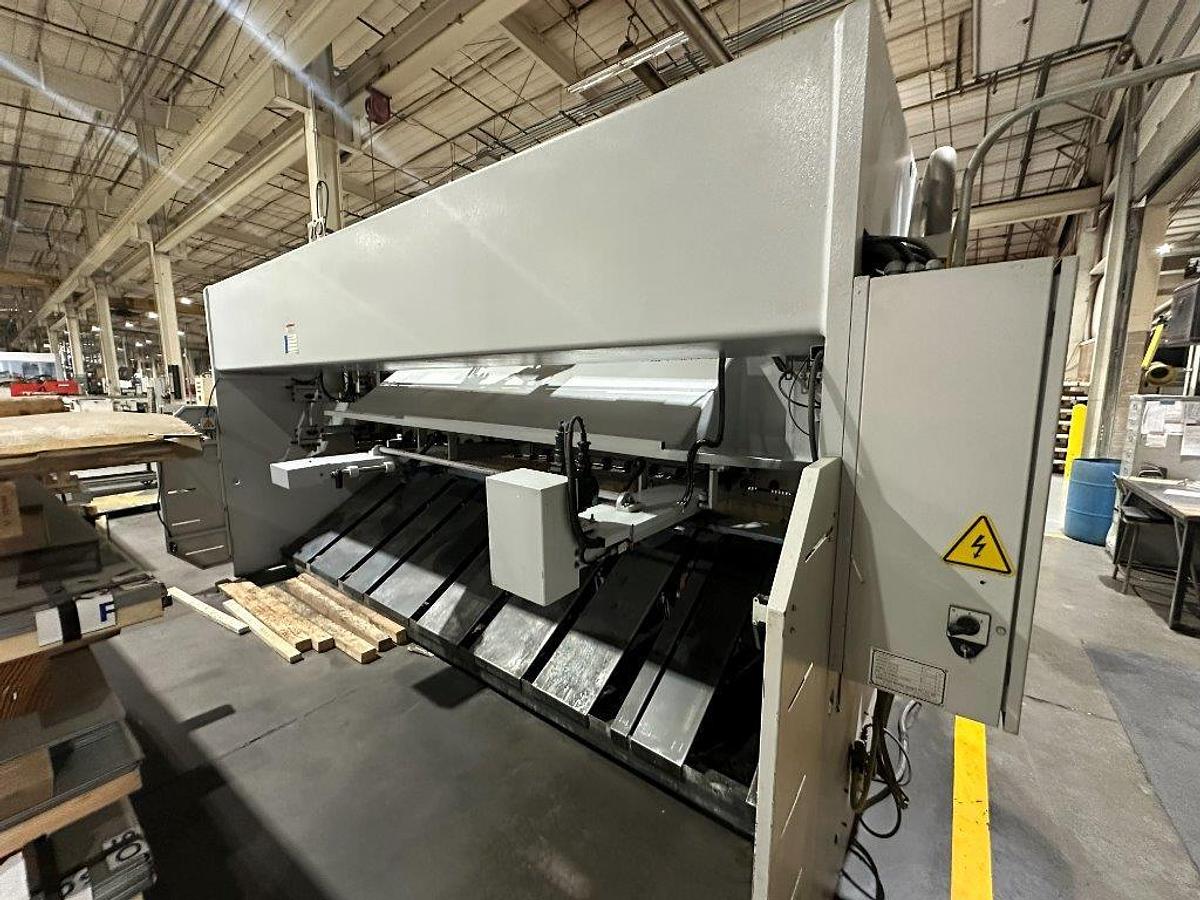

Rear Sheet Supports

Foot Pedal

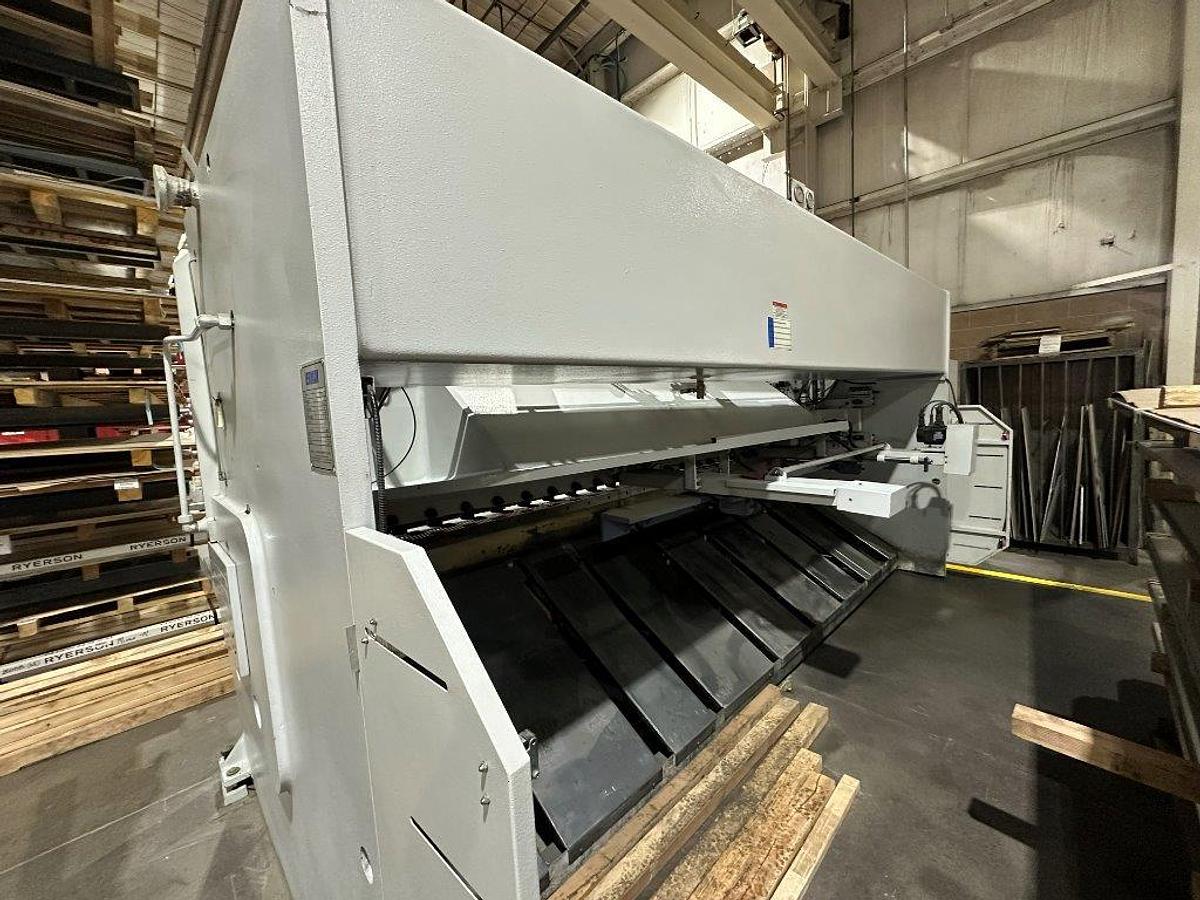

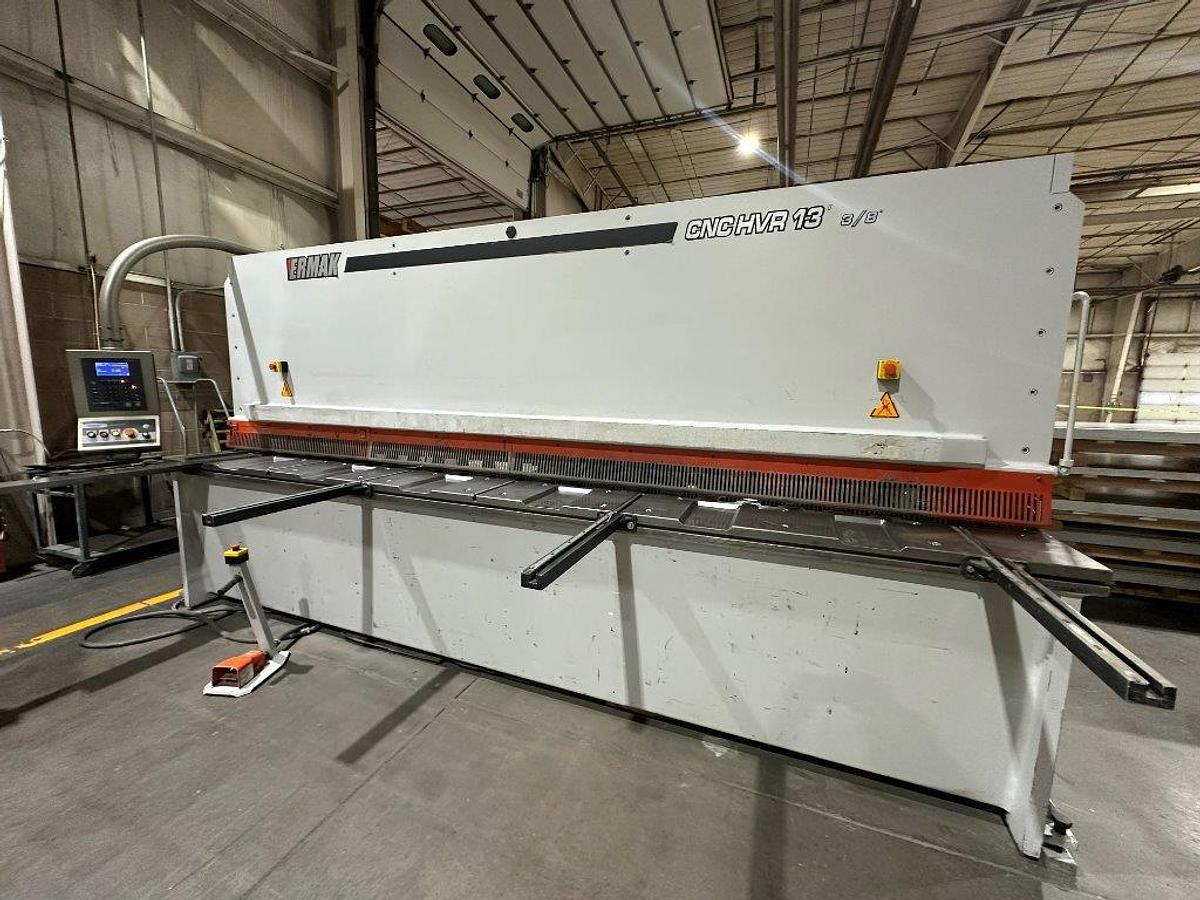

The 2008 Ermak CNC Hydraulic Shear, model HVR 13x3/8, is a used industrial machine known for its precision and reliability. It features a Cybelec CNC Control system allowing for adjustments in back gauge length, rake angle, and stroke length. With an overall cutting length of 161 inches, it capably handles materials up to 3/8 inch of mild steel and 1/4 inch of stainless steel. This shear includes essential components like a squaring arm, three support arms, rear sheet supports, and a foot pedal for ease of operation. The machine operates at a speed of 10 to 17 strokes per minute, powered by a 30 HP main motor, and includes an 18-hold-down system to ensure material stability during cutting. The back gauge offers a 39.4-inch stroke and moves at a speed of 4.33 inches per second, driven by a 1.5 HP motor. With dimensions of 182 x 90 x 98 inches and a weight of 34,000 pounds, this hydraulic shear is a substantial piece of equipment suitable for heavy-duty sheet metal processing tasks. The table height stands at 39.4 inches, offering a comfortable working level for operators.
