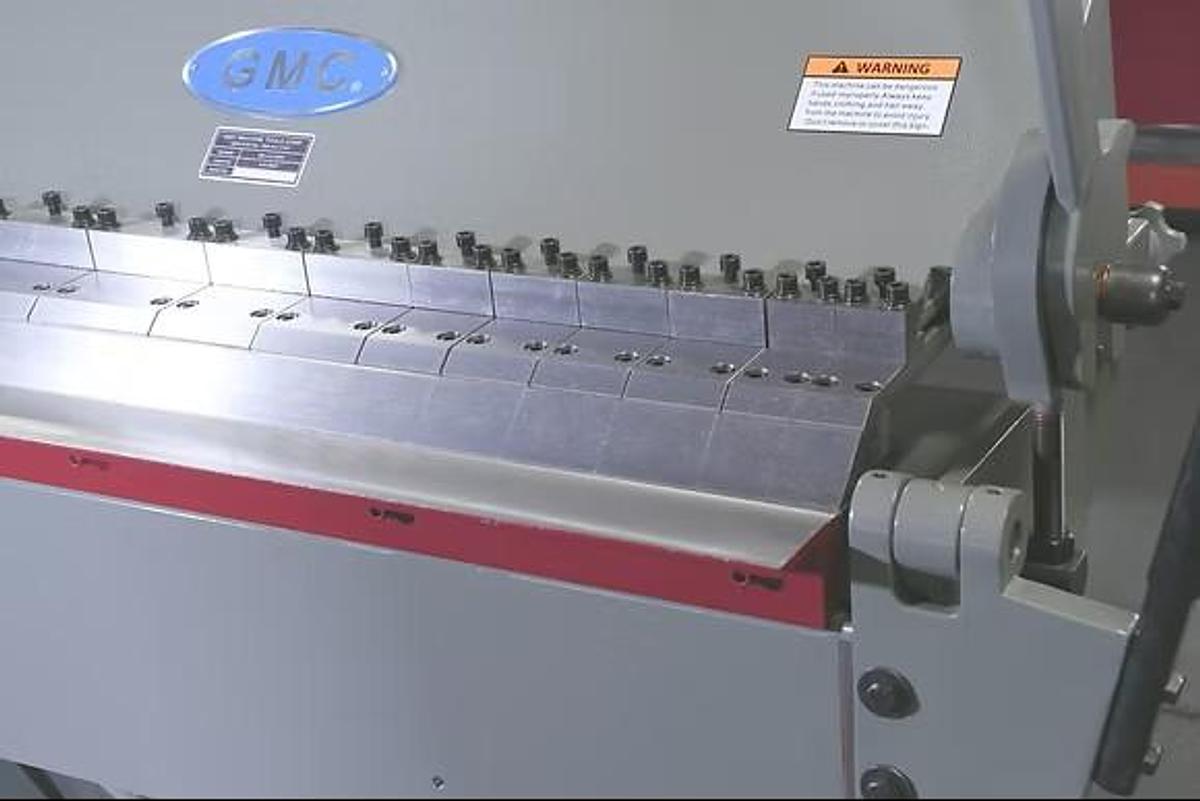

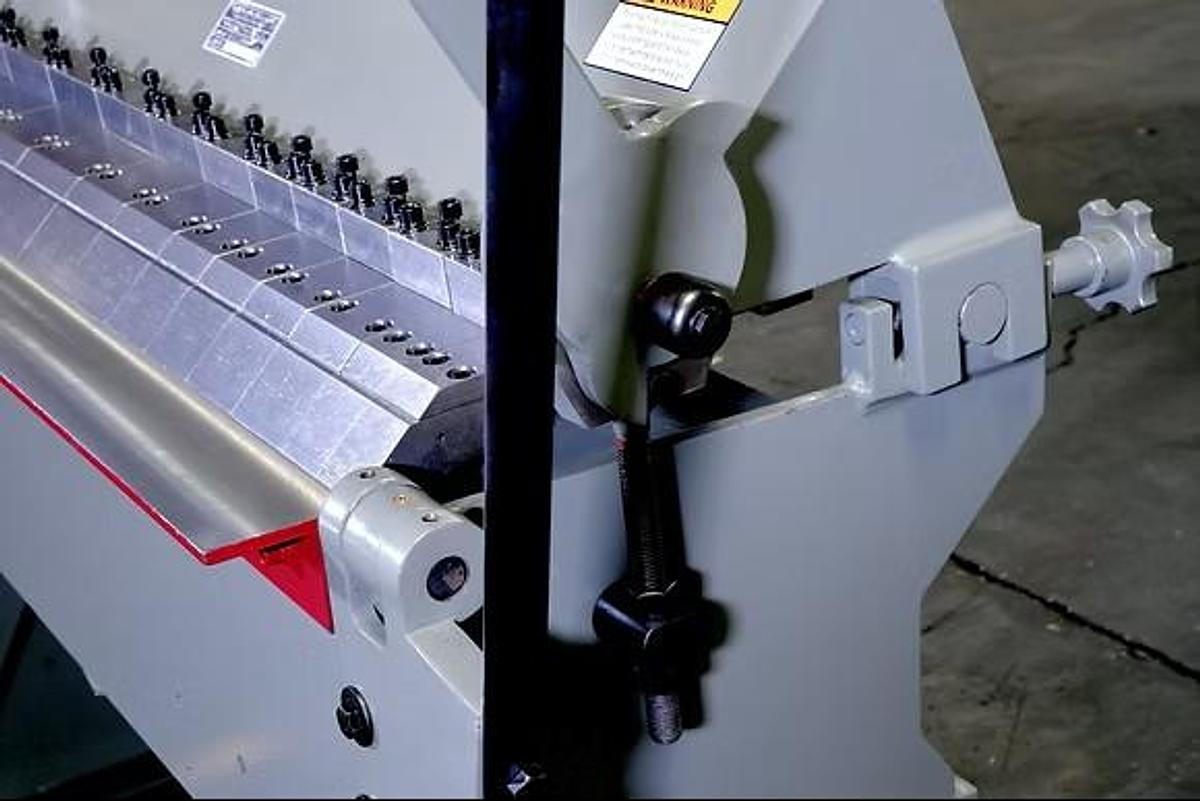

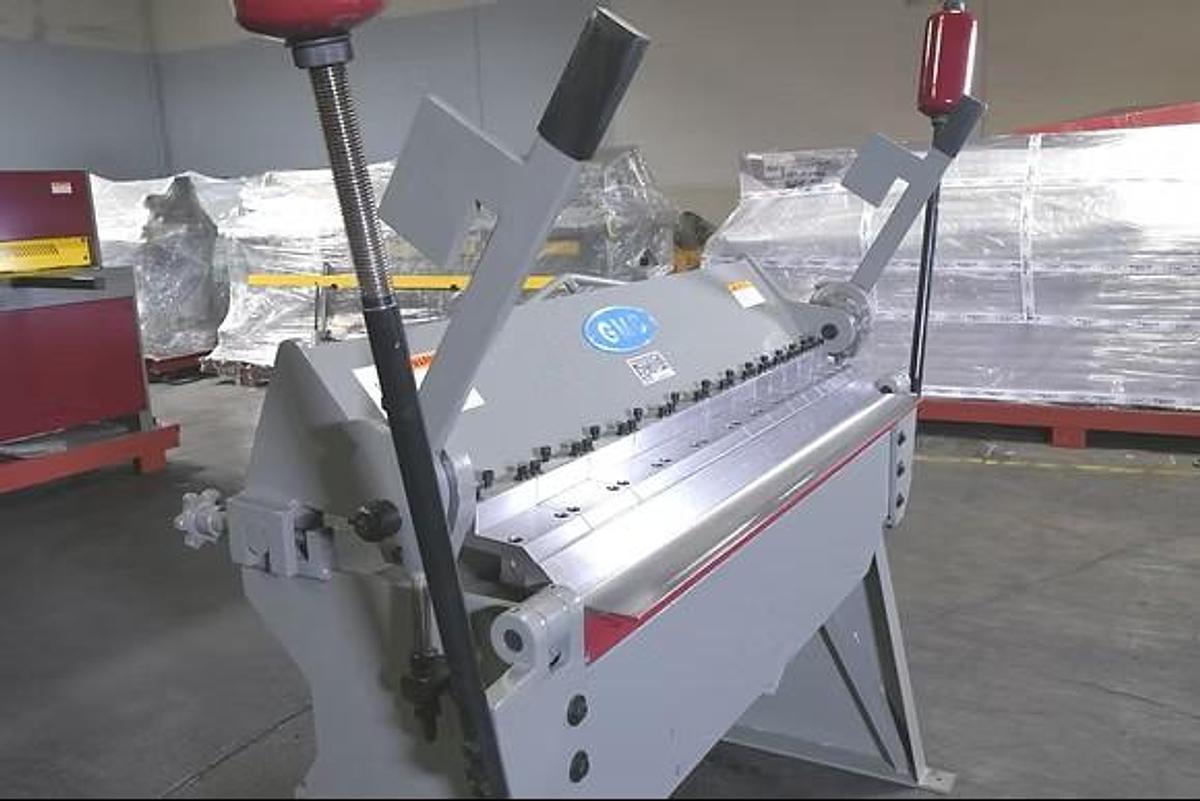

GMC BB-412-6HD 48" Manual Box & Pan Metal Finger Brake

GMC BB-412-6HD 48" Manual Box & Pan Metal Finger Brake

Location:Ontario, CA

or
Call (714) 545-0940

Equipped With

Standard Features:

  • ISO 9002 certified
  • 1-year parts only warranty
  • Large 1-9/16” beam opening, adjustable

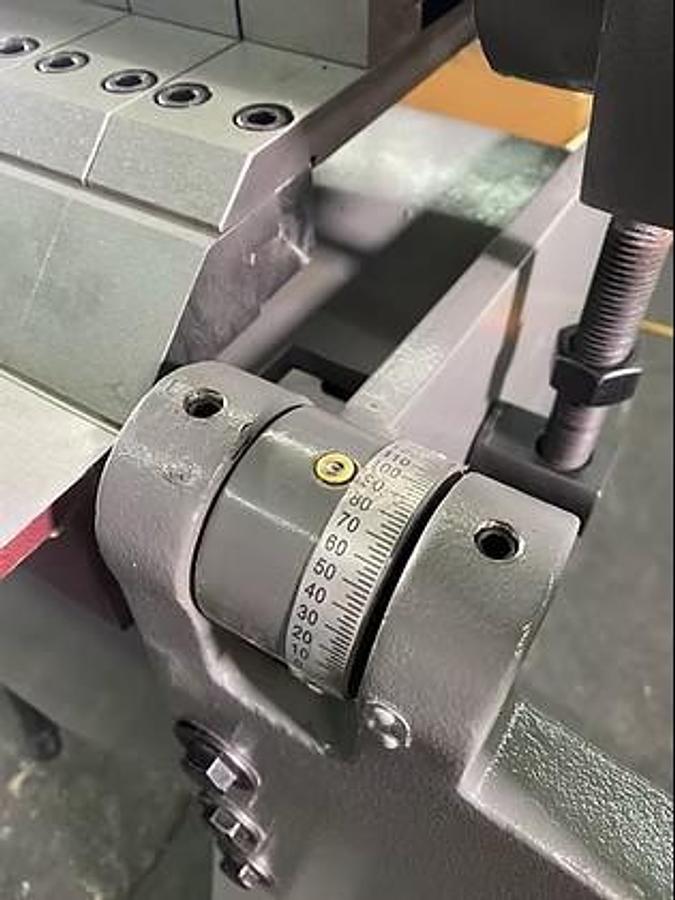

  • 135 degree bend angle capacity with built in scale
  • 2 - handwheels on the rear to ajust the gap
  • 1” beam adjustment (front and back)
  • Hem light gauge material 26 Ga. or thinner
  • 2 - 30 lbs. adjustable counterweights
  • May require 2 or more people
  • Includes 9 fingers total: (measures 49")
  • 2 - 2"
  • 4 - 3"
  • 2 - 4"
  • 1 - 25"
  • 1 - Simple stop rod is included to make repeat bends
  • All steel heavy body construction with extra heavy tie rod for minimum deflection



Specifications

ManufacturerGMC Machine Tools
ModelBB-412-6HD
ConditionNew
Stock NumberBB412-6HD
Bending Capacity12GA (mild steel); 16GA (stainless steel); 3/16" (soft aluminum)
Max. Hemming Thickness26 GA (mild steel)
Max. Box Depth6"
Bending Length Capacity48"
Bending angle0 - 135 degrees
Beam Adjustment, Front and Back1"
Min. Reverse Bend1/2"
Manual ClampingStandard
Beam Opening1 9/16"
Approx. Machine Weight1,150 lbs.
Overall Dimensions (approx.)82 x 32 x 69"H
