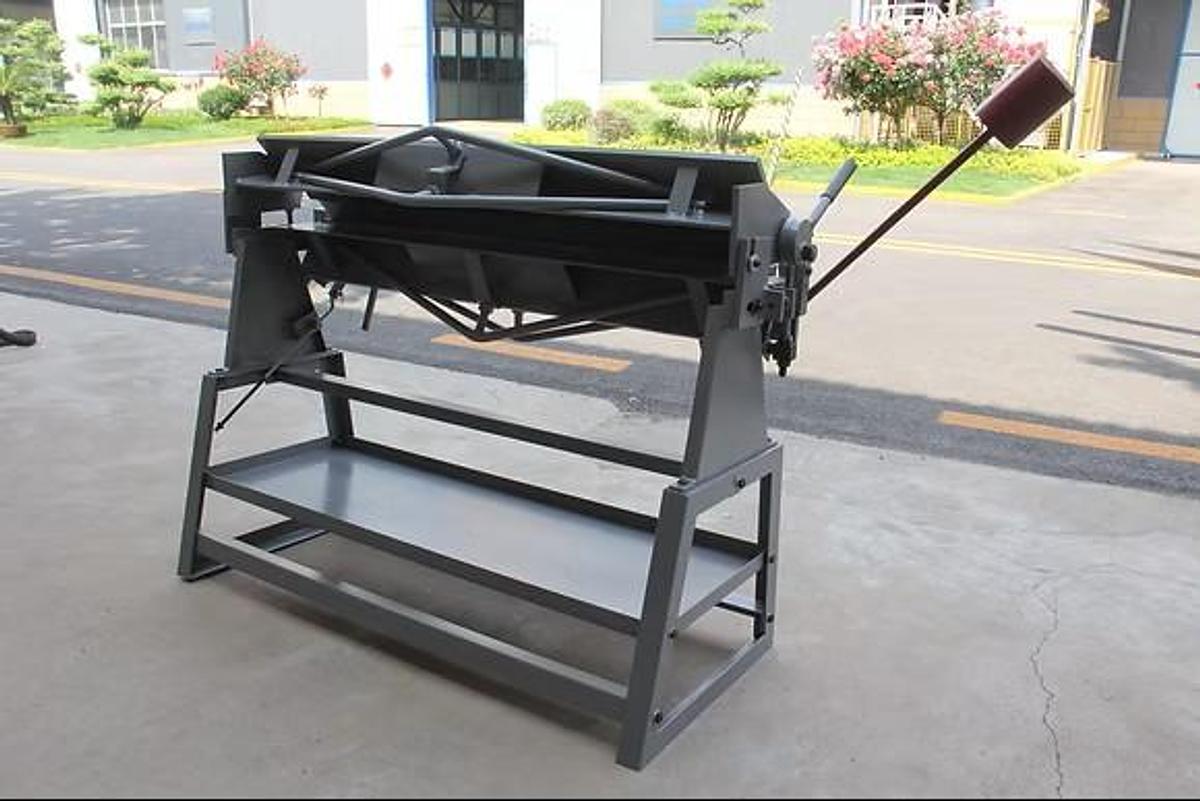

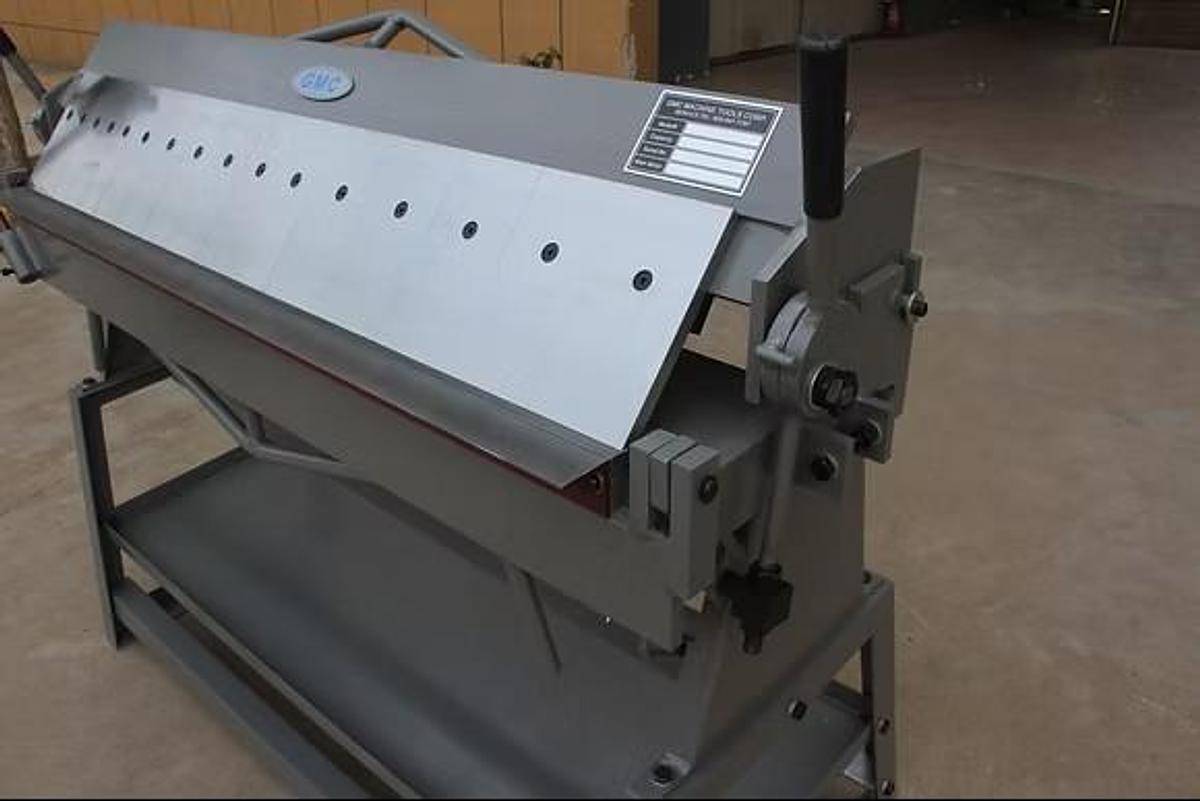

GMC BB-4816H 48" Manual Box & Pan Brake
GMC BB-4816H 48" Manual Box & Pan Brake
Location:Ontario, CA
or
Call (714) 545-0940
Equipped With
Standard Features:
- ISO 9002 certified
- Large 1-9/16” beam opening, adjustable
- 3/8” beam adjustment ( front and back )
- Very thick and long fingers to make max. 4” depth of box & pan.
- Total pieces fingers assortment:
- 2”/5pcs, 3”/6pcs, 4”/5pcs
- Stop rods for repeat bends
- Comes with one counter weight
- Comes with a tall floor stand, assembly required
- May require 2 or more people
- Comes a tray for holding removable fingers and tools
- All steel heavy body construction with extra heavy tie rod for minimum deflection
- One year warranty for parts
Specifications
| Manufacturer | GMC Machine Tools |
| Model | BB-4816H |
| Condition | New |
| Stock Number | BB4816H |
| Bending Capacity | 16 GA (mild steel); 20 GA (stainless steel); 28 GA (max. hemming thickness, mild steel) |
| Max. Box Depth | 4" |
| Bending Length Capacity | 48" |
| Bending angle | 0 - 135 degrees |
| Beam Adjustment, Front and Back | 3/8" |
| Min. Reverse Bend | 1/2" |
| Manual Clamping | Standard |
| Beam Opening | 1 9/16" |
| Approx. Machine Weight | 567 lbs. |
| Overall Dimensions (approx.) | 71 x 26 x 56" |
