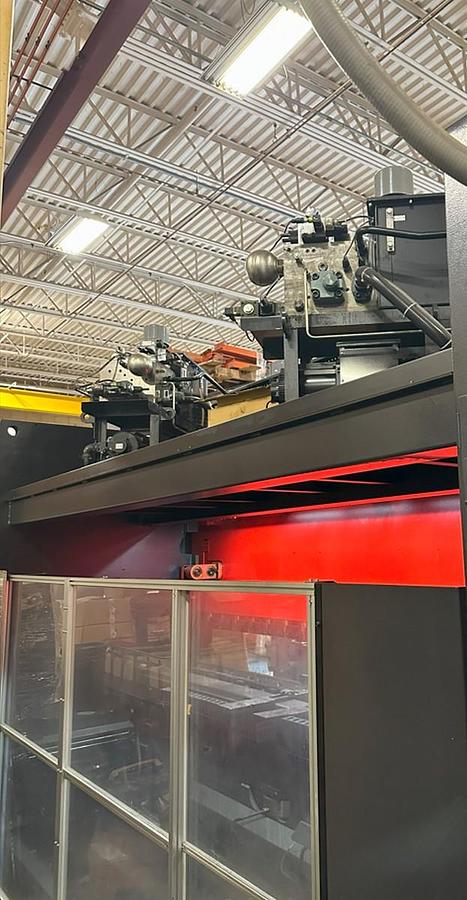

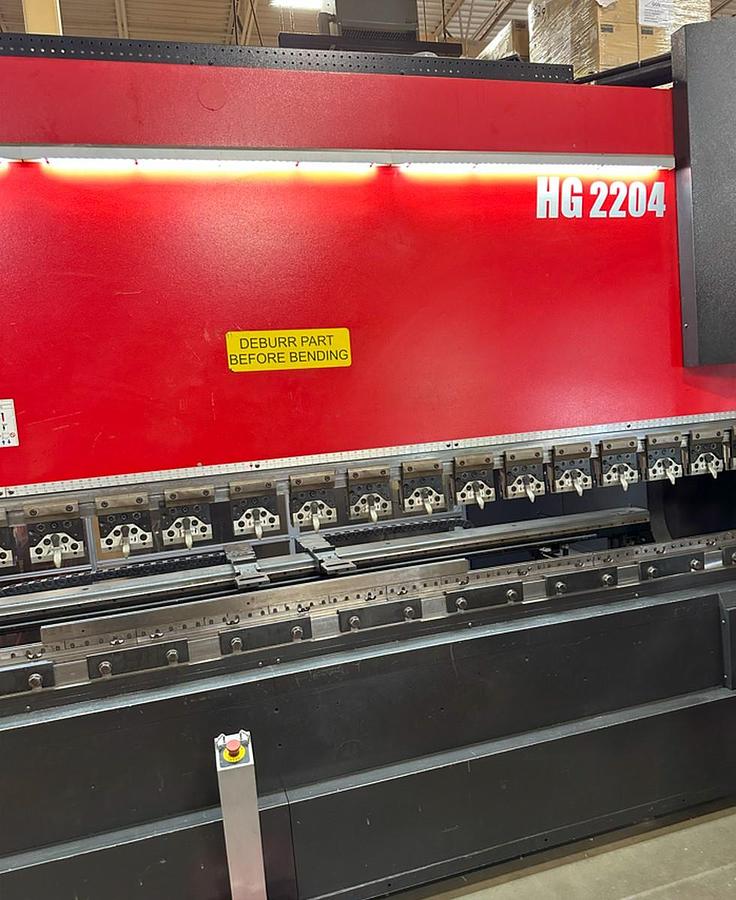

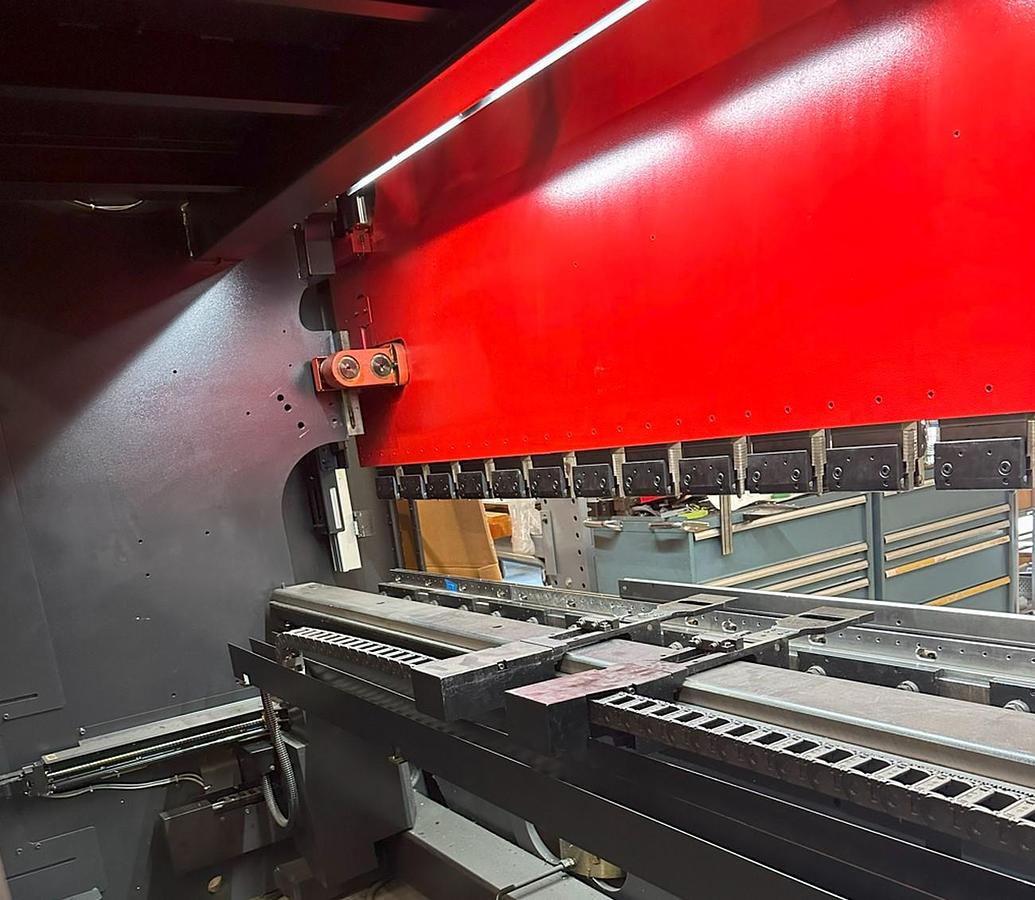

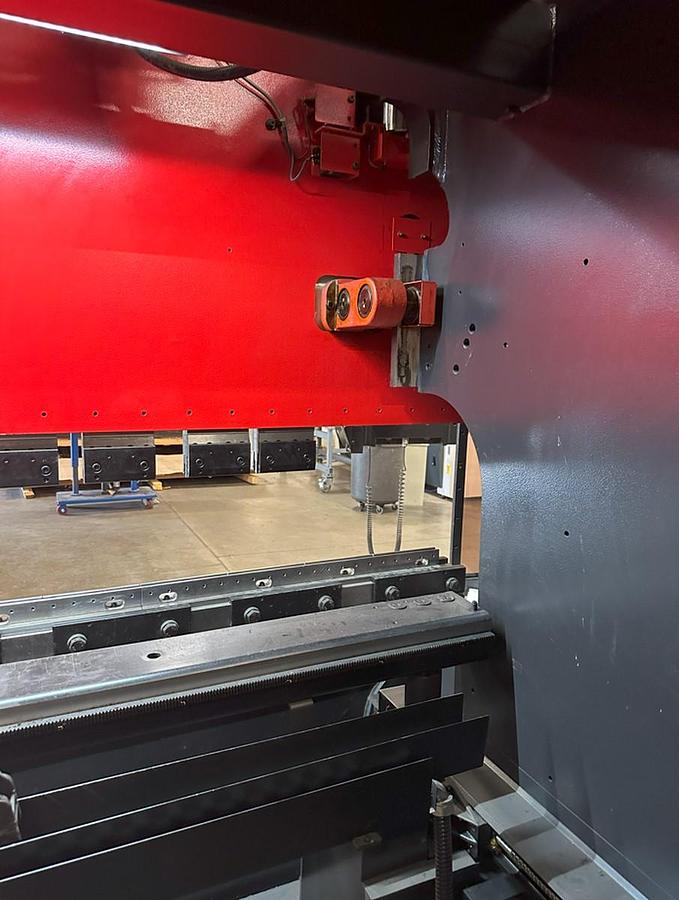

2016 - 242 Ton x 14' Amada HG-2204 CNC Press Brake
2016 - 242 Ton x 14' Amada HG-2204 CNC Press Brake
Location:United States
or
Call (714) 545-0940
Equipped With
Equipped with:

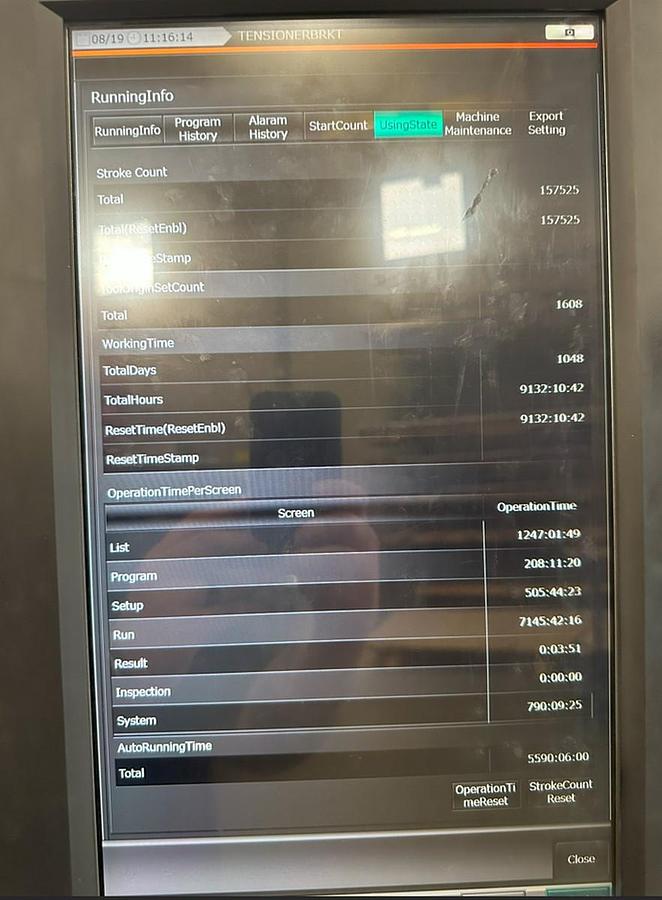

AMNC 3i Control
Full Set of Punch Holders
CNC Crowning
6 Axis Back Gauge

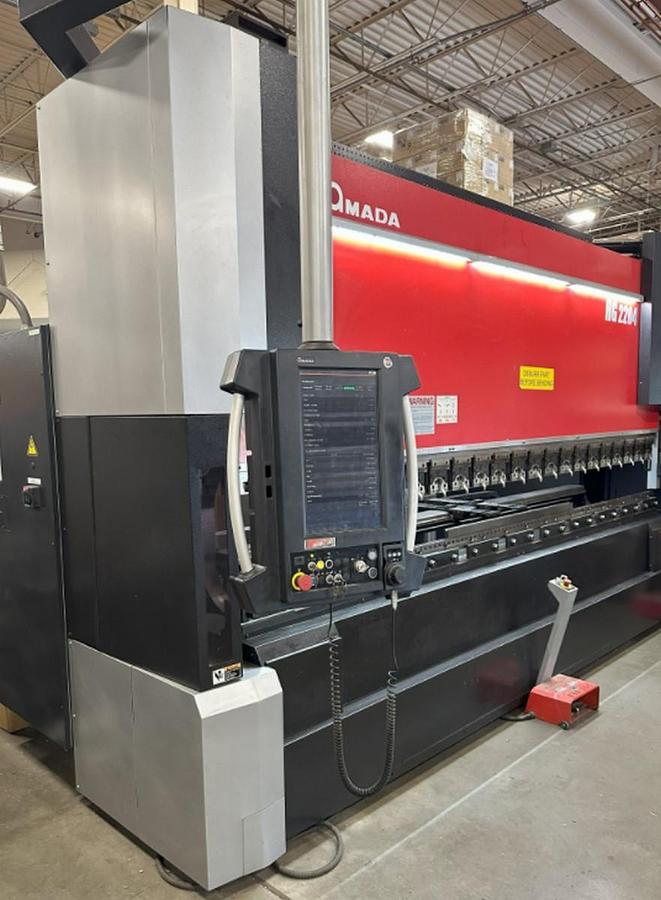

Pedestal Control
Light Curtains
Specifications
| Manufacturer | Amada |
| Model | HG-2204 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 13112 |
| Capacity | 242 Tons |
| Max Bending Length | 169.3" |
| Distance Between End Frames | 148" |
| Length of Stroke | 9.8" |
| Open Height | 20.5" (no holders) |
| Throat Depth | 17.7" |
| Table Height | 37.4" |
| Approach Speed | 8.7" per second |
| Bending Speed | 0.69" per second |
| Return Speed | 9.8" per second |
| Cylinders | 3 |
| Oil Tank Capacity | 33 gallons |
| Electrical | 110A, 36 kVa |
| Overall Dimensions (approx.) | 209"L x 95"W x 127"H |
| Weight (approx) | 41,100 lbs. |
