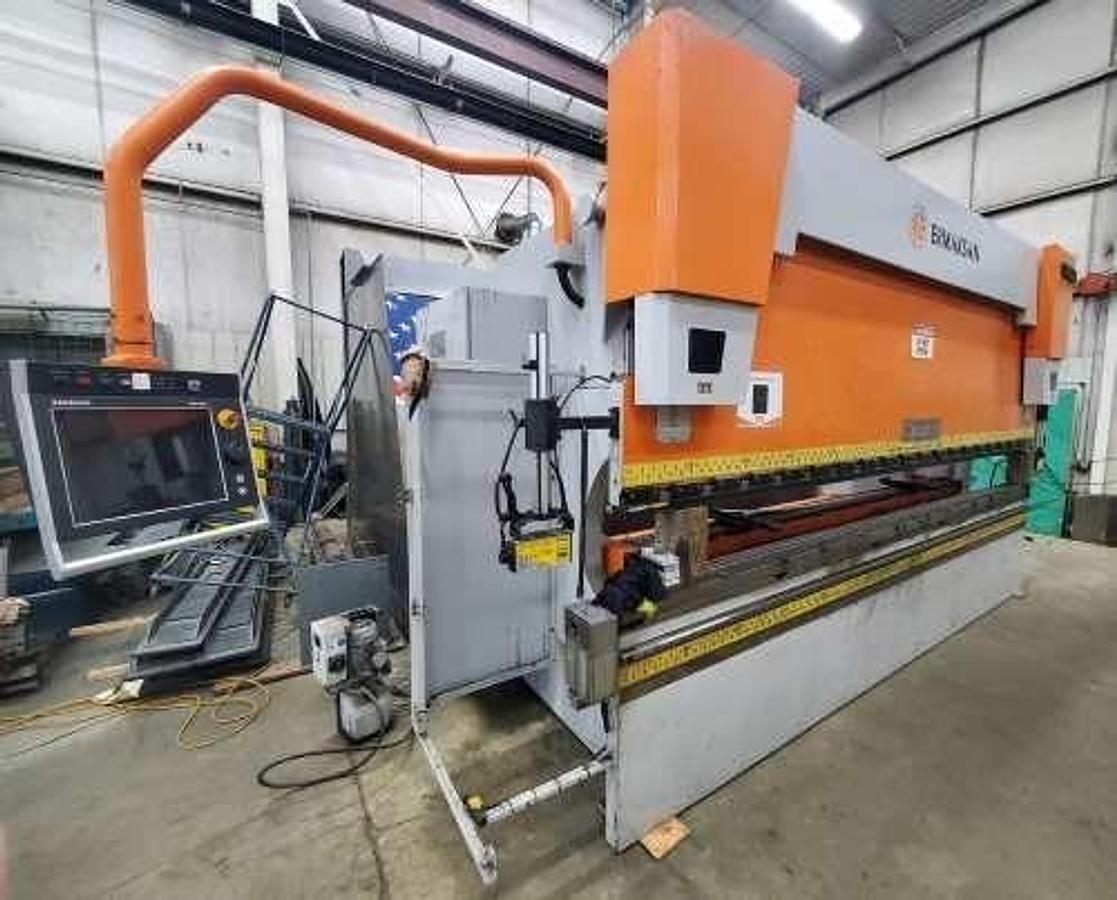

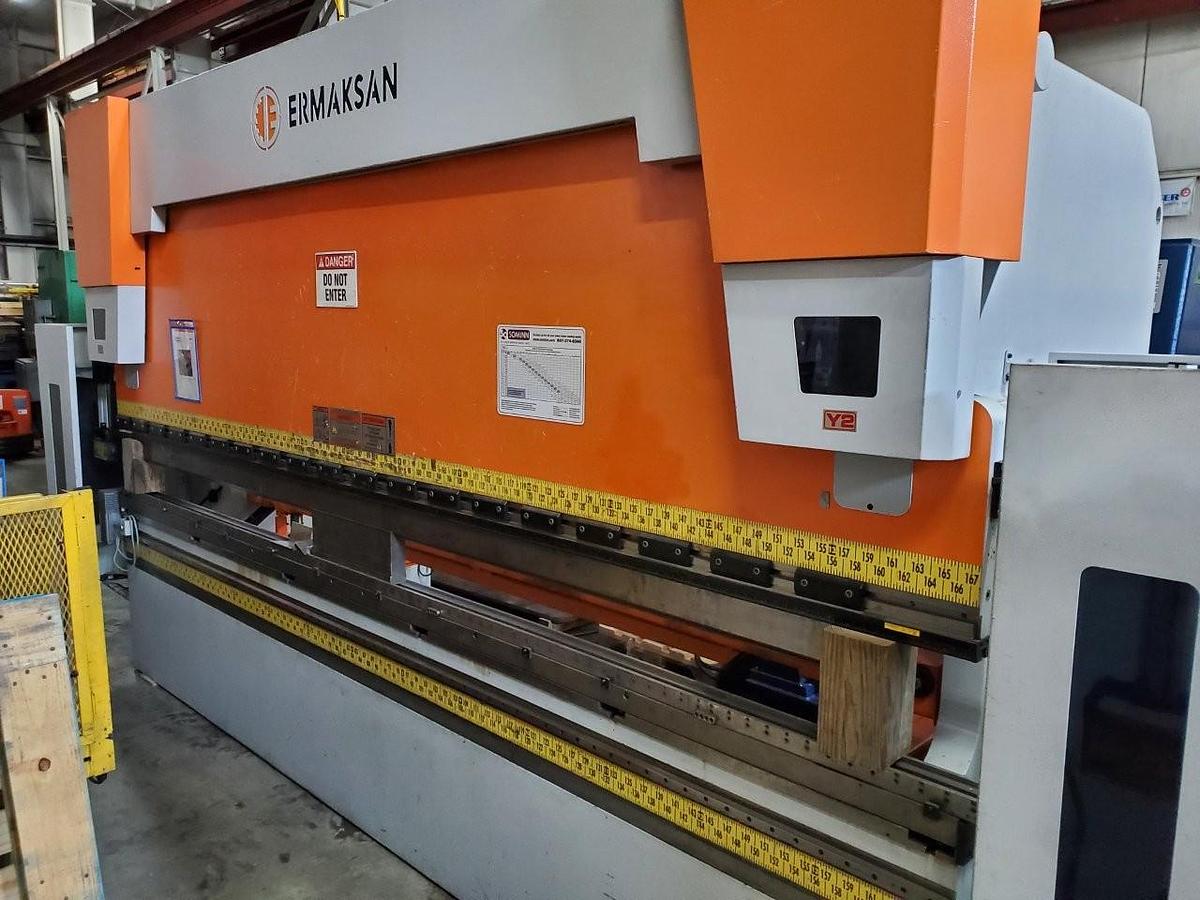

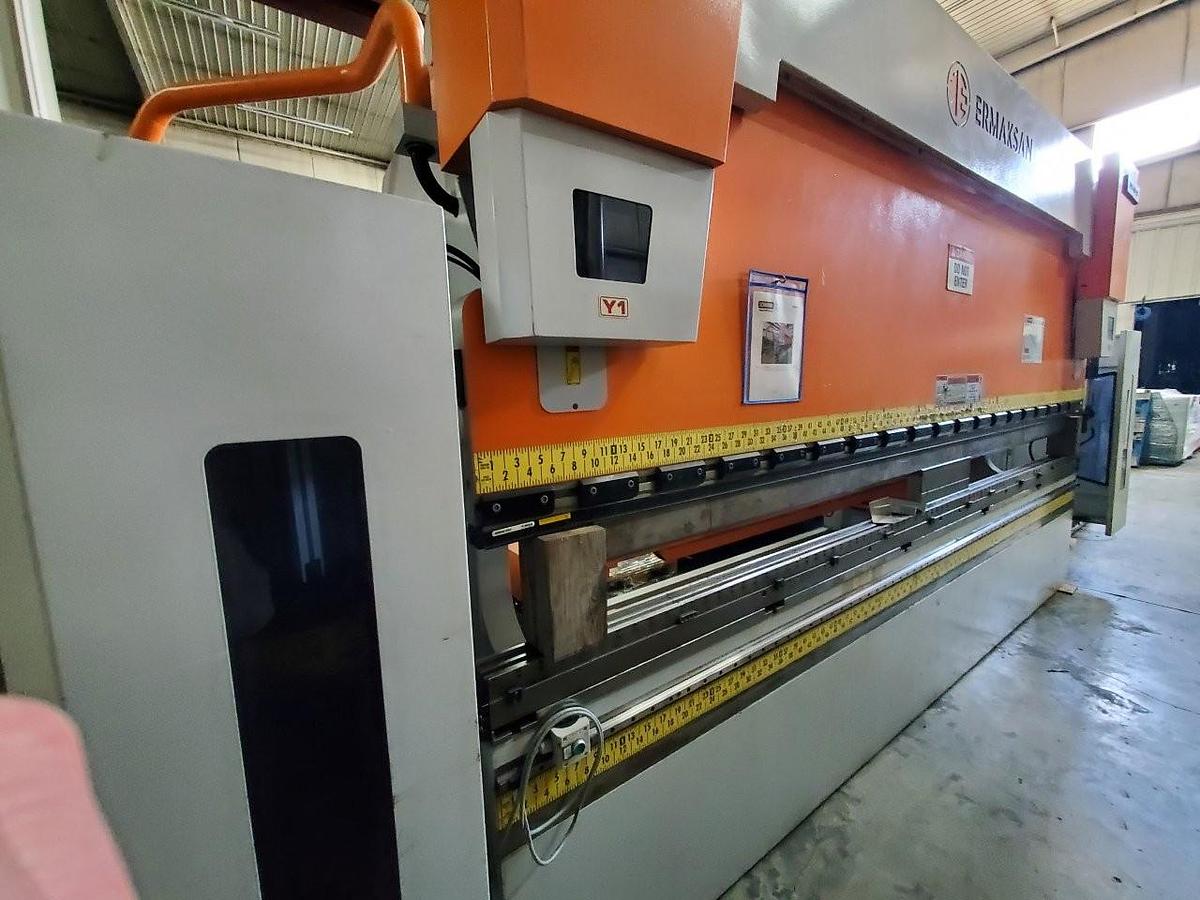

2018 - 193 Ton x 14' Ermak Speed Bend CNC Press Brake
2018 - 193 Ton x 14' Ermak Speed Bend CNC Press Brake
Location:Minneapolis, MN
or
Call (714) 545-0940
Equipped With
Equipped With Standard Options:

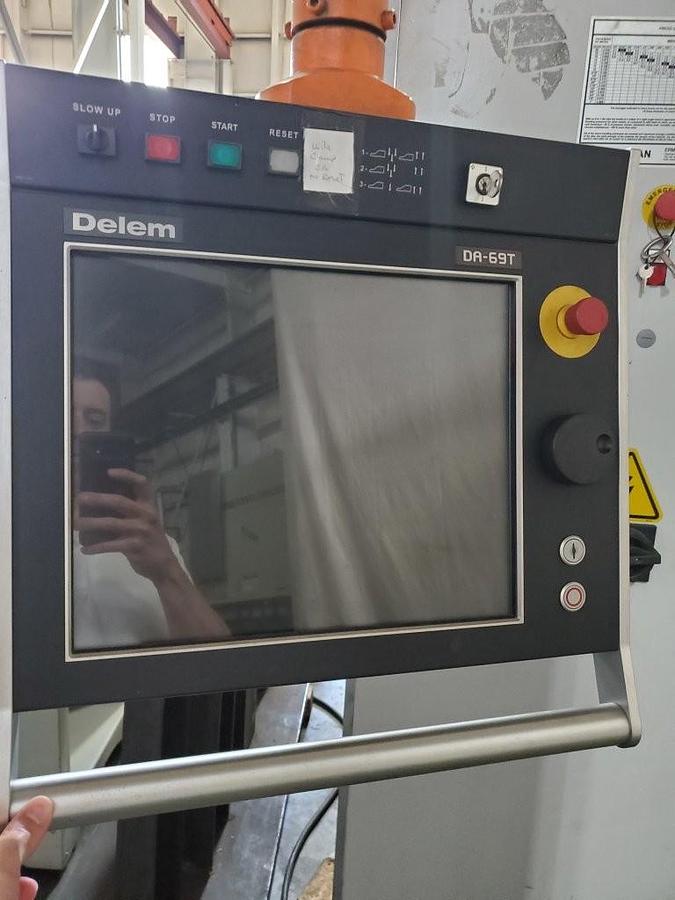

Delem 69T 3D Touch Screen Control
Y1,Y2,X,R,Z1,Z2 Axes

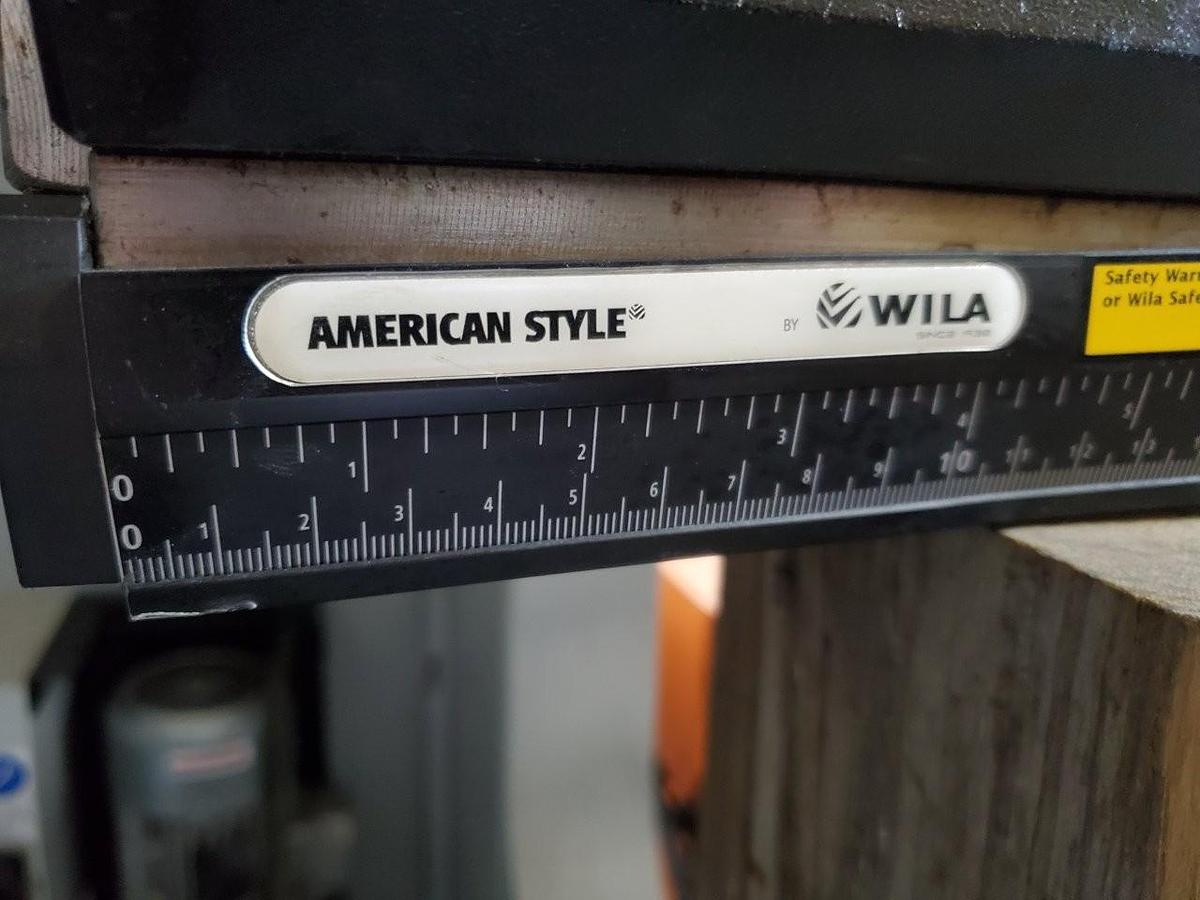

Wila Hydraulic Clamping
Light Curtains
Specifications
| Manufacturer | Ermaksan |
| Model | SB 4270-175 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 13079 |
| Capacity | 193 Tons |
| Overall Bending Length | 168" |
| Distance Between Housings | 148.82 |
| Y Rapid Speed | 7.09" /sec |
| Y Working Speed | 0.49" /sec |
| Y Return Speed | 7.48" /sec |
| X Axis Travel | 31.5" |
| X Axis Speed | 19.69" / sec |
| Z1, Z2 Axis Speed | 39.37 |
| Stroke | 10.8" |
| Daylight | 21.65 |
| Throat | 16.1" |
| Dimensions (approx) | 246" x 86.61" x 105.5" H |
| Weight (approx.) | 25,358 lbs. |
