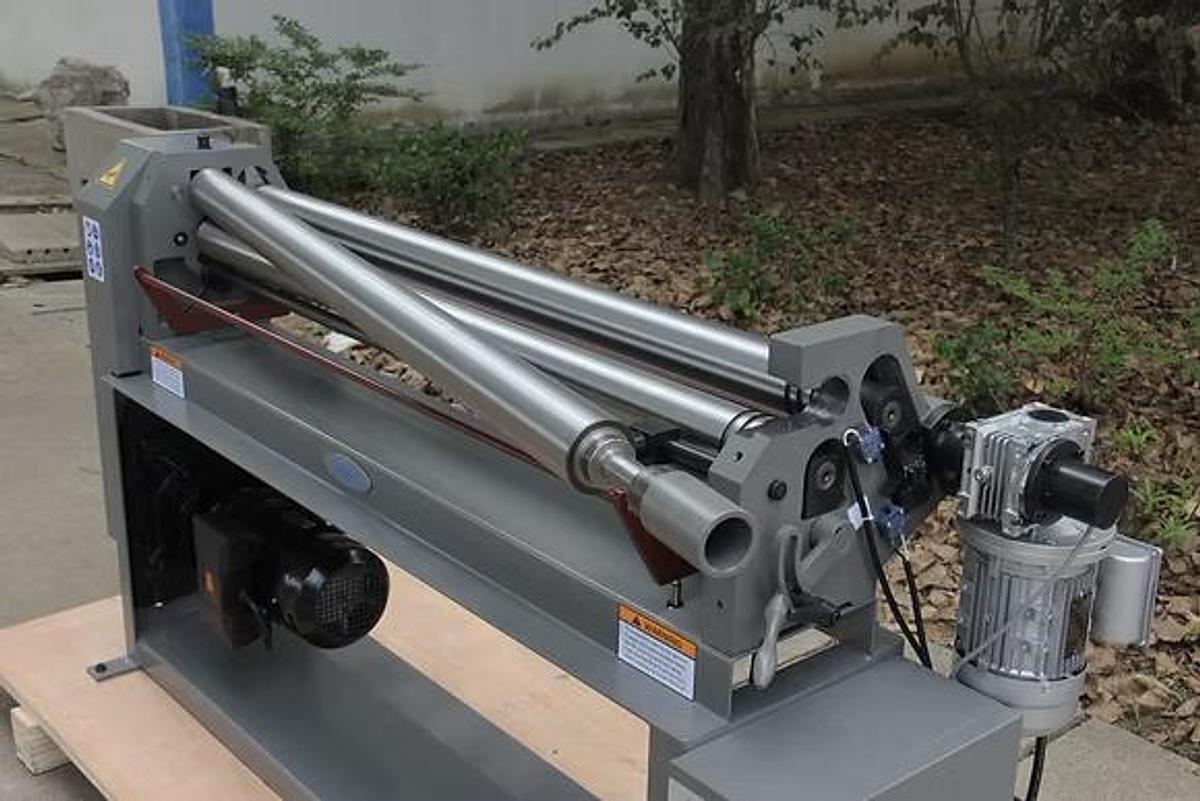

50" x 14 Ga. GMC PSR-5014E-1PH Slip Roll Machine (w/Up/Down Push Button)
50" x 14 Ga. GMC PSR-5014E-1PH Slip Roll Machine (w/Up/Down Push Button)
Location:Ontario, CA
or
Call (714) 545-0940
Equipped With
Included Equipment:
- Cone attachment
- Electrical cabinet
- Removable safety foot pedal
Standard Features:
- ISO 9001 certified

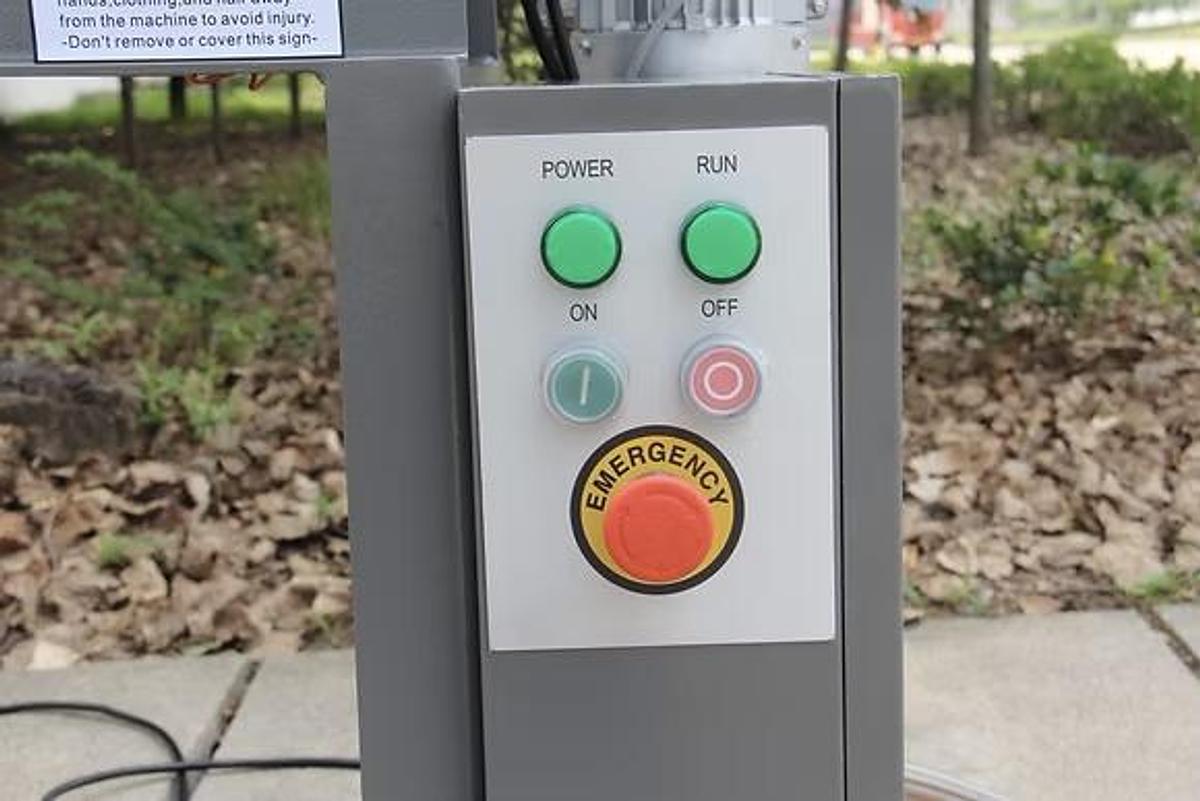

- Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts.
- One handle to control pinch roll up/down, more convenient and efficiency
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1/4” roll opening
- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- All rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
- One year warranty for parts
Specifications
| Manufacturer | GMC Machine Tools |
| Model | PSR-5014E-1PH |
| Condition | New |
| Stock Number | PSR-5014E-1 |
| Product | Slip Roll |
| Rolling Capacity | 50" x14 ga (Mild Steel), 50" x 18 ga (SS), 50" x 10 ga (soft aluminum) |
| Rolls Size | 50" x 3" |
| Minimum Thickness Capacity | 26 ga. |
| Min. Roll Bending Dia. Capacity | 3.5" |
| Rolls Speed | 201" / minute |
| Rolls Opening | 1/4" |
| Groove Sizes | 5/16", 3/8", 1/2" |
| Main Motor | 2 HP, 220V or 440V, Single Phase |
| Weight (approx) | 985 Lbs. |
| Machine Dimensions | 68 x 32x 49"H |
