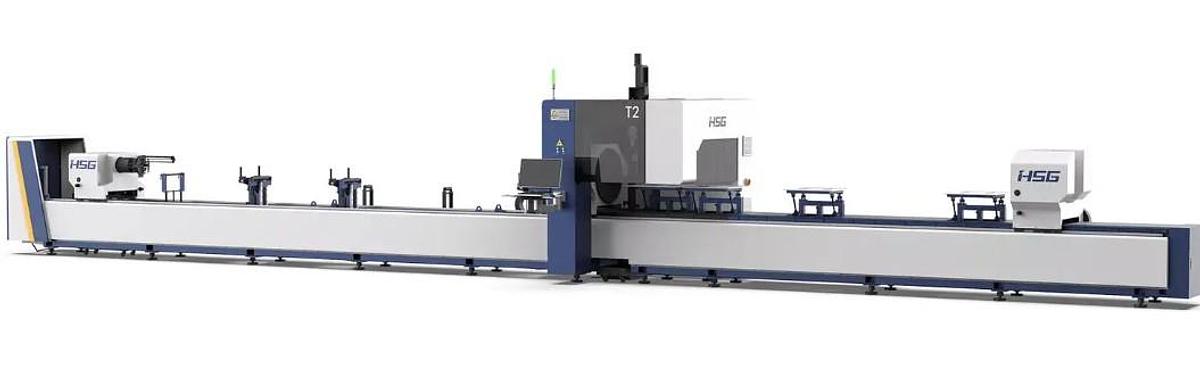

Name: 3000 Watt HSG T2-9060S CNC Fiber Tube Laser Cutting System *NEW*
Brand: HSG
SKU: HSG T2-9060S
Availability: InStock

Equipped with:

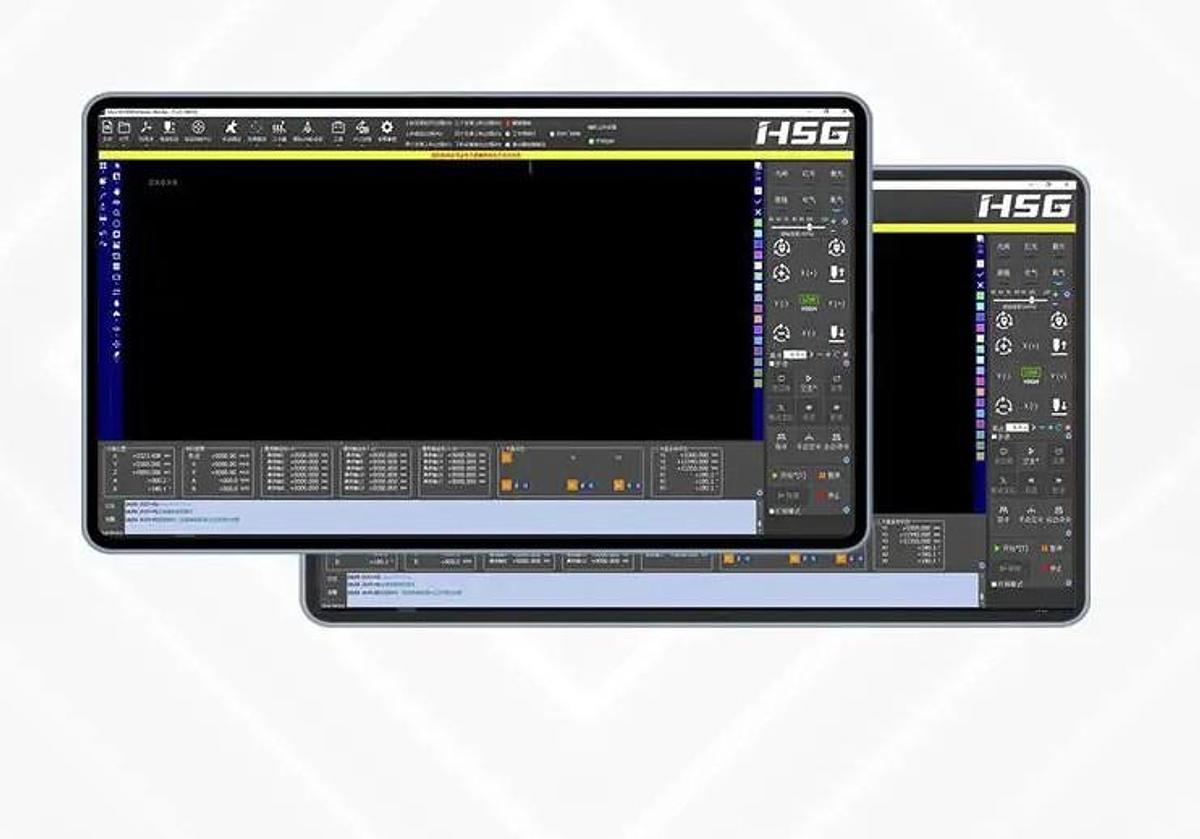

HSG Control

HSG Cutting Head

3kW Raykus Laser Source

HSG-X BUS Control System

HSG Mechanical Platform

Water Chiller

Transformer

Voltage Stabilizer

Nitrogen Proportional Valve

Air Compressor

Dust Collector

T2 Safety Protection Package

Air Conditioned Cabinet

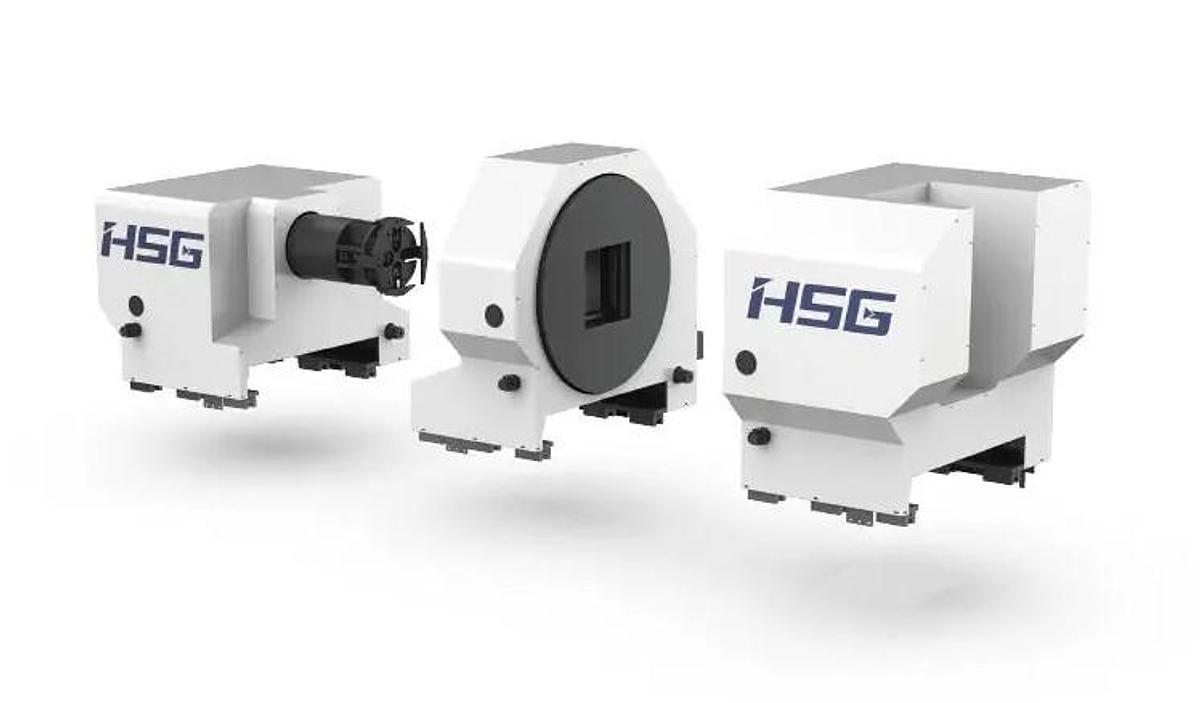

Professional Chuck

Receiving Hopper

Optional Upgrades:

Bevel Cutting: $24,500

Automatic Loading System: $33,600

Air Compressor: $11,200

Manufacturer	HSG
Model	T2-9060S
Condition	New
Stock Number	HSG T2-9060S
Resonator Wattage	3000 Watts
Tube processing ranges	Round tube: .78” - 9.45”
.	Rectangular tube: .78”≤each side≤9.45”
.	.78”x.78”≤Angle Steel ≤7.87”x7.87” / 2”x1.5”≤Channel≤7.87”x3” / 2”x1.5”≤I beam≤7.87”*4” / 4”x4”≤HW Steel≤7.87”x7.87”
Bevel cutting range	2”, thickness above .12”
Range of incoming materials for tube	39”- 29.5’
Max. auto-unloading length	29.5’（≥55”，straight cut for the last auto-unload part）
.	29.5’（≥78”，bevel cut for the last auto-unload part）
Positioning precision of X/Y axis	±0.0012”/3 ft
Repetitive positioning precision of X/Y axis	±0.0012”
Speed of chuck	100 RPM
Max. linkage speed	328 FPM
Max. linkage acceleration	1G
Maximum single tube weight	660 lbs.
Tailing length	≥0” （Only when the nesting material is reasonable can it be achieved）
Bevel angle	±45°
Bevel cutting surface	V 、Y
Machine Dimensions	Approx. 72’x10’x10’H / Approx. 72’x16.5’x10’H w/ auto loader
