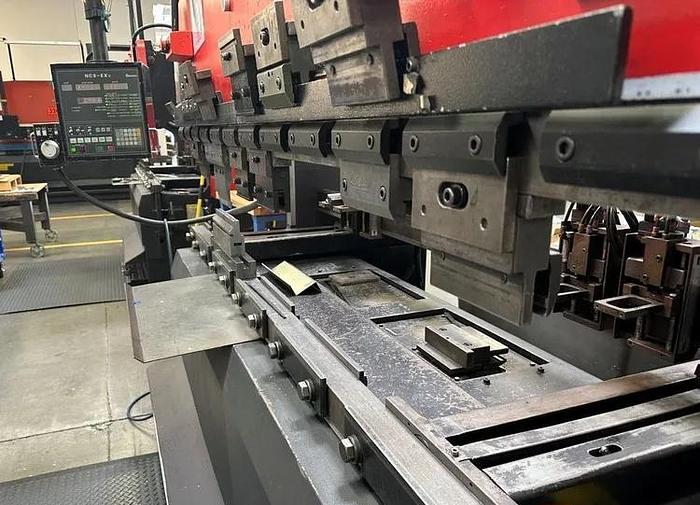

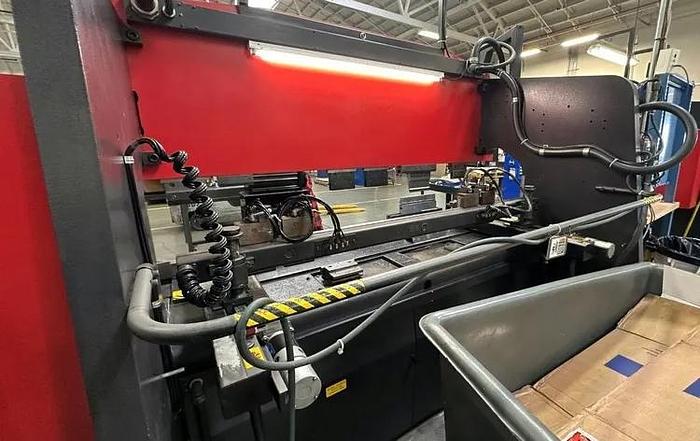

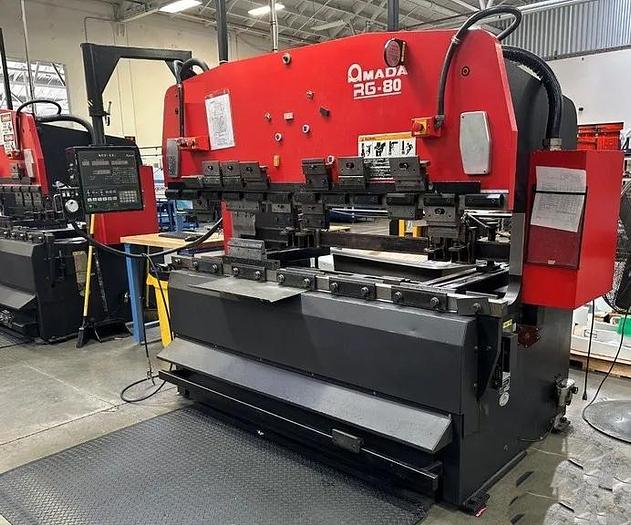

2000 - 88 Ton Amada RG-80 CNC Press Brake
No longer available
2000 - 88 Ton Amada RG-80 CNC Press Brake
Location:California
Equipped With
Equipped with:

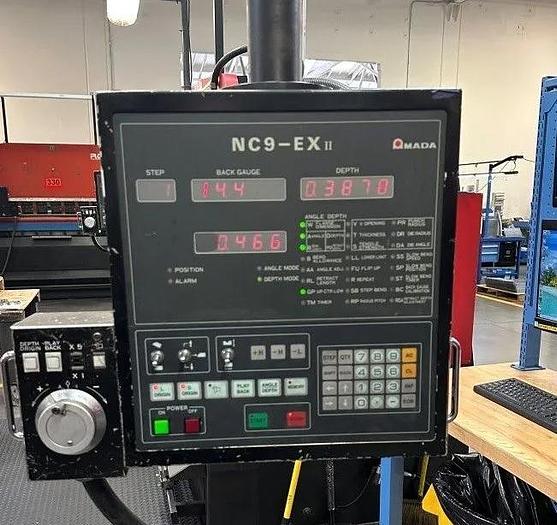

NC-9EXII 3 Axis CNC Control
Hand Wheel

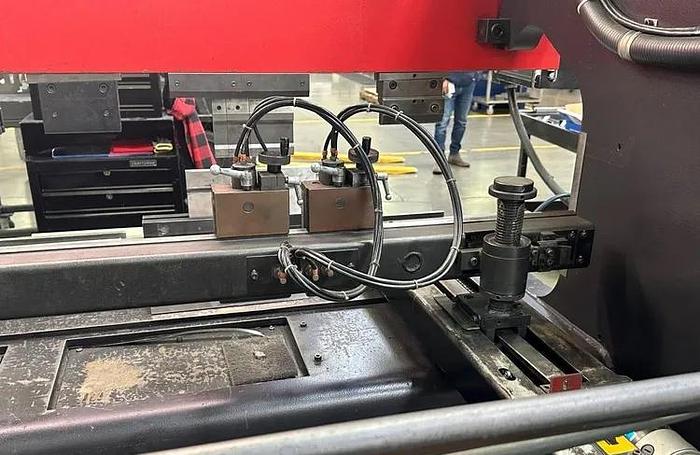

(4) Back Gauge Fingers
Full Length Foot Treadle
Specifications
| Manufacturer | Amada |
| Model | RG-80 |
| Year | 2000 |
| Condition | New |
| Stock Number | 13035 |
| Capacity | 88 Tons |
| Overall Bending Length | 98.6" |
| Distance Between End Frames | 78" |
| Length of Stroke | 3.9 |
| Open Height | 13.79" |
| Shut Height | 9.84" |
| Throat Depth | 15.7" |
| Max Pressure | 4203.2 PSI |
| Speeds | Approach: 52 IPM, Forming: 8.5 IPM, Return: 45.3 IPM |
| Main Motor | 7.5 HP |
| Oil Capacity | 13.4 Gallons |
| Overall Dimensions | 140"x60"x94"H |
| Weight (approx.) | 11,245 lbs. |
