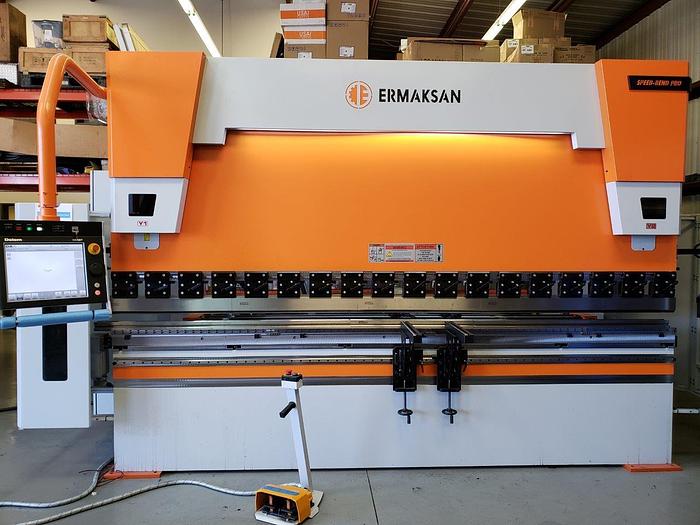

193 Ton x 12' Ermak Speed Bend CNC Press Brake **IN STOCK**

193 Ton x 12' Ermak Speed Bend CNC Press Brake **IN STOCK**

Contact us for price

New Jersey

orCall (714) 545-0940

Equipped With

Delem 66-T CNC Touch Screen Control

Y1,Y2, X, R, Z1, Z2 Axes

CNC Crowning

Akas Laser Safety Guard

Quick Release Universal Punch Holders

Tooling Package w/ 4-way Bottom Die

Sheet Support Arms

Specifications

ManufacturerErmaksan
ModelSB 3760x175
Year2020
ConditionNew
Stock NumberSB 3760x175
Capacity193
Overal Bending Length144"
Distance Between Columns128"
Throat16.1"
Daylight21.6"
Stroke10.8"
Approach Speed7.09 IPS
Bending Speed.39 IPS
Return Speed7.28 IPS
Back Gauge Travel31.5"
Back Gauge Speed (X-Axis)19.69 IPS
R-Axis Travel9.84"
R-Axis Speed13.78 IPS
Electical230-460V, 60Hz, 3 PH
Y Rapid Speed7.09" / sec
Y Working Speed0.47" / sec
Y Return Speed7.48" / sec
Z1Z2 Travel39.37" / sec
X1X2 Travel19.69" / sec
R1R2 Travel13.78" / sec
Weight24,500 Lbs.
Dimensions193 x 85 x 111"H
