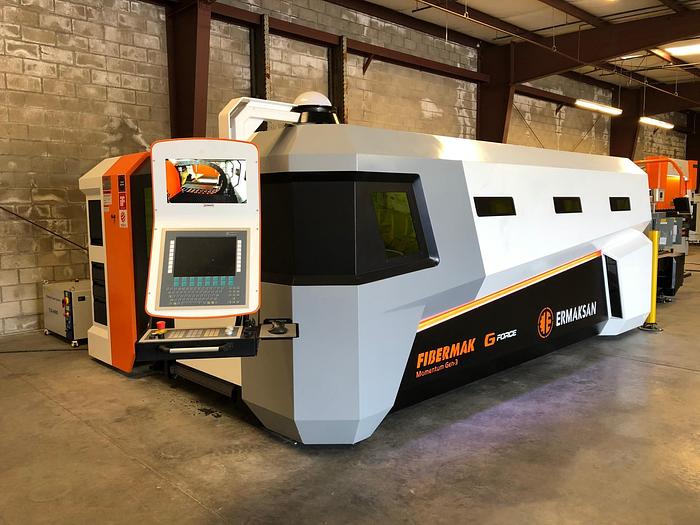

6000 WATT ERMAK GEN-3 FIBER LASER CUTTING MACHINE **IN STOCK**

6000 WATT ERMAK GEN-3 FIBER LASER CUTTING MACHINE **IN STOCK**

Contact us for price

New Jersey

orCall (714) 545-0940

Equipped With

Beckhoff CP62 Touch Screen Controller 15" 1024x768 Display IPG YLR 2000-Compact Power Supply Precitec Procutter Cutting Head w/ Auto Focusing 2.5 G High Speed Acceleration Proportional Gas & Piping System Gas & Air Control Shuttle Table Conveyor Suction System Working Coordinate Systems Machine & Operator Safety System Safety Cabinet Chiller Dust Collector CAD/CAM Software Laser Working Area - Electric Panel Illumination Lay-out Floor Plates *Price Includes Installation and [1] Week of Operating, Programming, Panel and Maintenance Training w/ [1] Ermak Service Tech

Specifications

ManufacturerERMAK
ModelFibermak G Force
Year2020
ConditionNew
Stock Number3809
Resonator Wattage6000 Watts
Power Range10 - 105%
Pulse Frequency Range5kHz
Cutting Capacity Mild Steel5/8"
Cutting Capacity Stainless Steel3/8"
Cutting Capacity Aluminum5/16"
Cutting Capacity Brass1/4"
Cutting Capacity Copper1/4"
Max. Worksheet Dimensions118"L x 59"W
Max. Weight3307#
Machine Axes4-Axes (X,Y,Z,U)
Axial Movements X, U Axes120"
Axial Movements Y-Axis61"
Axial Movements Z-Axis6"
Accelerations X, U Axes1.5G
Accelerations Y-Axis1.5G
Accelerations Z-Axis2.5G
Max. Axes Velocities Simultaneous5551 IPM
Max. Axes Velocities X, Y Single Axis3937 IPM
Positioning Accuracy+/- .001
Repetition Accuracy+/- .0006
Shuttle Table[2] @ 35 sec
Assist Gas Mild SteeOxygen (.5 - 6 Bar)
Assist Gas Stainless SteelNitrogen (.5 - 25 Bar)
Assist Gas AluminumDry Air or Nitrogen (.5 - 25)
Cutting HeadPrecitec Procutter
ControllerBeckhoff CP6242
CAD/CAM SoftwareLantek Expert Cut
Network ConnectionEthernet
Machine Dimensions362"x146"x87"H
Machine Weight25,000#
