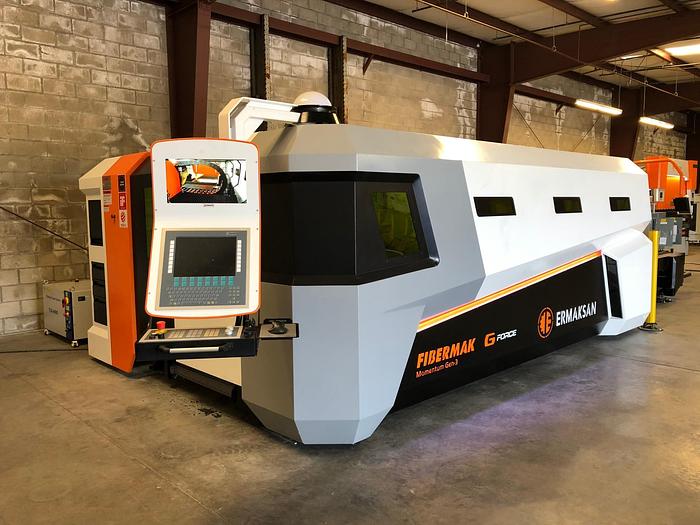

ERMAK GEN-5 FIBER LASER CUTTING MACHINE
ERMAK GEN-5 FIBER LASER CUTTING MACHINE
orCall (714) 545-0940
Equipped With
AVAILABLE FROM 2000 WATT TO 10,000 WATT IPG POWER SUPPLY
Beckhoff C3921 Touch Screen Controller 15" 1024x768 Display Precitec Procutter Cutting Head w/ Auto Focusing 2.5 G High Speed Acceleration Proportional Gas & Piping System Gas & Air Control Shuttle Table Conveyor Suction System Working Coordinate Systems Machine & Operator Safety System Safety Cabinet Chiller Dust Collector CAD/CAM Software Laser Working Area - Electric Panel Illumination Lay-out Floor Plates *Price Includes Installation and [1] Week of Operating, Programming, Panel and Maintenance Training w/ [1] Ermak Service Tech
Specifications
| Manufacturer | Ermaksan |
| Model | GEN-5 |
| Condition | New |
| Power Range | 10 - 105% |
| Pulse Frequency Range | 5kHz |
| Max. Weight | 4672# |
| Machine Axes | 4-Axes (X,Y,Z,U) |
| Axial Movements X, U Axes | 120.1" |
| Axial Movements Y-Axis | 61" |
| Axial Movements Z-Axis | 5.9" |
| Accelerations X, U Axes | 2.5G |
| Accelerations Y-Axis | 2.5G |
| Accelerations Z-Axis | 2.5G |
| Max. Axes Velocities Simultaneous | 5551 IPM |
| Max. Axes Velocities X, Y Single Axis | 3937 IPM |
| Positioning Accuracy | +/- .001 |
| Repetition Accuracy | +/- .0006 |
| Shuttle Table | [2] @ 35 sec |
| Assist Gas Mild Stee | Oxygen (.5 - 6 Bar) |
| Assist Gas Stainless Steel | Nitrogen (.5 - 25 Bar) |
| Assist Gas Aluminum | Dry Air or Nitrogen (.5 - 25) |
| Cutting Head | Precitec Procutter |
| Controller | Beckhoff C3921 |
| CAD/CAM Software | Lantek Expert Cut |
| Network Connection | Ethernet |
