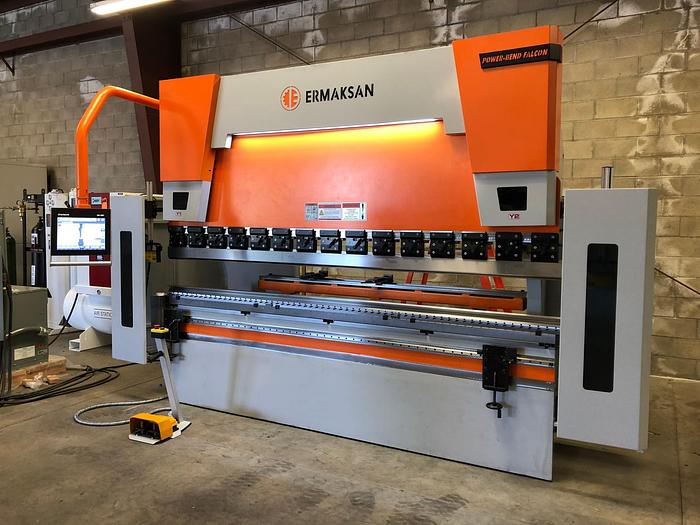

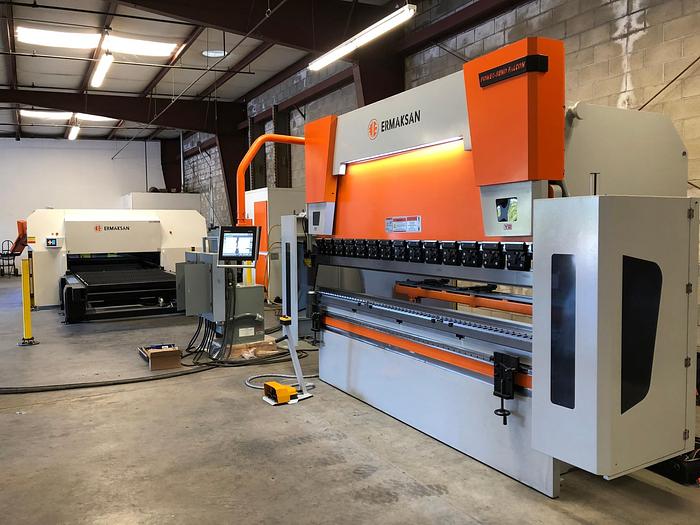

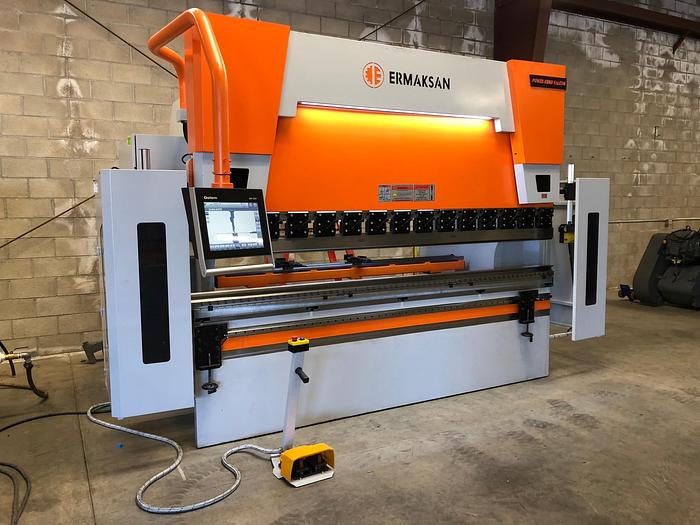

110 Ton x 10.17" Ermak Power Bend Falcon CNC Press Brake
110 Ton x 10.17" Ermak Power Bend Falcon CNC Press Brake
Location:Nearest Port
or
Call (714) 545-0940
Equipped With
Equipped with:
Delem 58T Touch Screen Control
Y1,Y2,X,R Axes
CNC Motorized Crowning
2 Front Sheet Supports
Full Set of Universal Punch Holders
Full Length 4 Way Bottom Die and Top Punch Tooling
Die Riser
Akas Light Curtains
Specifications
| Manufacturer | Ermaksan |
| Model | PBF 3100-110 |
| Condition | New |
| Stock Number | PBF 3100-110 |
| Capacity | 110 Tons |
| Overal Bending Length | 122" |
| Distance Between Columns | 102.4" |
| Daylight | 20.9" |
| Stroke | 10.8" |
| Throat | 16.1" |
| X-Axis Travel | 31.5" |
| Y-Axis Rapid Speed | 7.87 IPS |
| X-Axis Speed | 19.7 IPS |
| Y-Axis Working Speed | .37 IPS |
| Y-Axis Return Speed | 6.1 IPS |
| R-Axis Travel | 9.8 IPS |
| R-Axis Speed | 13.8 IPS |
| Back Gauge Travel | 31.5" |
| Back Gauge Speed | 9.1 IPS |
| Dimensions (Approx) | 196 x 101 x 98"H |
| Weight (Approx) | 15,000 lbs. |
