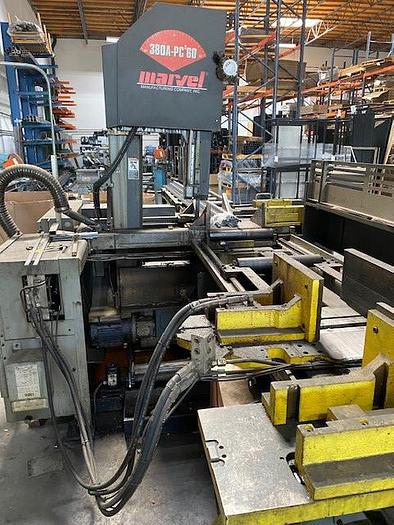

2013 Marvel Marvel 380A-PC 60 Vertical Tilt-Frame Band Saw

$42,500 (USD)

Santa Ana, CA

orCall (714) 545-0940

Equipped With

Equipped with:

Marvel PC3 Touch Screen Control

Hydraulically Controlled Blade Tension

Auto Sensor for Jammed Blade Protection

Auto Bar Feed

Hydraulic Vices


Specifications:

Capacity Nominal 0 Deg Cant

                           Rectangular                                    15"x20"

                           Rounds                                           15"

Capacity 45 Deg Right

                           Rectangular                                    15"x14"

                           Rounds                                           14"

Capacity 60 Deg Right

                           Rectangular                                    15"x9.25"

                           Round                                            9.25"

Capacity 45 Deg Left

                           Rectangular                                    15"x13.25"

                           Round                                            13.25"

Capacity 60 Deg Left

                           Rectangular                                    15"x8"

                           Round                                            8"

Capacity Nominal 3 Deg Cant

                           Rectangular                                    14.5"x20"

                           Round                                            14.5"

Capacity 45 Deg Right

                           Rectangular                                    14.5"x13.5"

                           Round                                            13.5"

Capacity 60 Deg Right

                           Rectangular                                    14.5"x8.75"

                           Round                                            8.75"

Capacity 45 Deg Left

                           Rectangular                                    14.5"x12.75"

                           Round                                            12.75"

Capacity 60 Deg Left

                           Rectangular                                    14.5"x7.75"

                           Round                                            7.75"

Blade Drive                                                              5HP

Speed Range                                                            60 - 400 FPM

Feed Force                                                               0 - 300 lbs

Blade                                                                       16' x 1.25" x .042"

Blade Tension                                                          35,000 PSI

Main Drive                                                               5 HP

Coolant Pump                                                           1/8 HP

Hydraulic Pump                                                       2 HP

Hydraulic Oil                                                           13 Gallons

Cutting Fluid                                                            2 Gallons


Specifications

ManufacturerMarvel
ModelMarvel 380A-PC 60 Vertical Tilt-Frame Band Saw
Year2013
ConditionUsed
Stock Number3770
