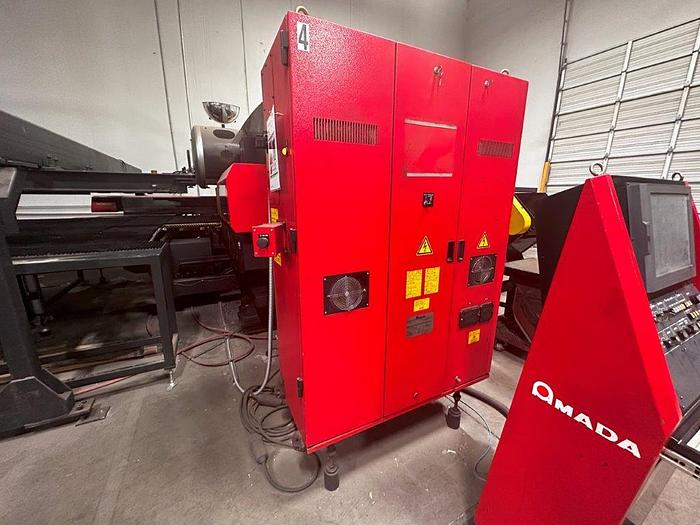

2005 - 33 Ton Amada EMK-3610NT Servo Driven (Electric) CNC Turret Punch
2005 - 33 Ton Amada EMK-3610NT Servo Driven (Electric) CNC Turret Punch
California
orCall (714) 545-0940
Equipped With

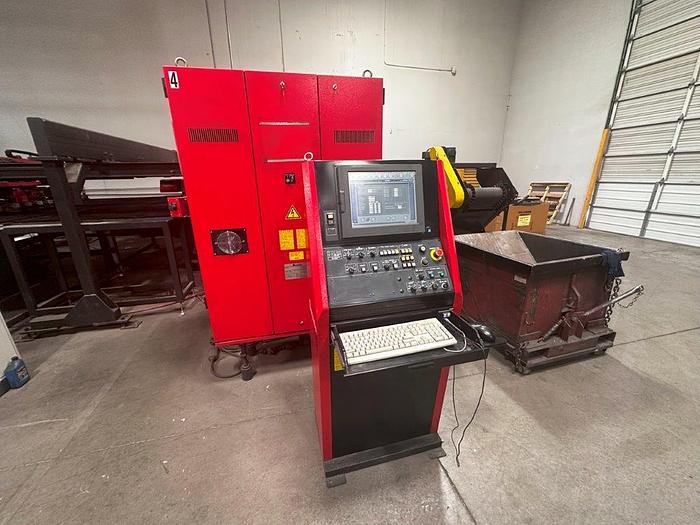

NT Control
58 Stations w/ 4 A/I
3 Work Clamps
Brush Table
Slug Conveyor
- ASR-510CR Tower Load/Unloader available at additional cost.
Specifications
| Manufacturer | Amada |
| Model | EMK-3610NT |
| Year | 2005 |
| Condition | Used |
| Stock Number | 12871 |
| Capacity | 33 Tons |
| Max Sheet Size | 100"x60" |
| Max Sheet Size w/ Reposition | 240" x 60" |
| Throat Depth | 60" |
| Travels (X-Axis) | 100" |
| Travels(Y-Axis) | 60" |
| Stroke | 1.45" |
| Max Sheet Thickness | .187" |
| Turret Stations | 58 w/ (4) A/I |
| Turret Tooling Style | Thick |
| Turret Rotation Speed | 30 RPM |
| Feed Clearance | .984" |
| Overall Dimensions | 210" x 245" x 95"H (approx) |
| Weight (approx.) | 44,000# |
