18 GA. GMC PL-18E Pittsburgh Lockformer *New

18 GA. GMC PL-18E Pittsburgh Lockformer *New

Ontario, CA

orCall (714) 545-0940

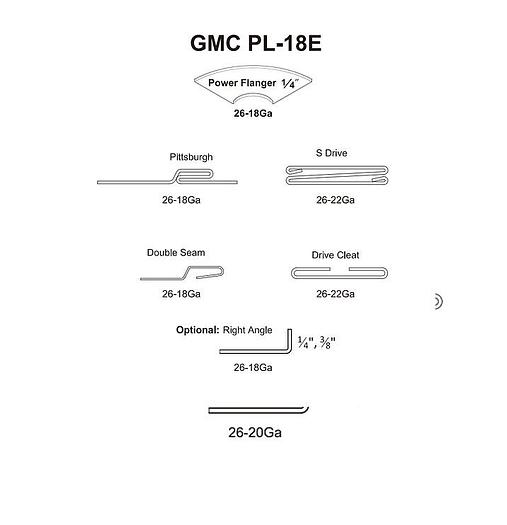

Equipped With

Equipped with:

  • Standard Pittsburgh Attachment # PA-18E
  • Slip & Drive Roll (S & Drive)# SDR-18E
  • Drive Cleat Roll # DCR-18E
  • Double Seam Roll # DSR-18E
  • Power Flanger # PF-18E

Optional Equipment:

  • RAR-20E 1/4", 3/8", 1/2" Right Angle Roll Set for PL-20E ..... $995.00


  • Creates tight, interlocking joints between two pieces of sheet metal
  • Made with high-quality materials and construction for durability and longevity
  • Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
  • Backed by a 1-year parts warranty for peace of mind
  • Compact and portable design for easy storage and transport
  • Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
  • ISO 9001 certified
  • 4 HP Heavy Duty AC main motor, 110V
  • Standard Pittsburgh Attachment
  • Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll  (power flange attachment can only do radius parts)
  • ACME side can be operated at same time
  • Heavy duty caster wheels for easy moving


ManufacturerGMC Machine Tools
Capacity26 GA - 18 GA
Double Seam Lock26 GA - 18 GA
Drive Cleat Lock26 GA - 22 GA
Power Flange 1/4"26 GA - 18 GA
S Drive Lock26 GA - 22 GA
Right Angle Lock26 GA - 18 GA
Depth of Pocket1/2"
Feeding Speed23 FPM
Main Motor4 HP, 3 Phase, 15 AMP, 220 VAC
Dimensions (approx)60 x 26 x 46"H
Weight (approx)998 lbs.
