2005 22 Ton Amada Vipros 255 CNC Turret Punch
No longer available

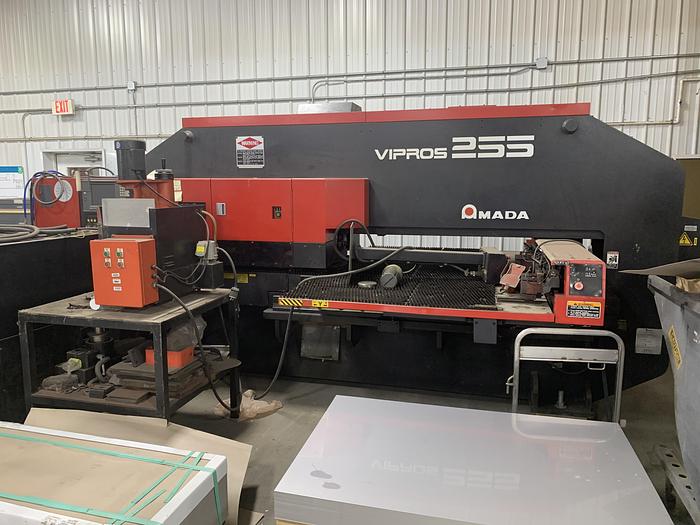

2005 22 Ton Amada Vipros 255 CNC Turret Punch
Equipped With
Fanuc 18P Cntrl 31 Station Turret Brush Table Available Books & Manuals
Specifications
| Manufacturer | Amada |
| Model | Vipros 255 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 3715 |
| Capacity | 22 US Ton |
| Maximum Sheet Size (w/o repo) | 50"x50" |
| Maximum Punching Capacity | 1/4" |
| Maximum Hole Size | 3.5" |
| Ram Stroke | 1.575" (Adjustable) |
| Rapid Feedrates | 2,559 IPM/1,968 IPM |
| Turret Stations | 31 with (3) A/I |
| Turret Style | Thick |
| Overall Dimensions | 9'X16'X7'H |
| Weight (approx.) | 21,400 lbs. |
