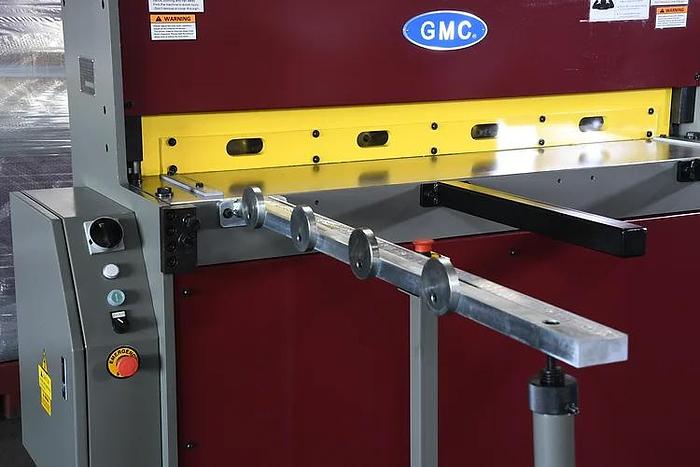

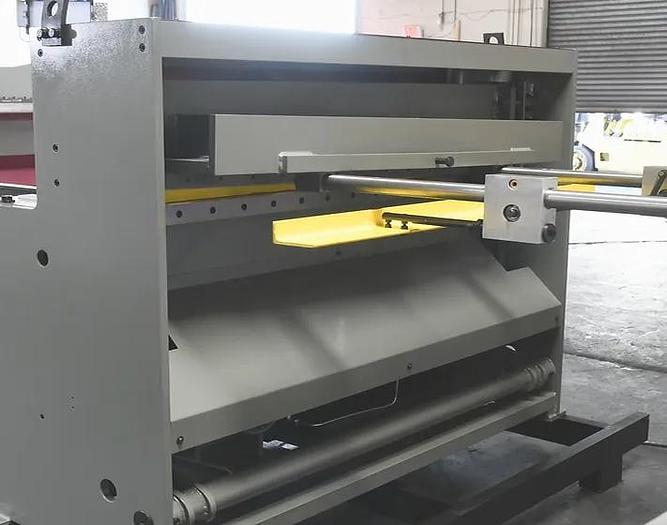

10 Ga. x 6' GMC HS-0610MD Hydraulic Shear
10 Ga. x 6' GMC HS-0610MD Hydraulic Shear
Location:Santa Ana, CA
or
Call (714) 545-0940
Equipped With
Standard Features:
- Taiwan machines
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet Rexroth hydraulic system
- Adjustable stroke from 16-20 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
Standard Equipment:
- 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
- 60” long squaring arm with inch / mm scale
- 2 each 24” front support arms
- 2 each 14” Side gauges with inlaid inch/metric dual scale
- Spring independent hold-downs
- Full length finger guard
- Removable safety foot pedal control
- One set of blades
Specifications
| Manufacturer | GMC Machine Tools |
| Model | HS-0610MD |
| Condition | New |
| Stock Number | HS-0610MD |
| Product | Shears, Hydraulic |
| Overall Cutting Length | 72" |
| Maximum Cutting Capacity | 10 Ga. Mild Steel, 14 Ga. Stainless Steel, Soft Aluminum 1/4" |
| Minimum Capacity | 24 Ga. |
| Blade Length | 6' 6" |
| Strokes Per Minute | 16-20 |
| Throat | 16" |
| Working Height | 30.5" |
| Front Support Arm | 24" |
| Back Gauge Range | 26" |
| Rake of Upper Blade | 1.5 degrees |
| Main Motor | 5 1/2 HP Prewired: 220/3-Phase Optional: 440V 3-Phase |
| Oil Tank Capacity | 21 Gallons |
| Overall Dimensions | 98 x 35 x 52" |
| Weight (approx.) | 4150 lbs. |
