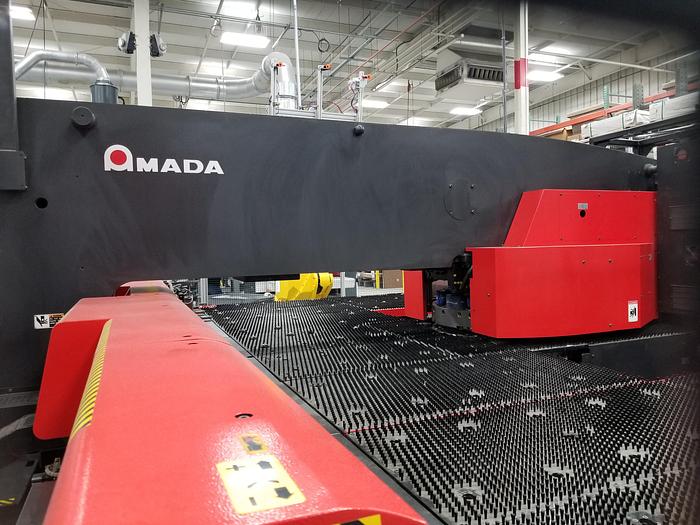

2014 22 Ton Amada AE2510NT CNC Turret Punch
No longer available
2014 22 Ton Amada AE2510NT CNC Turret Punch
Equipped With
Amada NT Control [58] Stations w/ [2] Auto-Index Brush Table Misc. Tooling *Low Hours
Specifications
| Manufacturer | Amada |
| Model | AE2510NT |
| Year | 2014 |
| Condition | Used |
| Stock Number | 3683 |
| Capacity | 22 Ton |
| Press Drive System | Single Motor AC Servo Drive |
| Maximum Sheet Size (w/o repo) | 50"x98" (50"x196" with repo) |
| Throat Depth | 52" |
| Maximum Sheet Thickness | 1/4" |
| Turret Style | Thick |
| Turret Stations | 58 with (2) A/I |
| Turret Rotation Speed | 30 RPM |
| Auto-Index Rotation Speed | 60 RPM |
| Maximum Feed Rate | Y-Axis 2,362 IPM |
| Maximum Hit Rate | 480 HPM |
| Weight | 28,660# |
| Maximum Feed Rate | Y-Axis 2,362 IPM |
