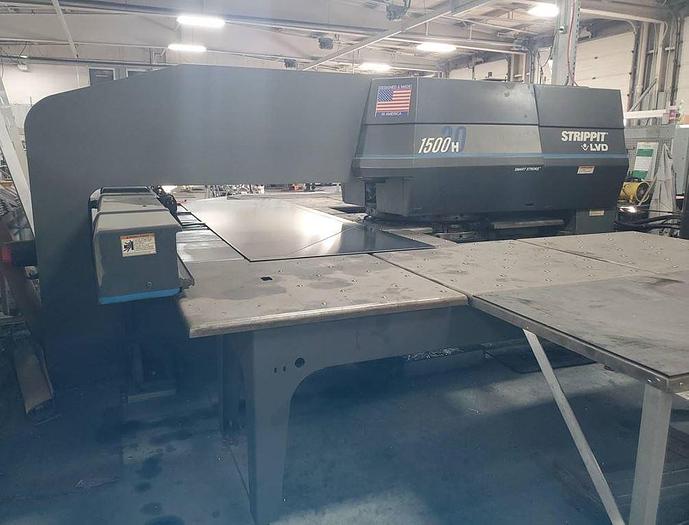

2000 33 Ton Strippit 1500H/30 CNC Turret Punch
No longer available
2000 33 Ton Strippit 1500H/30 CNC Turret Punch
Kansas
Equipped With
Fanuc 180iP Control 42 Station Turret w/ (3) A/I Hydraulic Unit (3) Work Clamps Ball Transfer Table Remote Pedestal
Specifications
| Manufacturer | Strippit |
| Model | 1500H/30 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 3675 |
| Capacity | 33 Tons |
| Max Sheet Size | 60 x 100" (200" w/ one repo) |
| X Axis Travel | 100" |
| Y Axis Travel | 60" |
| Max Material Thickness | .312" |
| Max Hole Size (10 ga.) | 3.5" |
| Tooling Type | Thick |
| Turret Speed | 45 RPM |
| Dimensions | 14 x 18 x 7'H |
| Weight | 34,000 lbs. |
