5' x 10 Ga. GMC PBR-0510E Power Bending Roll

5' x 10 Ga. GMC PBR-0510E Power Bending Roll

Location:Santa Ana, CA

orCall (714) 545-0940

Equipped With

Standard Features

  • SO 9001 certified
  • All (3) rolls are hardened rolls, up to 50-52 HRC
  • 3-rollers are driven to perform high accuracy

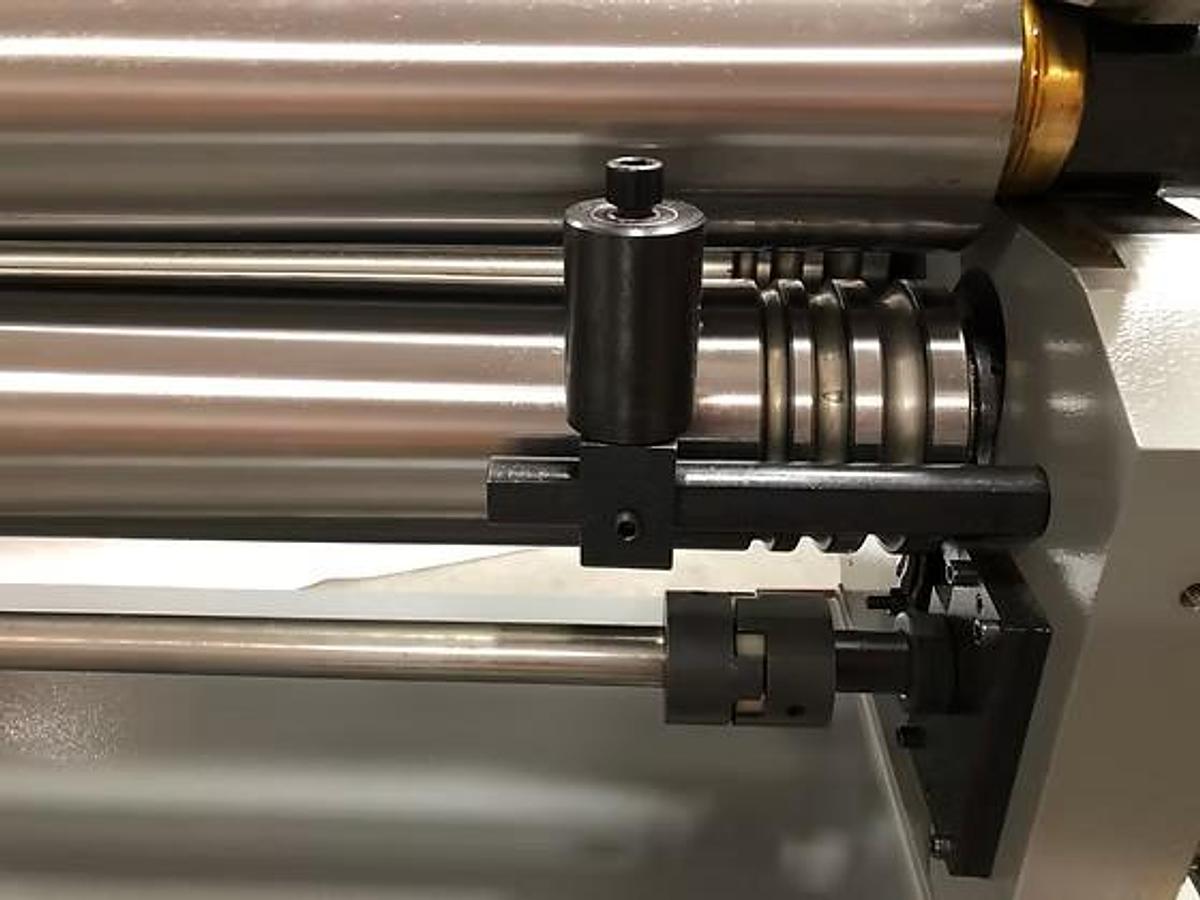

  • Adjustable cone attachment included

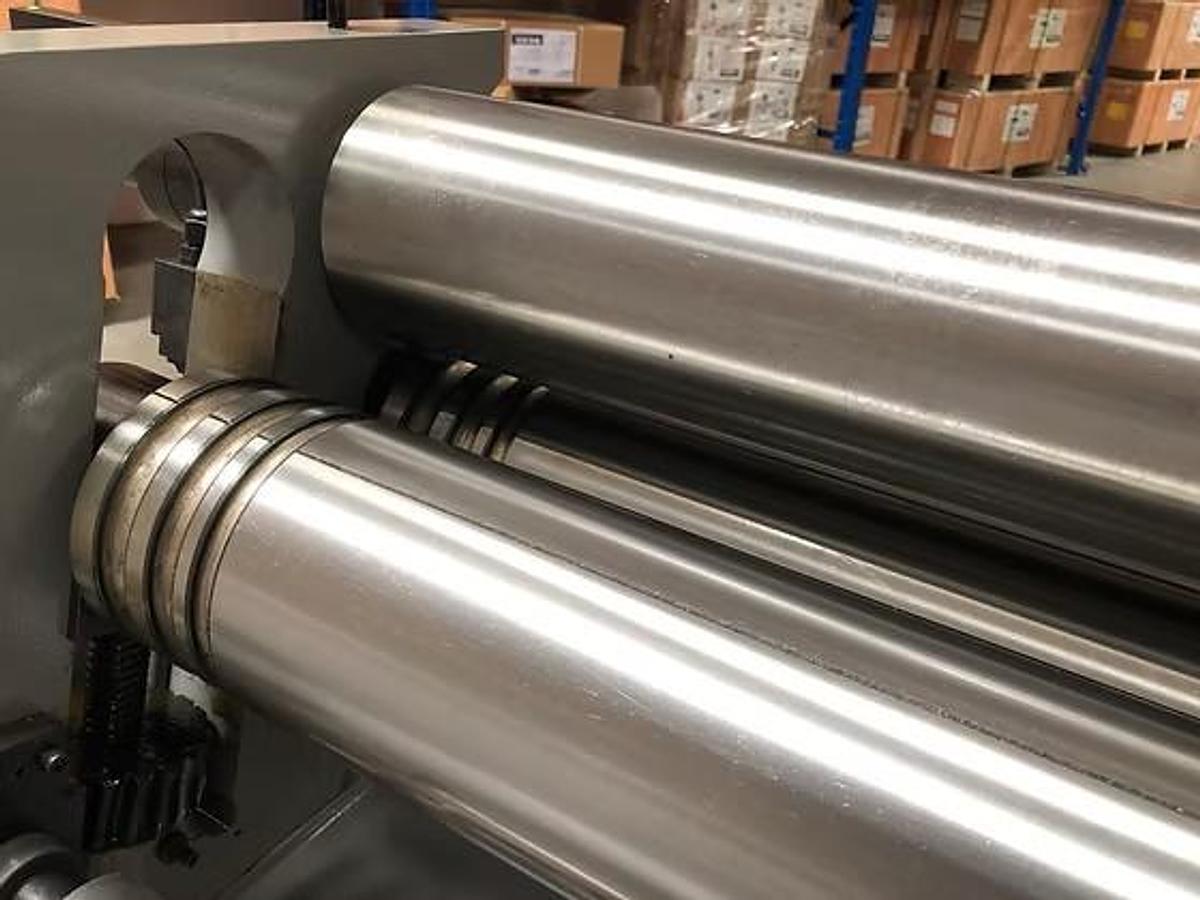

  • 3/8”, ½” and 5/8” grooves on rollers

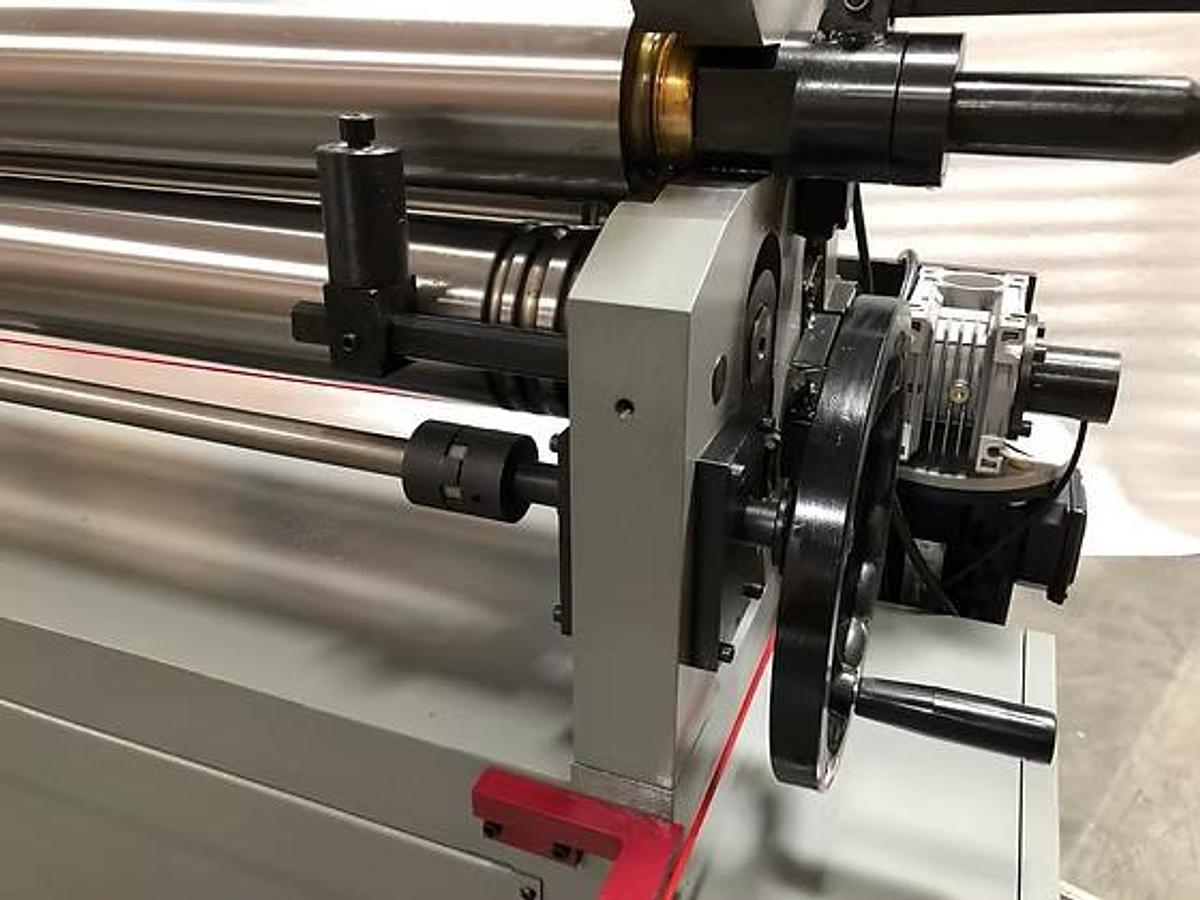

  • One wheel one-side operated for bending roll
  • One wheel one-site operated for pinch roll (E model is powered)
  • Heavy duty casting frame
  • Heavy duty all steel welded construction
  • 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
  • Quiet running operation
  • Easy swing-out top roller
  • Safety line all around the machine for emergency stop
  • All rolls run forward and reverse
  • Safety type forward/reverse foot pedal
  • Power source 220V, (option: 440V, 3 phase)
  • One year industrial warranty for parts

Standard Included Equipment

  • Adjustable cone attachment
  • 3/8”, ½” and 5/8” grooves on rollers
  • All (3) hardened rolls
  • Removable safety foot pedal
  • Operation & parts manual
  • Orange color front cover is optional.
  • E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs


Specifications

ManufacturerGMC Machine Tools
ModelPBR-0510E
ConditionNew
ProductPlate Roll, Electric
Max Bending Length60"
Capacity10 Ga (Mild Steel), 12 Ga (Stainless Steel)
Roll Diameter4.75"
Min Bending Diameter6"
Pre-bend0.12"
Rolls Speed (ft/min)20
Rolls Opening.5"

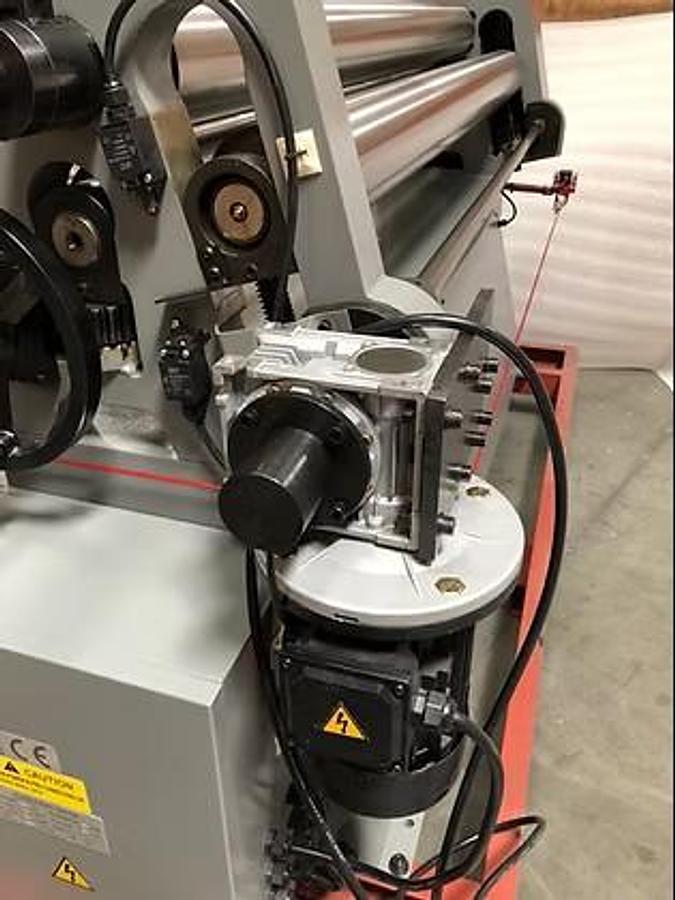

Main Motor3 HP, 220V, 3 Phase
Weight3050 LBS.
Overall Dimensions96" X 32" X 52"
