8' x 10 ga. GMC PBR-0810E Power Bending Roll

8' x 10 ga. GMC PBR-0810E Power Bending Roll

Location:Santa Ana, CA

orCall (714) 545-0940

Equipped With

Standard Equipment:

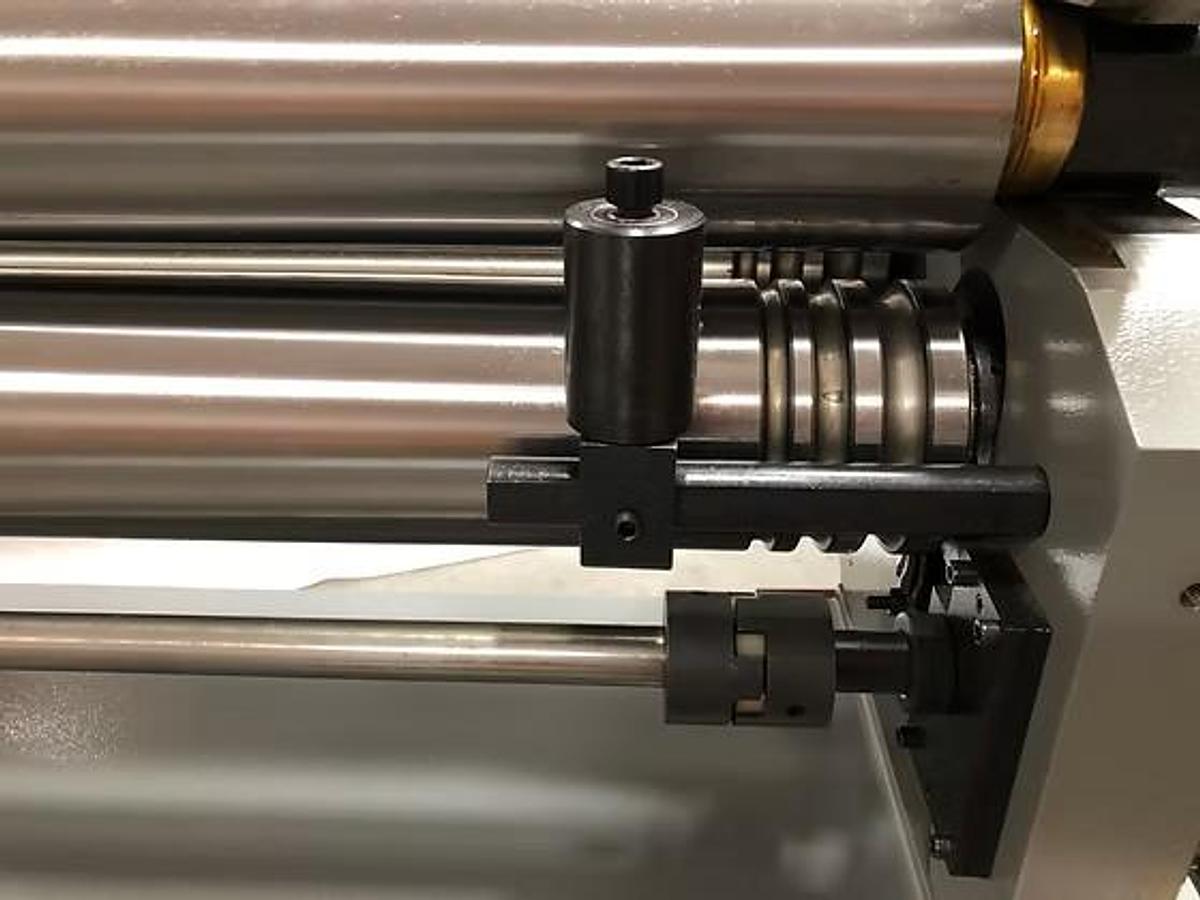

  • Adjustable cone attachment

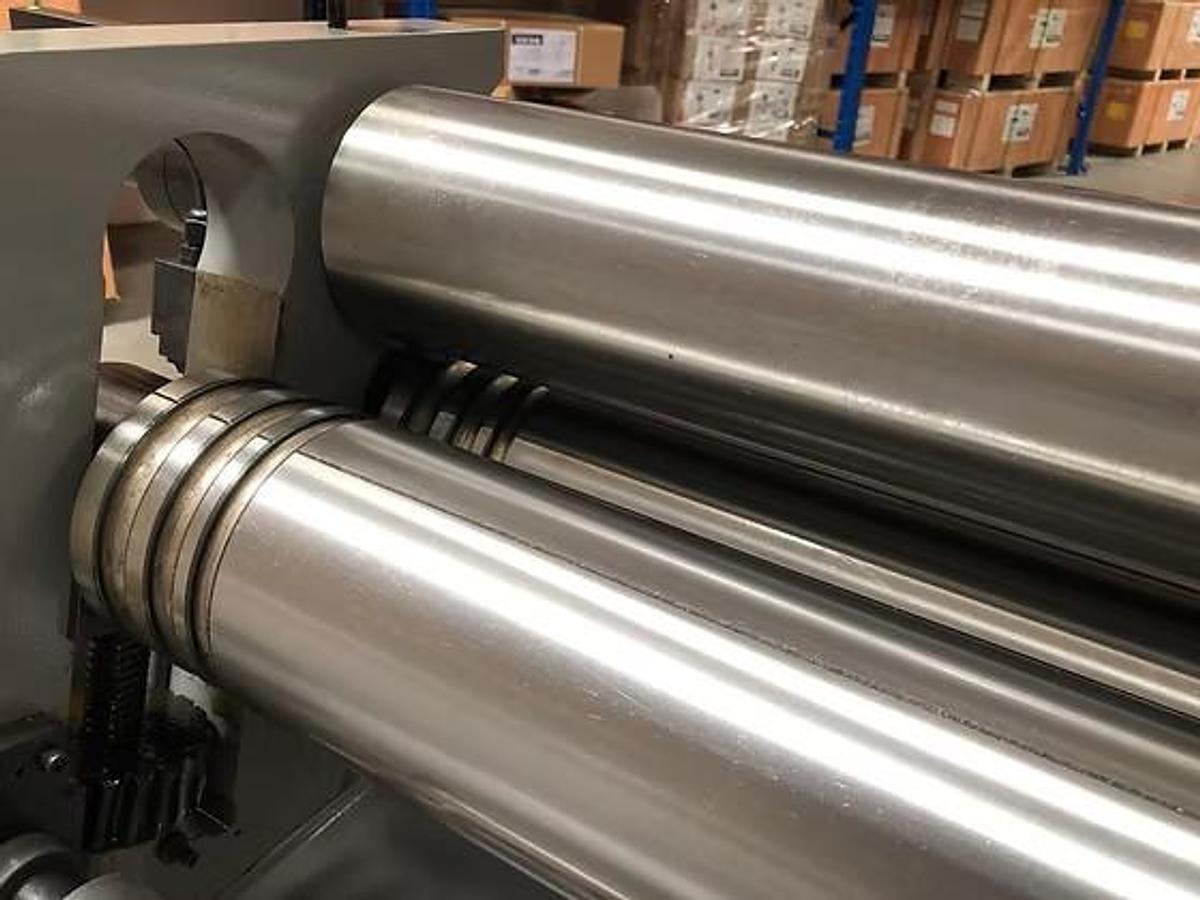

  • 3/8”, ½” and 5/8” grooves on rollers
  • All (3) hardened rolls
  • Removable safety foot pedal
  • Operation & parts manual
  • Orange color front cover is optional.

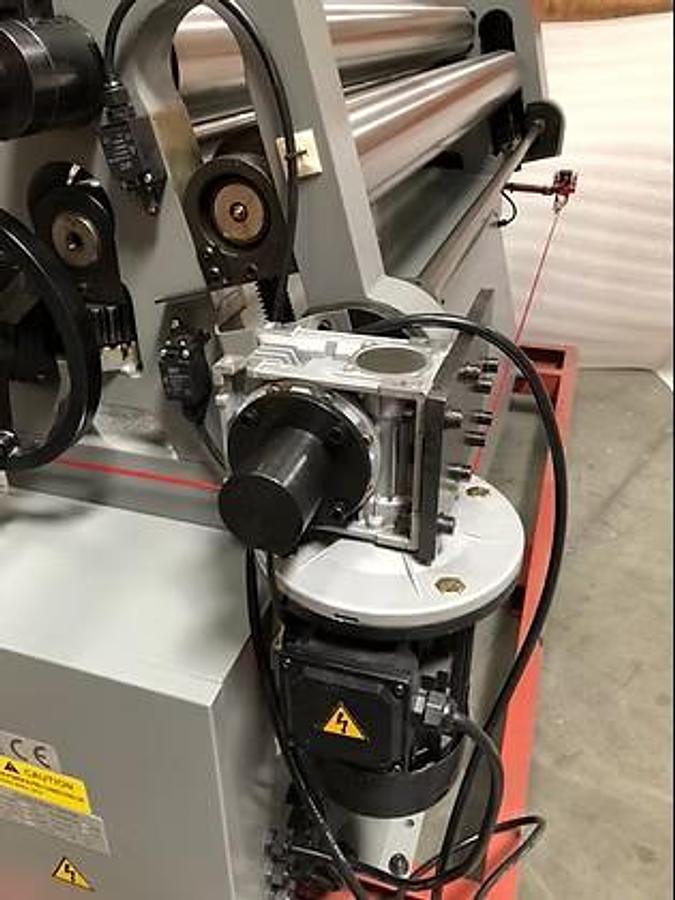

  • E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs

Standard Features:

  • SO 9001 certified
  • All (3) rolls are hardened rolls, up to 50-52 HRC
  • 3-rollers are driven to perform high accuracy
  • Adjustable cone attachment included
  • 3/8”, ½” and 5/8” grooves on rollers

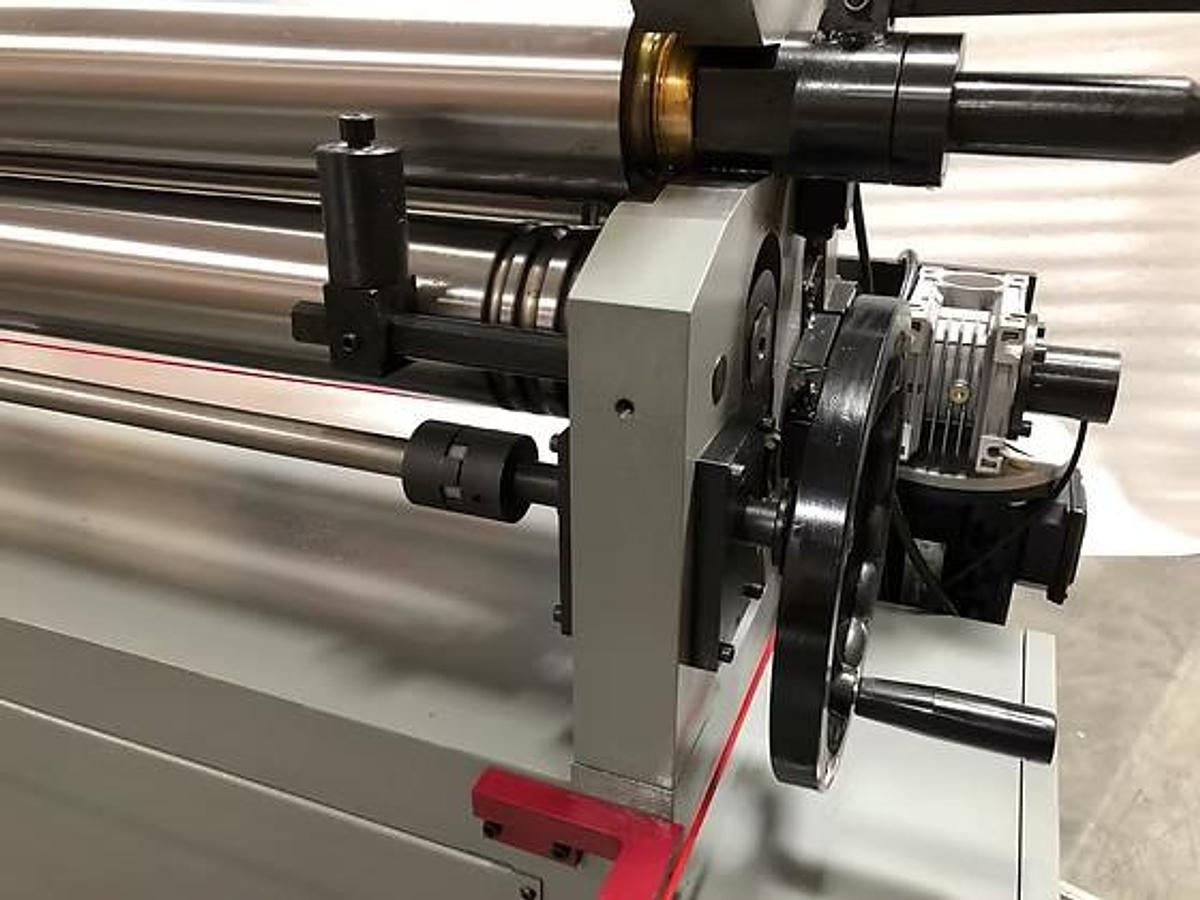

  • One wheel one-side operated for bending roll
  • One wheel one-site operated for pinch roll (E model is powered)
  • Heavy duty casting frame
  • Heavy duty all steel welded construction
  • 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
  • Quiet running operation
  • Easy swing-out top roller
  • Safety line all around the machine for emergency stop
  • All rolls run forward and reverse
  • Safety type forward/reverse foot pedal
  • Power source 220V, (option: 440V, 3 phase)
  • One year industrial warranty for parts
  • Free Phone support for lifetime of machine (original owner)


Specifications

ManufacturerGMC Machine Tools
ModelPBR-0810E
ConditionNew
ProductPlate Roll, Electric
Max Bending Length8'
CapacityMild Steel 10 Ga, Stainless Steel 14 Ga, Aluminum 1/4"
Roll Diameter6"
Min Bending Diameter8"
Pre-bend0.12"
Rolls Speed (ft/min)17
Rolls Opening0.5"
Main Motor4HP
Weight4,550 lbs
Overall Dimensions132" x 35" x 56"H
